Key Features
- 8" Long-throw Driver
- Dual 8" Bass Radiators
- Class D - 200W RMS Amplifier (500W Peak)
- Frequency Response (+/- 3db) 35 Hz → 200 Hz
DN8’s unique 3XR Architecture™ means it performs louder and clearer than other 8” subwoofers.
3XR™ Architecture
Descend’s unique 3XR Architecture provides triple the bass-producing surface area of a traditional ported subwoofer. This extra surface area moves more air, resulting in massive low end. And because 3XR doesn’t use ports, it also provides crystal-clear sound with no port noise distortion.
Passive Radiators
As the core technology behind Descend’s 3XR Architecture, its passive bass radiators enable the DN8 to play as loud and low as a 10” ported sub without unwanted port noise distortion. Passive radiators also deliver a smooth frequency response like a sealed sub, but with the port-like ability to play louder and lower in a smaller enclosure.
What you get is the best of both worlds: louder, clearer bass then a ported sub from a smaller enclosure than a sealed sub.
Powerful Amplification
The DN8 is equipped with a 500-watt peak custom Class D digital amplifier, designed to get the most out of the DN8’s 3XR Architecture. This custom amplification provides the Descend DN8 enough power and efficiency to play as low as 35Hz from a one-foot wide box.
Custom Class D Digital Amplification
Because the DN8 Class D amplifier is so efficient, little power is wasted as heat, and its entire output is dedicated to providing significantly smoother bass and greater impact. This allows the DN8 subwoofer to blend naturally into any audio system while producing greater volume and impact than competitive designs.
Control & Customisation
You can customise the DN8 to the needs of your application, system and space. The DN8 features built-in controls for variable volume, low pass filter and phase (0/180°) for optimum bass levels and the ability to customise it to the specific needs of your system.

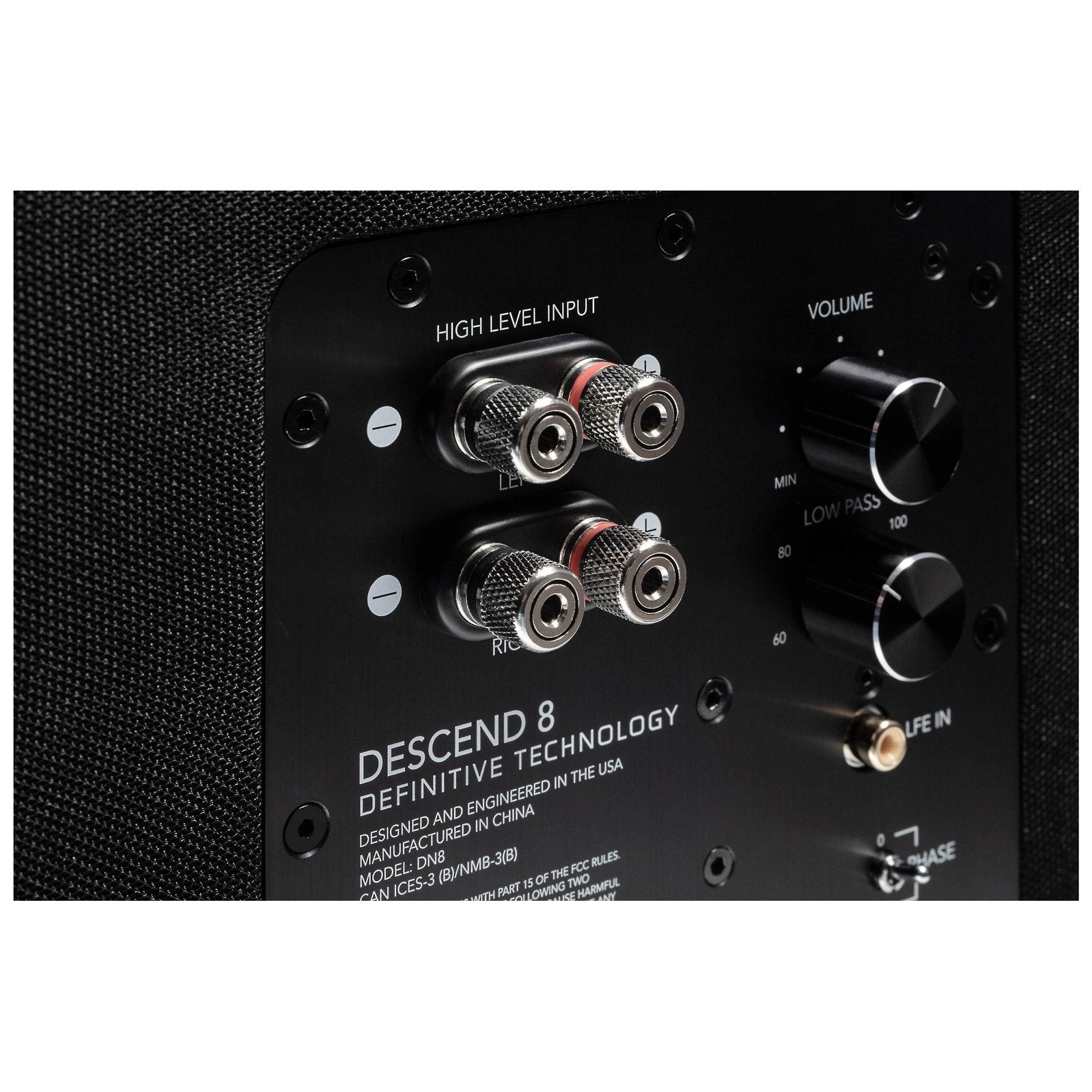

Back Panel Controls
Manually adjust DN8’s variable volume, low pass filter, and phase so it always sounds perfect within your system.
Variable Volume
Adjust the volume level of your subwoofer to ensure perfectly proportioned bass for your audio system and your room.
One, two, or four subs
While a single subwoofer can add bass and enhanced realism to any system, it may not provide consistent frequency response throughout the room.
When two or more subwoofers are properly employed throughout the room, sound waves disperse more evenly, flattening the frequency response. The result is smoother bass throughout the room, helping to eliminate boomy locations or dead spots.
Specifications
| Colours |
Glacier White & Midnight Black |
| Transducers |
8” long-throw woofer |
| Passive Radiators |
Dual 8” 3XR™ Configuration |
| Bass Type |
Bass Radiator |
| Feet |
Permanently Installed Feet with Rubber Pad |
| Dimensions |
12.8” x 12.0” x 13.1”324.8 x 305.8 x 331.6 mm |
Performance
| Amplifier Type |
Class D |
| Peak Power |
500W |
| Continuous (RMS) |
200W |
| Frequency Response (-/+ 3dB) |
35 Hz → 200 Hz |
| Low-Pass Crossover Freq |
60 Hz → 120 Hz |
| Phase Adjustment |
0 / 180° |
| Power Supply |
Internal
IEC 3 prong jack
120V/240V switch |
| Europe (<.5W Compliance) |
Yes |
Inputs
| LFE |
Single RCA |
| Speaker |
Left/Right 5-way binding posts |
Controls
| Main Power |
Auto/Off |
| Volume Control |
Potentiometer w/ center detent |
| Low Pass Control |
Potentiometer w/ center detent |
| Phase Control |
2-way switch |
| Status RGB LED |
Yes |
