Key Features
- 10" Long-throw Driver
- Dual 10" Bass Radiators
- Class D - 200W RMS Amplifier (500W Peak)
- Frequency Response (+/- 3db) 30 Hz → 200 Hz

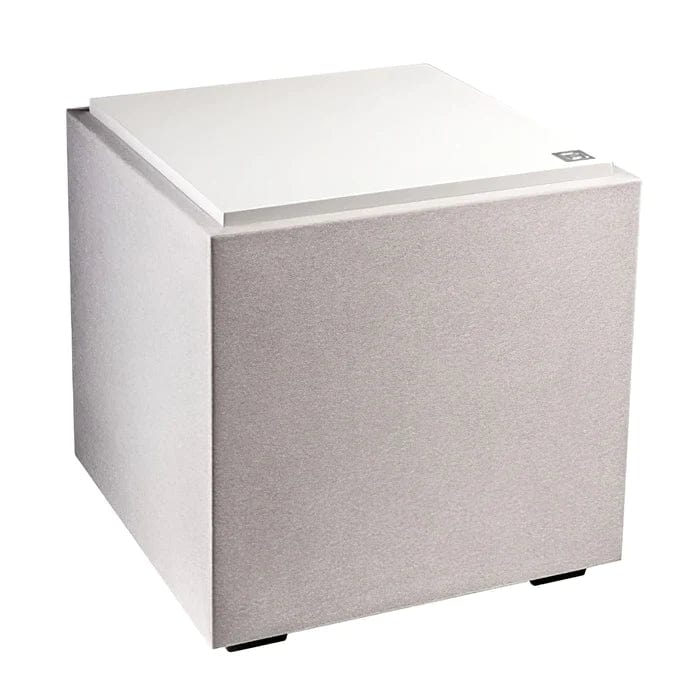

Massive, uncompromised bass performance, from our most powerful subwoofer ever. Unique technologies add unprecedented clarity, power and seamless system integration.
3XR™ Architecture
Descend’s unique 3XR Architecture provides triple the bass-producing surface area of a traditional ported subwoofer. This extra surface area moves more air, resulting in massive low end. And because 3XR doesn’t use ports, it also provides crystal-clear sound with no port noise distortion.
Passive Radiators
As the core technology behind Descend’s 3XR Architecture, its passive bass radiators enable the DN10 to play as loud and low as a 12” ported sub without unwanted port noise distortion. Passive radiators also deliver a smooth frequency response like a sealed sub, but with the port-like ability to play louder and lower in a smaller enclosure.
What you get is the best of both worlds: louder, clearer bass then a ported sub from a smaller enclosure than a sealed sub.
Powerful Amplification
The DN10 is equipped with a 500-watt peak custom Class D digital amplifier, designed to get the most out of the DN10’s 3XR Architecture. This custom amplification provides the DN10 enough power and efficiency to play as low as 28Hz without taking up a ton of space.
Custom Class D Digital Amplification
Because the DN10 Class D amplifier is so efficient, little power is wasted as heat, and its entire output is dedicated to providing significantly smoother bass and greater impact. This allows the DN10 subwoofer to blend naturally into any audio system while producing greater volume and significantly deeper impact than competitive designs.
Control & Customisation
You can customise the DN10 to the needs of your application, system and space. The DN10 features built-in controls for variable volume, low pass filter and phase (0/180°) for optimum bass levels and the ability to customise it to the specific needs of your system.

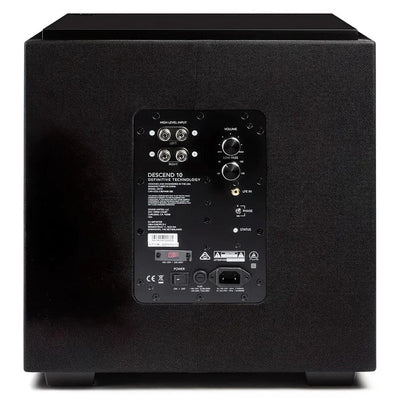

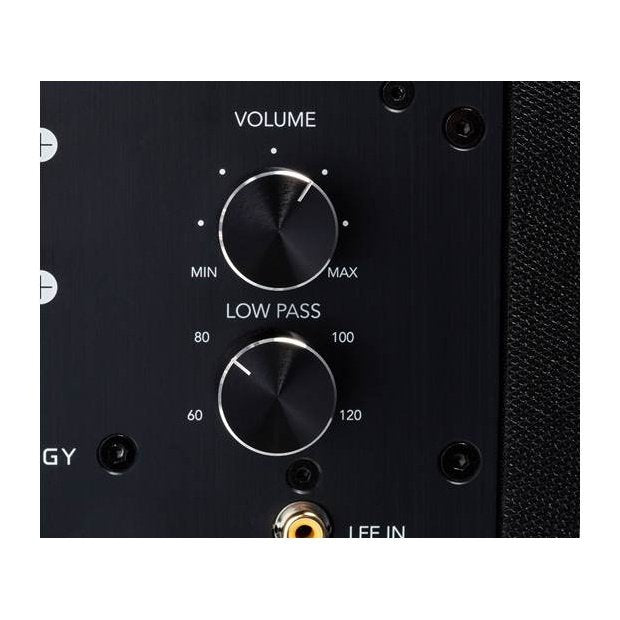

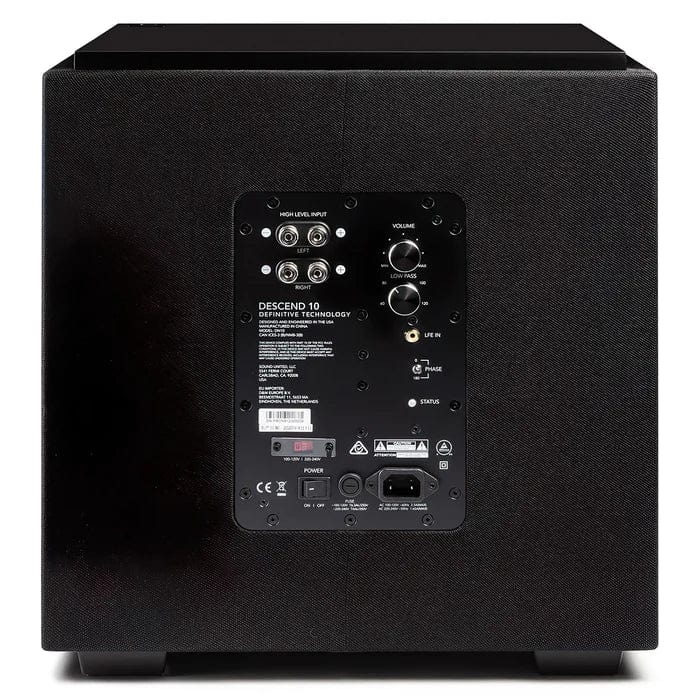

Back Panel Controls
Manually adjust DN10’s variable volume, low pass filter, and phase so it always sounds perfect within your system.
One,Two or Four Subs
While a single subwoofer can add bass and enhanced realism to any system, it may not provide consistent frequency response throughout the room.
When two or more subwoofers are properly employed throughout the room, sound waves disperse more evenly, flattening the frequency response. The result is smoother bass throughout the room, helping to eliminate boomy locations or dead spots.
Specifications
| Colours |
Glacier White & Midnight Black |
| Transducers |
10” long-throw woofer |
| Passive Radiators |
Dual 10” 3XR™ Configuration |
| Bass Type |
Bass Radiator |
| Feet |
Permanently Installed Feet with Rubber Pad (no leveling) |
| Dimensions |
16.8” x 16.0” x 17.1”
425.4 x 407.4 x 433.2 mm |
Performance
| Amplifier Type |
Class D |
| Peak Power |
500W |
| Continuous (RMS) |
200W |
| Frequency Response (-/+ 3dB) |
30 Hz → 200 Hz |
| Low-Pass Crossover Freq |
60 Hz → 120 Hz |
| Phase Adjustment |
0 / 180 |
| Power Supply |
Internal
IEC 3 prong Jack
120V/240V switch |
| Europe (<.5W Compliance) |
Yes |
Inputs
| LFE |
Single RCA |
| Speaker |
Left/Right 5-Way binding posts |
Controls
| Main Power |
Auto/Off |
| Volume Control |
Potentiometer w/ centre detent |
| Low Pass Control |
Potentiometer w/ centre detent |
| Phase Control |
2-way Switch |
| Status RGB LED |
Yes |
