An intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan.
The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory. The system is housed in a solid aluminium construction that takes up one rack units of space (1U). Each aluminium frame is anodised with a light-brush finish, then the corners CNC-machined and edges symmetrically cut for a high-end professional appearance. This model holds three custom-engineered dual-ball bearing fans rated at 67,000 hours, and certified by CE and RoHS.

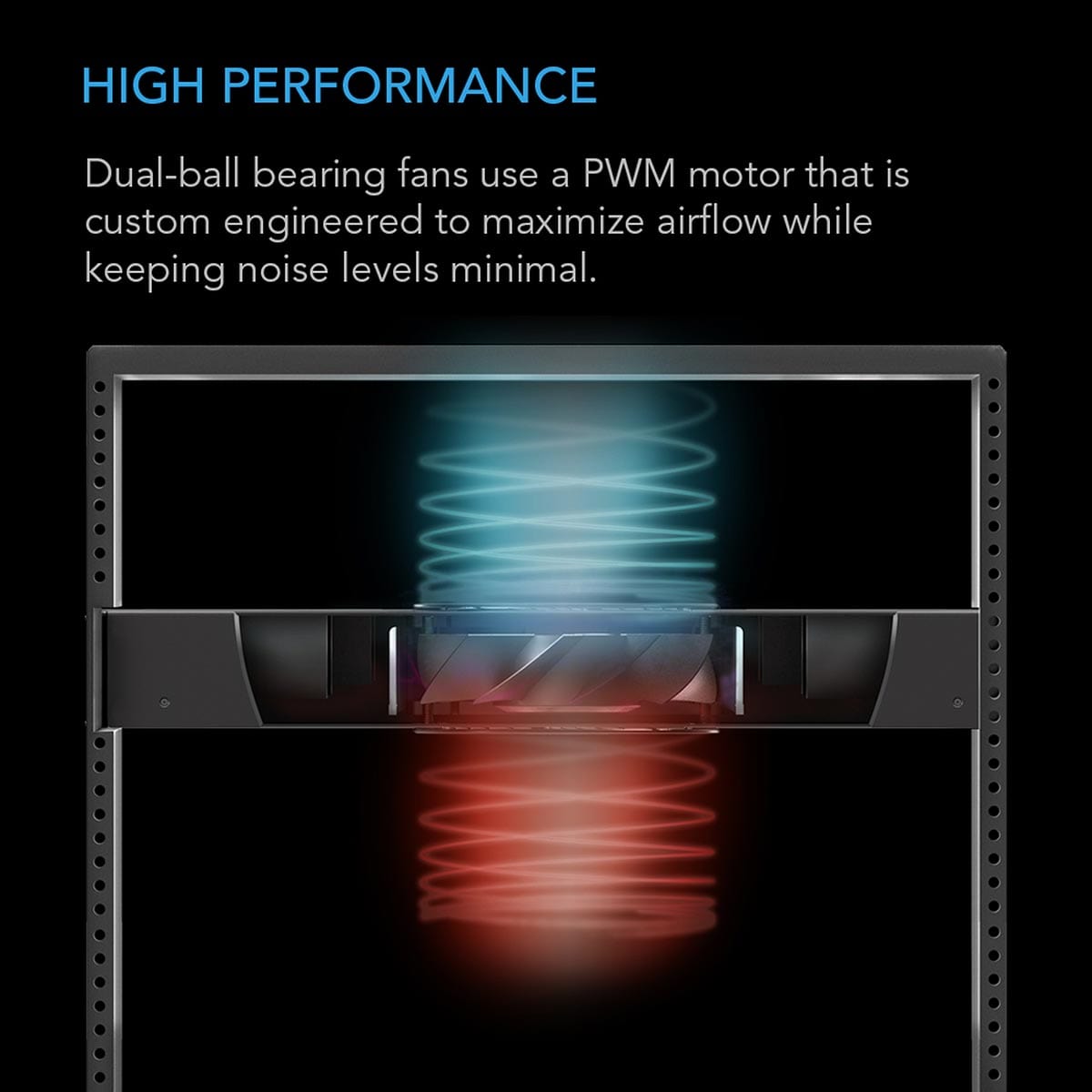

The fans are set to move air upwards vertically, accelerating the natural convection of rising heat. This complete kit includes the 1U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power plug cord.
- An intelligent fan system designed for cooling audio video, DJ, server, network, and IT equipment racks.
- Protects rack-mount equipment from overheating, performance issues, and shortened lifespans.
- Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
- Premium anodised aluminium construction with CNC-machined detailing for a professional appearance.
- Size: 1U Rack Space
- Design: Top Exhaust
- Airflow: 60 to 300 CFM
- Noise: 12 to 38 dBA
- Bearings: Dual Ball

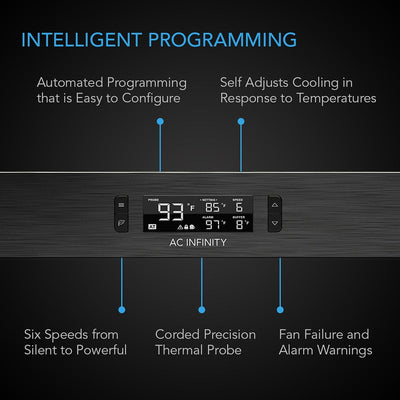

Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit is an expansion port that can control another CLOUDPLATE unit or an AC Infinity rack roof dual-fan kit.
Performance and Applications
This 1U rack cooling system features programmable fan speed control, enabling it to work for a wide range of rack mount applications. With a noise level that can reach 8 dBA, the fan system can be used for environments where low or minimal noise is required such as home theatre, studio, DJ, and audio video racks. A max airflow rating of 300 CFM will provide sufficient cooling to server, network, IT and equipment racks requiring high airflow. This fan system contains premium dual-ball bearings, allowing it to be mounted horizontally or vertically.

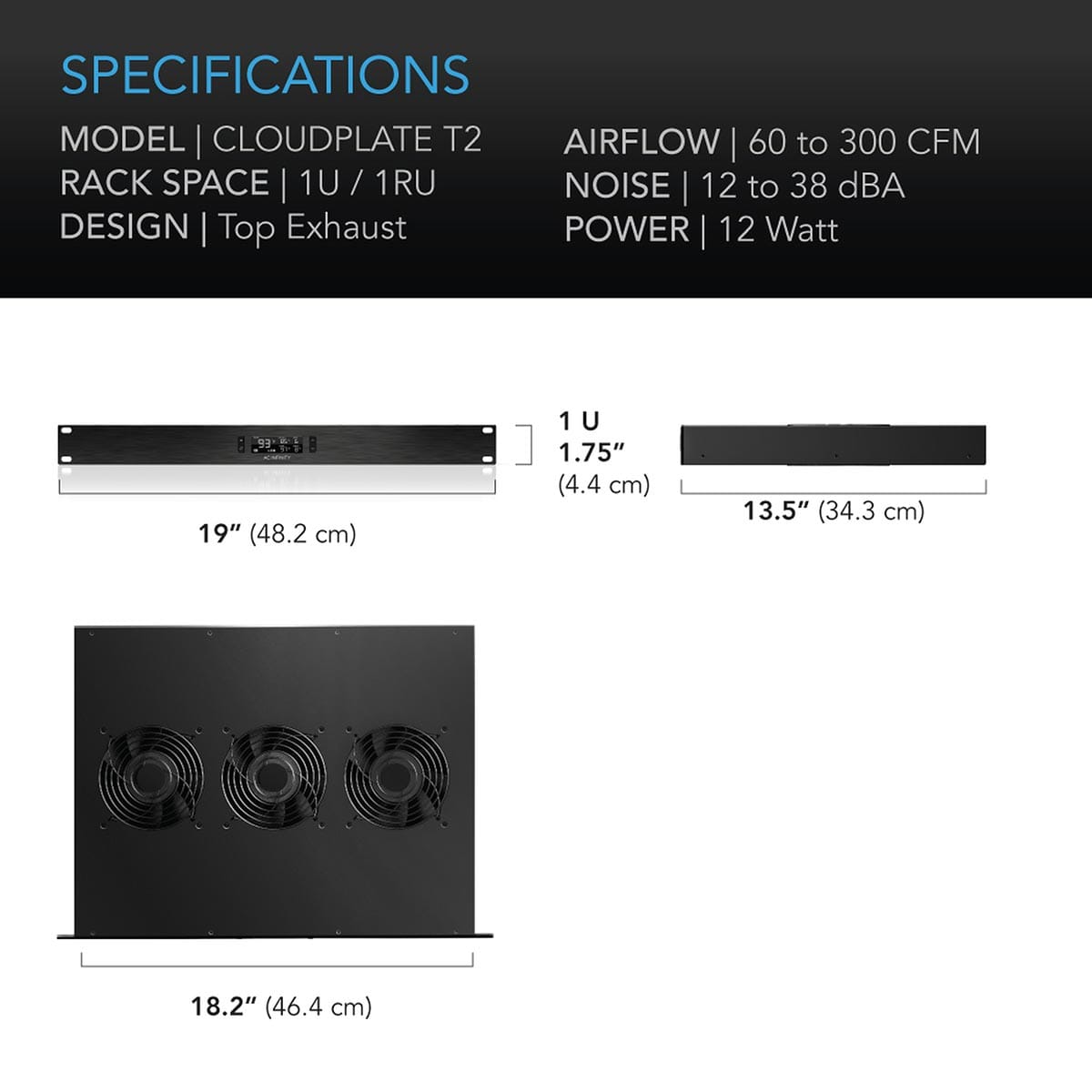

|Product and Mounting Dimensions|
|Total Dimensions||48.2 x 4.4 x 34.3 cm (19.0 x 1.75 x 13.5 in.)|
|Rack Mount Size||One Rack Unit (1U)|
|Screw Hole Size||Ø 6.1 x 9.0 mm (Ø 0.24 x 0.35 in.) Obround|
|Hole to Hole Distance||46.4 x 3.175 cm (18.2 x 1.25 in.)|
|Display Size||4.7 x 1.9 cm (2.25 x 0.75 in.)|
|Probe Length||183 cm (6 feet)|
|Cord Length||183 cm (6 Feet)|
|Product Performance and Technical Specs|
|Total Airflow||60 to 300 CFM|
|Total Noise||12 to 38 dBA|
|Static Pressure||2.56 mm-H2O|
|Operating Voltage||12 V DC|
|Wall Adapter Input||100 to 240 V AC|
|Operating Humidity||35 to 85% RH|
|Operating Temperature||0 to 158°F|
|Fan Bearings||Dual Ball|
|Mounting Positions||Horizontal or Vertical|
|L10 Life Expectancy||67,000 Hours|
