MiniDSP UMIK-2 Calibration Microphone USB For Dirac REW

MiniDSP  /  Calibration Equipment

UMIK-2

$419.00
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

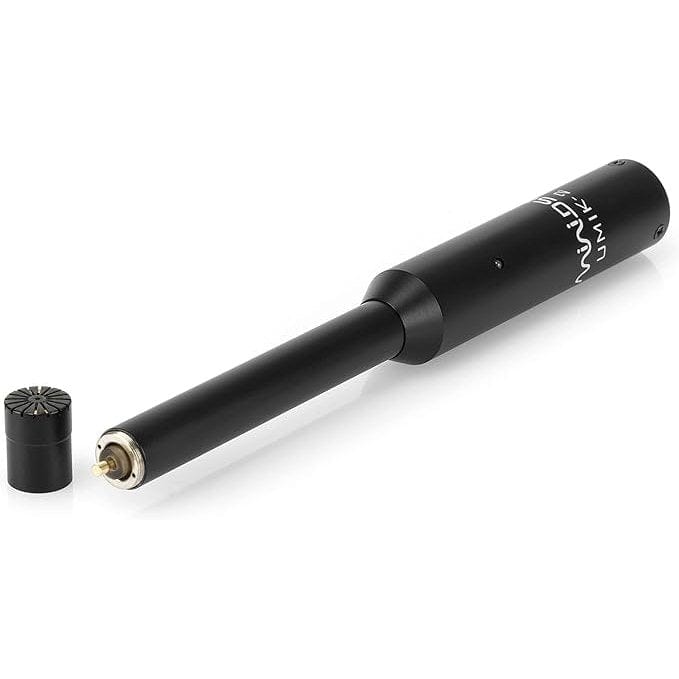

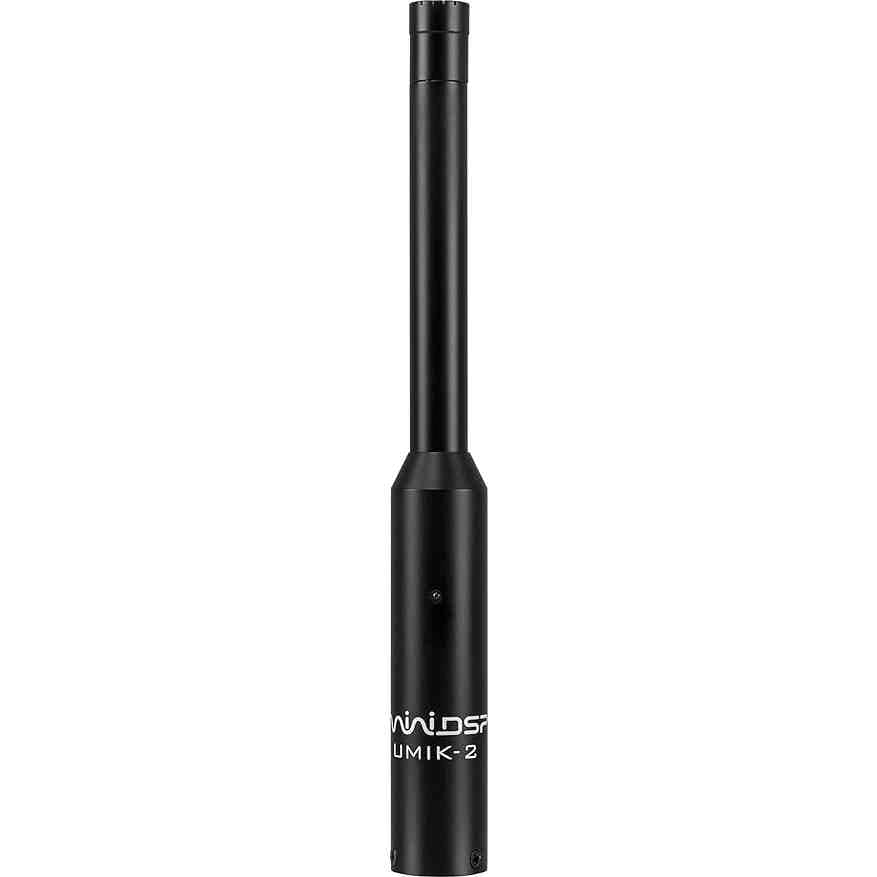

Introducing MiniDSP's second-generation UMIK-2, the omni-directional acoustic measurement microphone with a 1/2-inch capsule, low noise floor, and a unique calibration file for each individual device.

Enjoy plug-and-play convenience with a USB connection and superior accuracy with the 32-bit ADC built into the microphone shell. The UMIK-2 offers selectable sample rates of 44.1 to 192 kHz, ensuring compatibility with a variety of measurement and recording software.

It is fully compatible with industry-standard programs such as REW and Dirac Live, and can be easily integrated into other applications on macOS, Linux, Android, and iOS. With the UMIK-2, MiniDSP continues to push the boundaries of affordable and high-quality acoustic measurement technology.

Begin your measurement journey today!


Features

  • USB Audio Reference Measurement Microphone
  • Unique calibration file for each microphone
  • 1/2" capsule on 60 UNS thread
  • 32bit 44.1~192kHz recording, Custom Windows ASIO drivers and Plug&Play on Linux/Mac OSx
  • Low noise floor preamps, 120DR ADC
  • Plug&Play compatible with wide range of software, including REW & Dirac Live platforms

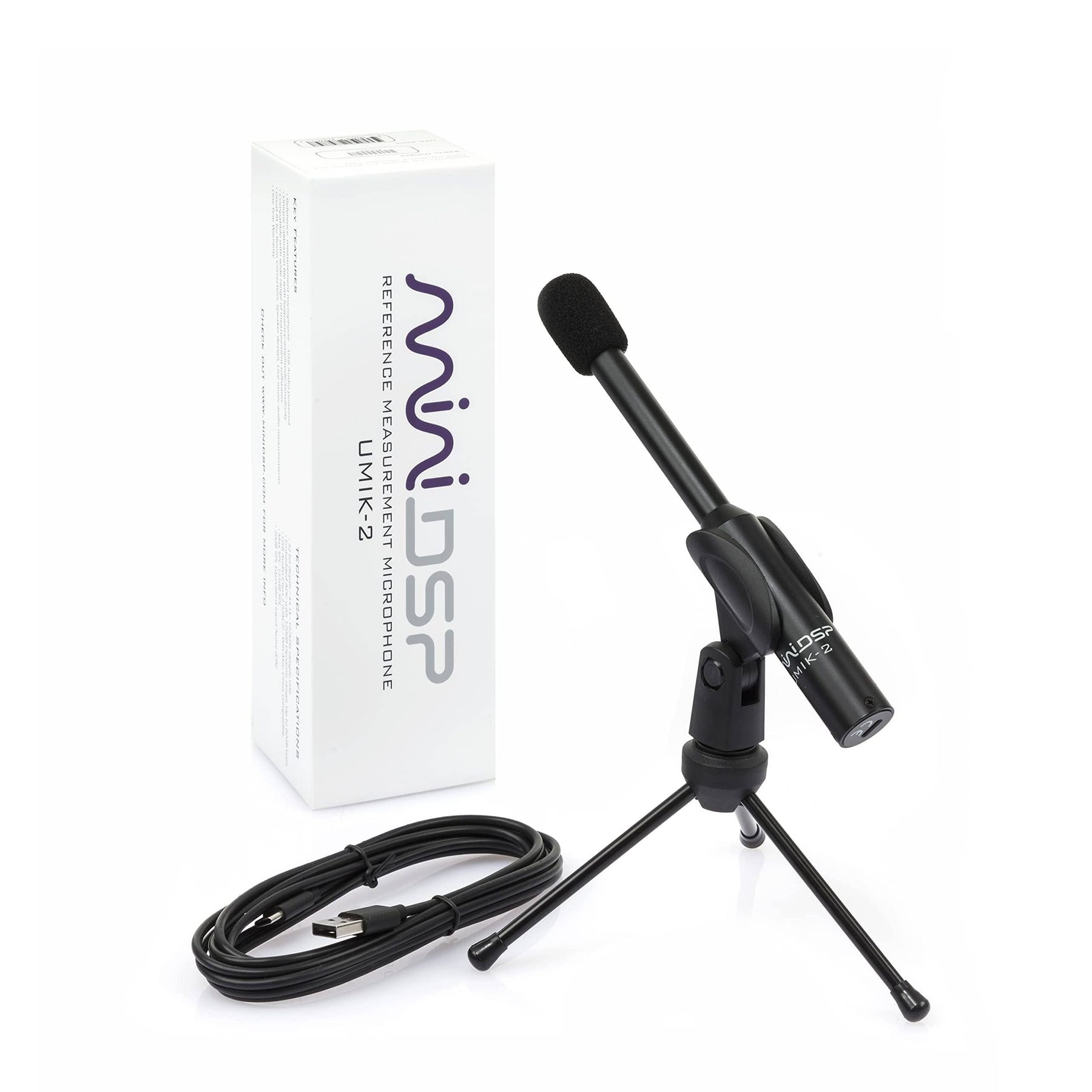

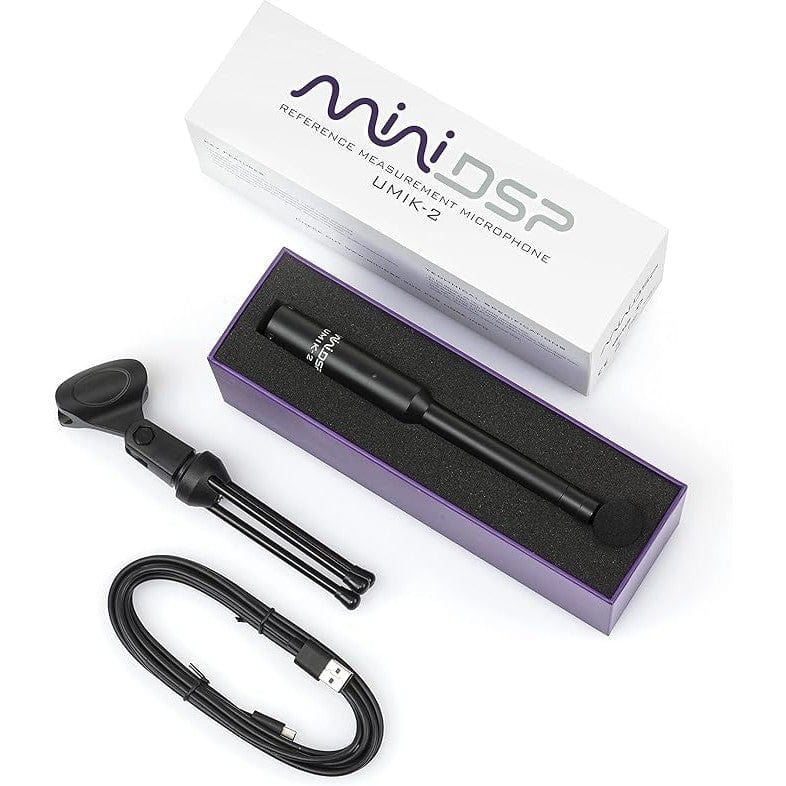

What's in the box?

  • 1 x UMIK-2 microphone
  • 1 x shielded USB Type C cable (1.5m)
  • 1 x mini Tripod + Mic Clamp
  • 1 x foam wind screen

Which calibration file should I use and where to point the UMIK-2?

We provide two calibration files to be used depending on your application.

  • For stereo system (e.g. 2ch dirac live, single speaker measurement), use the 0deg file and point the UMIK-2 at the speakers
  • For multichannel system (E.g. 5.1/7.1) or a surround application where multiple speakers are spread out around the room, use the 90deg file and point the UMIK-2 at the ceiling.

Specifications

Item Description
USB Audio Controller XMOS 500MHz multicore processor, USB Audio Class 2 (UAC2)
ADC

32bit ADC with embedded PGA for up to 60dB analog gain
120dB SNR, Gain control via Mac/Win application
Capsules

1/2” Low noise Pre-polarized condenser on 60UNS thread
Sensitivity: -34 dBfs @ 0dB Gain (94 dB SPL. 1 kHz)
Noise level: -105.3dBfs (A) @ 0 dB gain
MAX SPL(0dBfs): 125dB SPL
Equivalent Input Noise (EIN): 20dB SPL @ 0dB gain
Connectivity USB 2.0 streaming, USB Type C connector
Software

As a standard USB audio microphone, UMIK-2 is compatible with any software. The following proven platforms with plug&play integration.
- Room EQ Wizard freeware for acoustic measurements
- Dirac Live Room Correction software
USB Audio

Mac OSx/Linux/Android Driverless
ASIO compatible driver for Windows via miniDSP's UAC2 drivers
iOS support with USB camera adaptor
Accessories

1 x miniTRIPOD with microphone clamp
1 x windscreen
1 x USB 2m long usb cable
Dimensions (W x D) / Weight 21 x 185 mm, 150g
Construction Aluminium body
