- Driver Size: 6.5”
- Passive Radiators: 6.5" x 2
- Amplifier Power: 1000W RMS (2000 Dynamic)
- Frequency Response: (± 3 dB): 38 - 120 Hz
With an updated Velodyne Acoustics exclusive distortion limited Digital Drive Control system algorithm you will get a tighter, more accurate bass reproduction.
DDCS is an active, signal-based system that assures linear cone movement and controls the driver’s frequency and distortion characteristics. DDCS reduces distortion to 1/6th that of competitive subwoofers.
We improved Velodyne Acoustics patented ERS (Energy recovery System) 2000 Watt dynamic power Class D digital amp for extreme output with very low distortion and better detailed bass performance on the complete frequency range. The upgraded Power supply allows better stability, more definition, extended dynamics and well defined bass on the lower end frequencies.
One active 6.5” driver in combination with two 6.5” passive radiators deliver a powerful, musical, floor rumbling bass for which Velodyne is world-famous.
Like all Velodyne Acoustics subwoofers, the MicroVeeTM MKII incorporates anti-clipping circuitry to limit amplifier clipping distortion, and Velodyne’s exclusive “Subwoofer Direct” feature that bypasses the internal crossover to assure optimum performance in any music or home theater system.
One active 6.5" driver (5" piston diameter) and two 6.5" passive radiators (5" piston diameter)

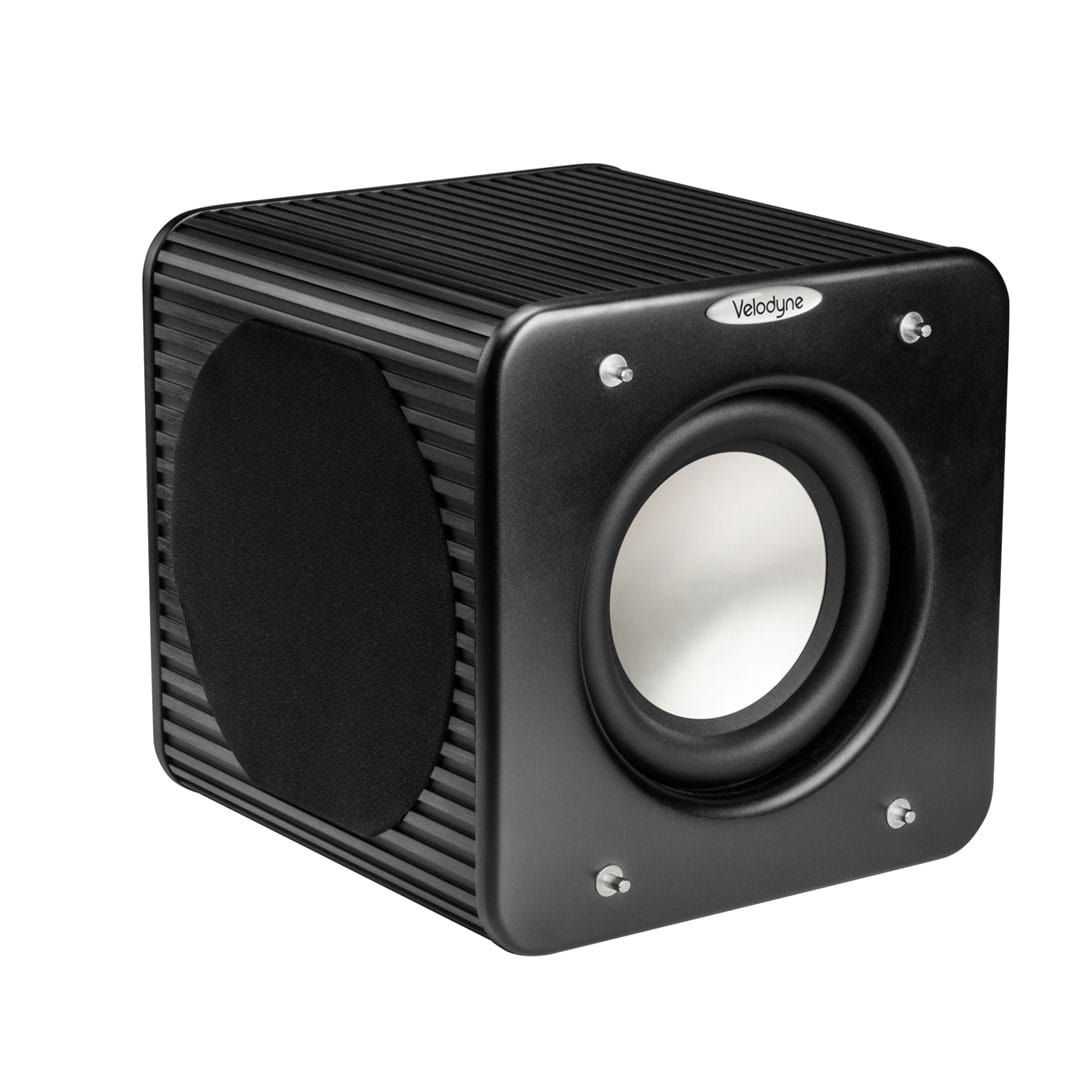

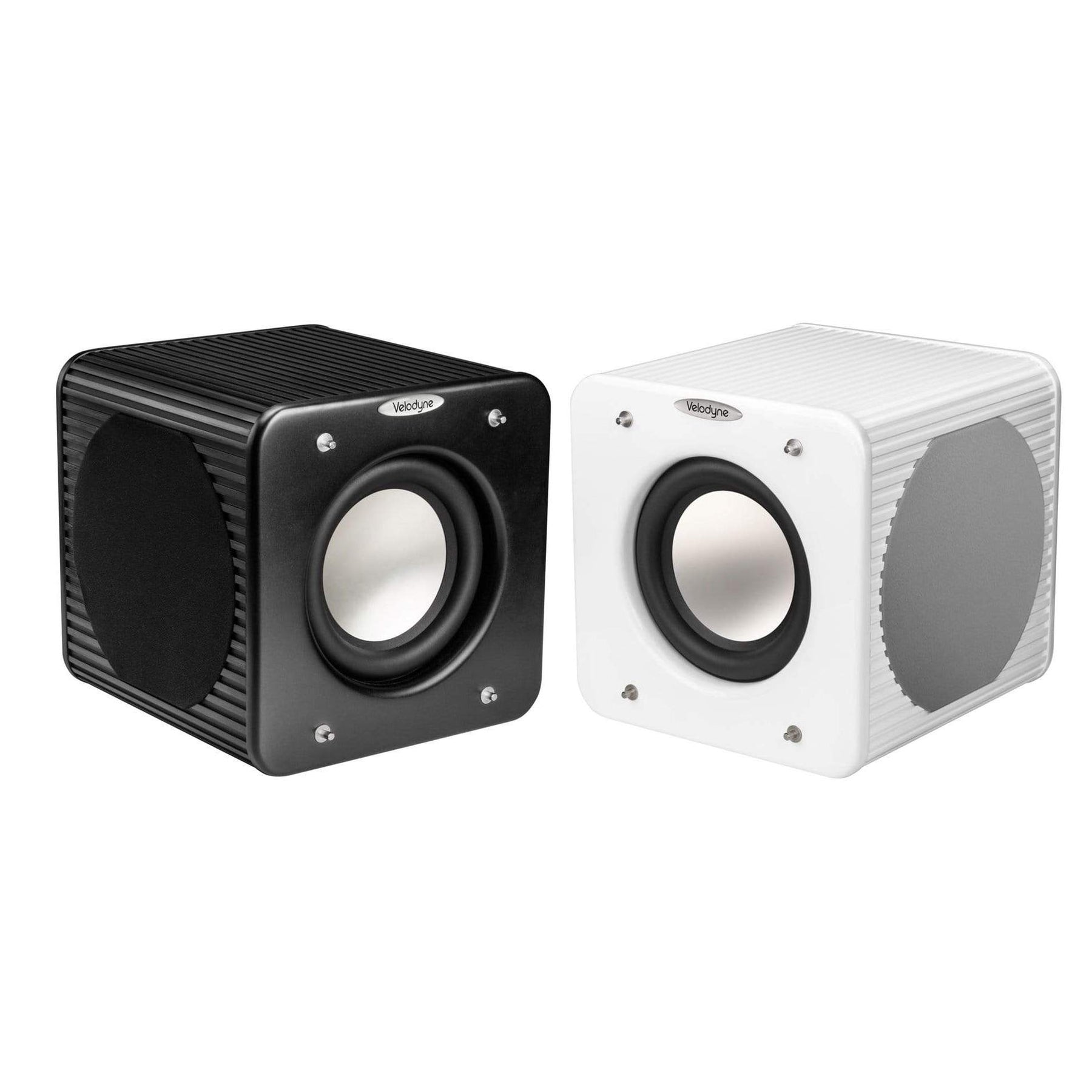

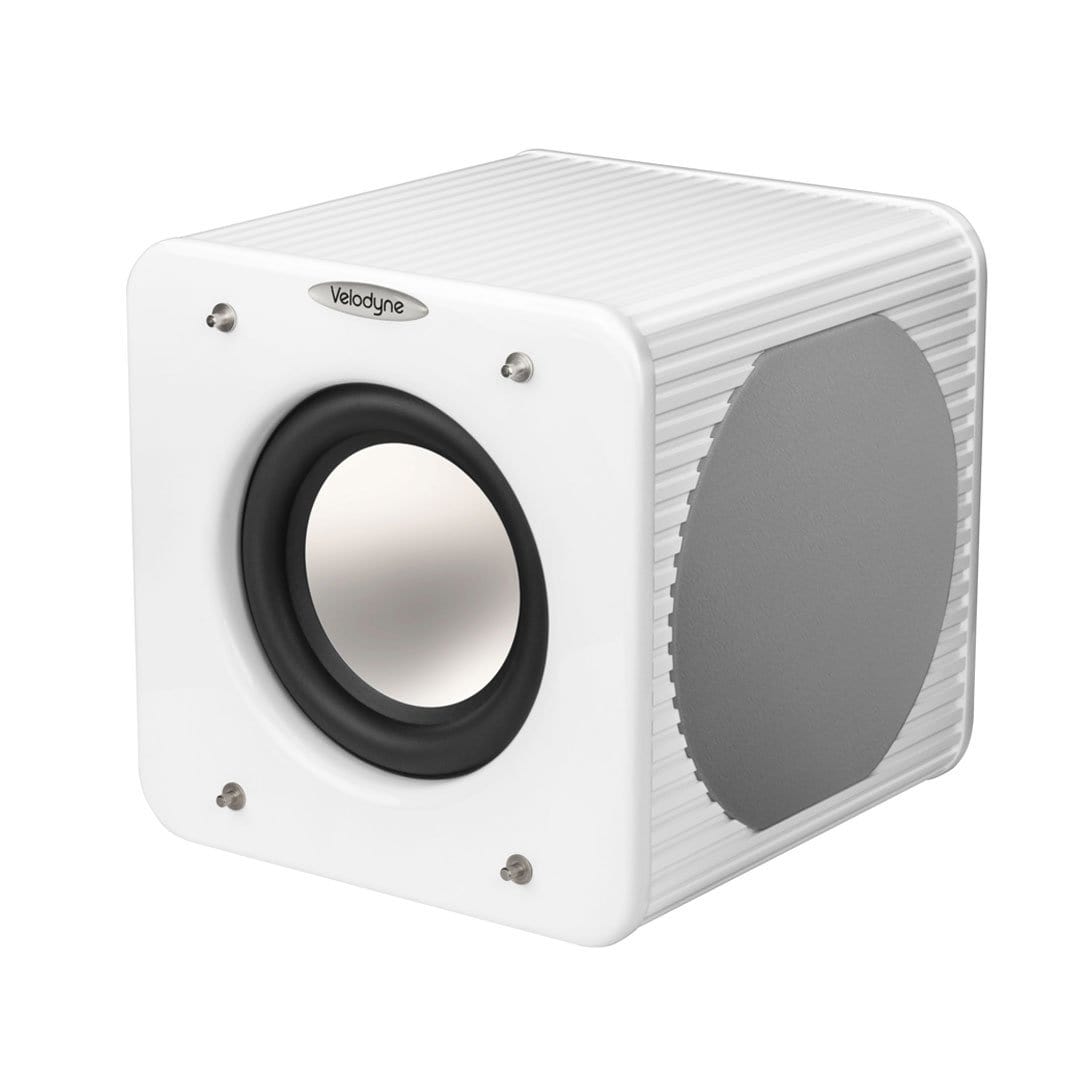

The MicroVee is the tiniest subwoofer Velodyne ever made at 9"x9"x9.6" HWD
Energy Recovery System
Patented Energy Recovery System amplifier with 2000 watts dynamic and 1000 watts RMS power.
Extruded Aluminum Cabinet
A ribbed extruded aluminum cabinet that dissipates heat built up
|Driver||1x Active 6.5” forward firing cone
2x Passive side-firing radiators
|Amplifier Class D||2000 watts dynamic
1000 watts RMS power
|Frequency Response: (± 3 dB)||38 - 120 Hz|
|THD||<1 % (typical)|
|Low Pass Crossover||50 Hz - 200 Hz (adjustable)
12dB octave, 48 dB ultimate
|Phase||0 or 180 degrees|
|Magnet Structure||1.8 Kgs.|
|Voice Coil||2" Dual Layer|
|Input LFE||Line level (RCA)|
|Input L&R||Speaker-level, mini-jack, and gold plated line-level|
|Output (L&R)||Speaker-level (120Hz high-pass crossover), mini-jack thru|
|Included Accessories||1/8th” (3.5mm) Audio cable|
|Dimensions (H/W/D) (includes feet and grill)||9" x 9" x 9.6"|
|Shipping Weight (approx)||9 Kgs|
