McLelland Mclelland SS26V 6-Way Speaker Selector with Volume Control Speaker Distribution
Mclelland SS26V 6-Way Speaker Selector with Volume Control
McLelland Mclelland SS26V 6-Way Speaker Selector with Volume Control Speaker Distribution
McLelland Mclelland SS26V 6-Way Speaker Selector with Volume Control Speaker Distribution
McLelland Mclelland SS26V 6-Way Speaker Selector with Volume Control Speaker Distribution

Mclelland SS26V 6-Way Speaker Selector with Volume Control

SS26V

Regular price$399.00
/

Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

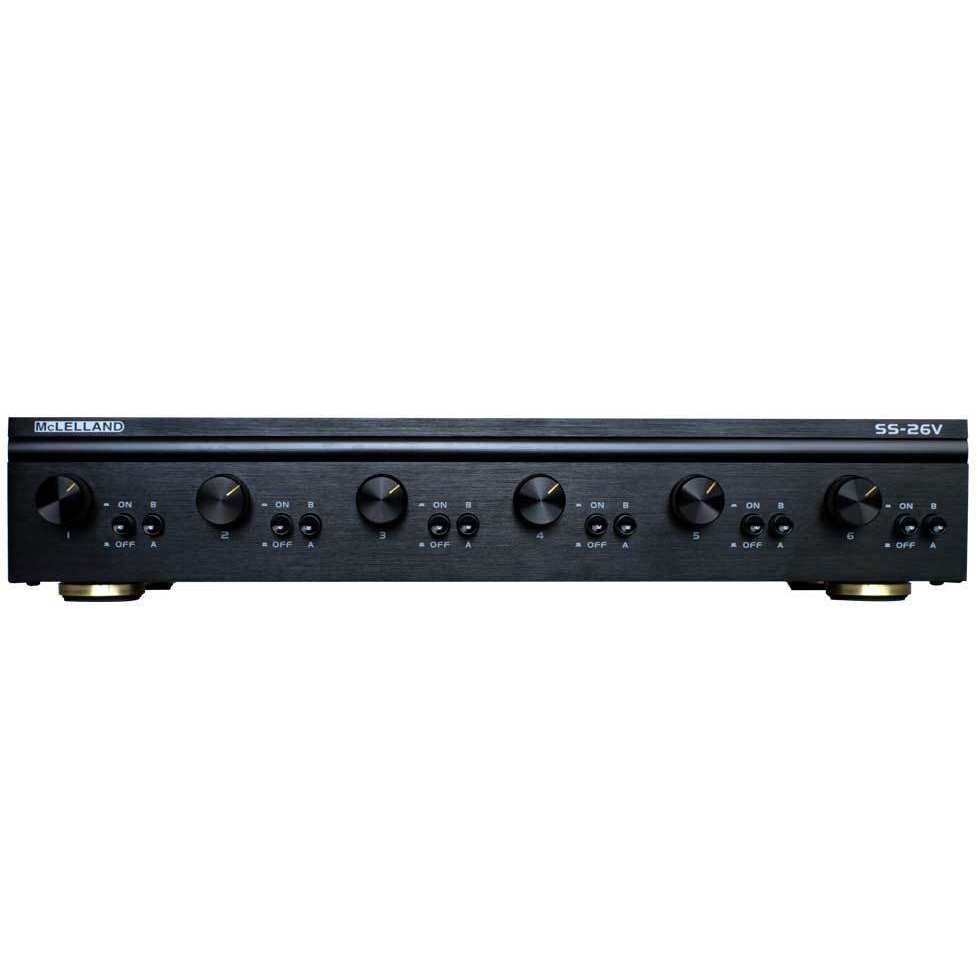

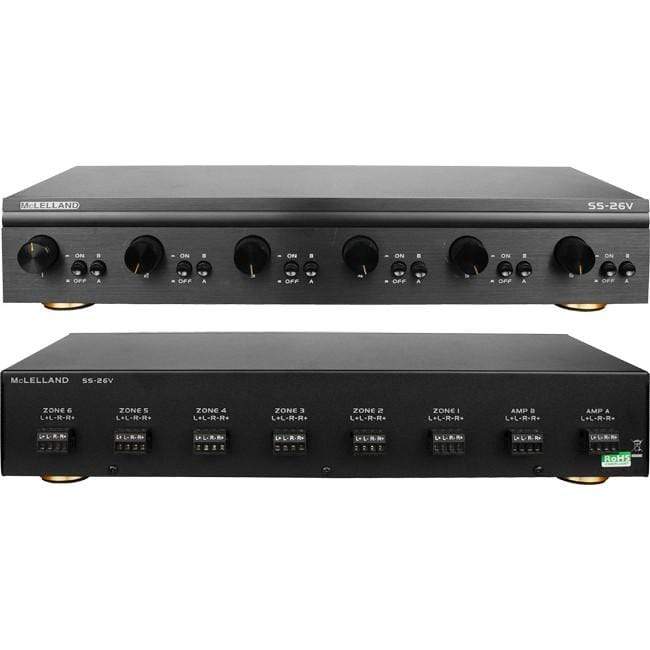

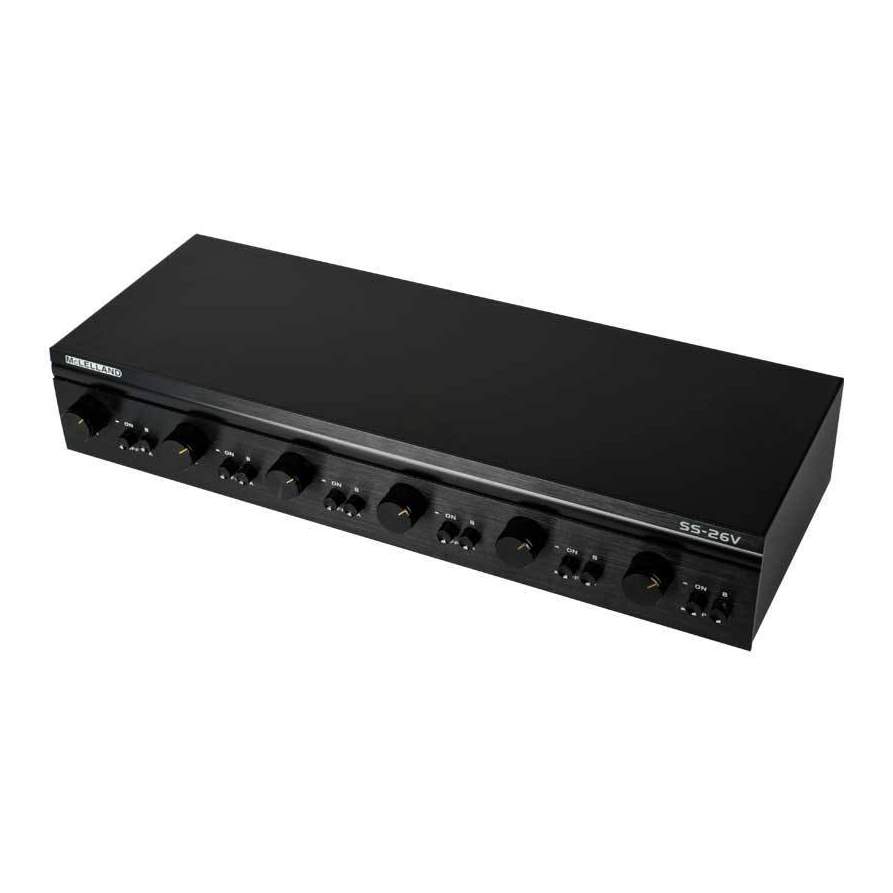

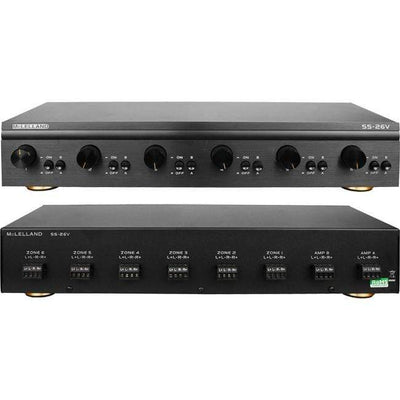

The SSV series Speaker Selectors are highly efficient dual-source speaker selectors that control pairs of speakers. The front panel provide a separate volume control for each speaker pair, allowing you to adjust the volume in each room from one convenient location. With two amplifier inputs, the SSV Series Speaker Selectors allow you to choose either program in each room. Each zone also has an on/off switch, which allows you to keep the volume control at a set level while turning the speakers on or off. The SSV series Speaker Selectors use high-quality impedance matching autoformers to maintain a safe operating load at the amplifier while distributing maximum power throughout your system. Designed for use with either 4 ohm or 8 ohm speakers, the SSV series products are equipped with internal jumpers to select the degree of impedance matching based on the impedance of your speakers and your amplifier's impedance requirements.

The independent A/B source enables the selection of two different amplifiers to anyroom in any combination simultaneously, all at varying volume levels. Ideal for both home and commercial installations.

Overview

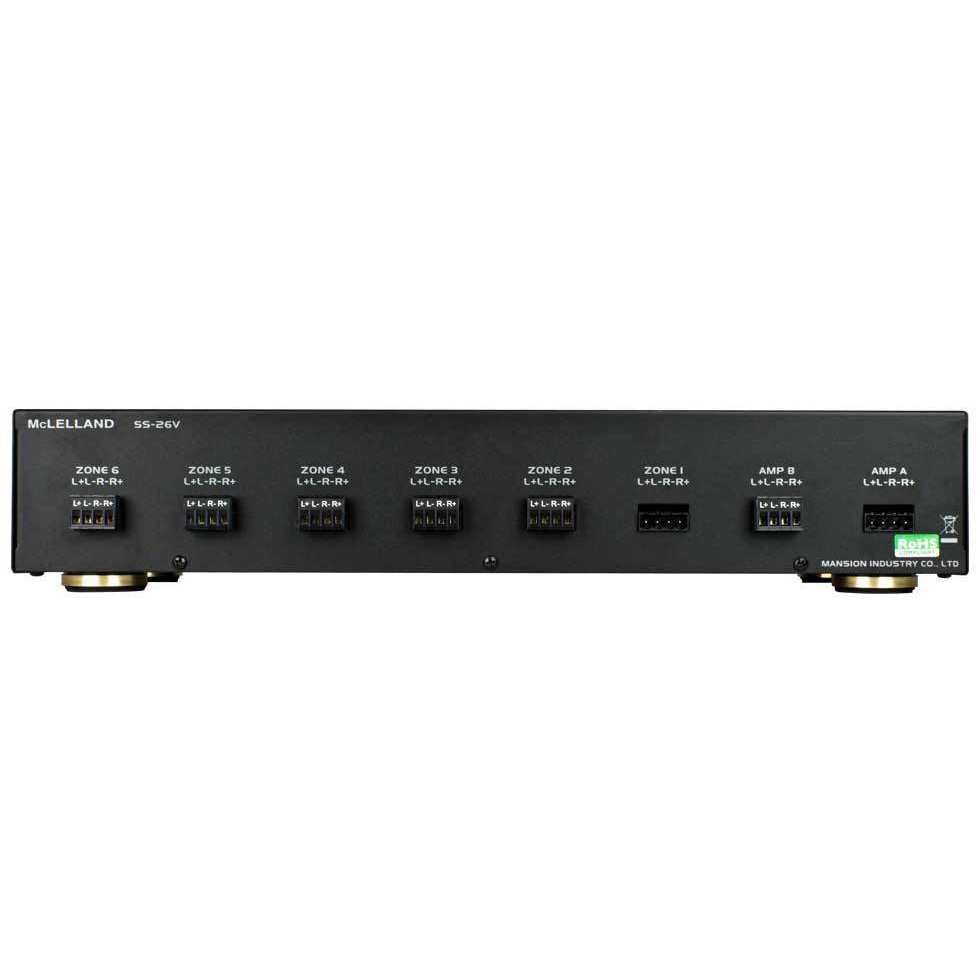

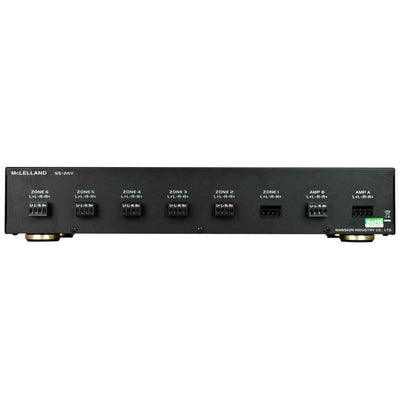

  • Dual amplifier sources inputs
  • 6 Zone outputs with separate on/off switch and source switch
  • Separate rotary volume control for each output
  • Accepts up to 12AWG spealer wire
  • Continuous (RMS): 150 watts per channel

Features

  • Dual amplifier sources inputs
  • 6 Zone outputs with separate on/off switch and source switch
  • Separate rotary volume control for each output
  • No external power supply required!
  • A/B source selection for each room independently to choose between two source amplifiers
  • Spring terminals for convenient speaker cable termination - accepts up to 12AWG cable
  • Full transformer based circuit for impedance matching
  • Full metal casing - extra heavy duty construction

Specifications

Continuous (RMS): 150 watts per channel
Average Power: 180 watts per channel
Peak Power: 200 watts per channel
Volume Control: 42 dB attenuation/ 12 positions
Impedance matching: Autoformers
Spring terminals: Accepts up to 12 gauge wire
Dimensions: 432 mm x 76mm x 159 mm
Weight: 4.5 kg
