Rotel RA-1572 Integrated Amplifier Silver - Ex-Demo

Condition Report:

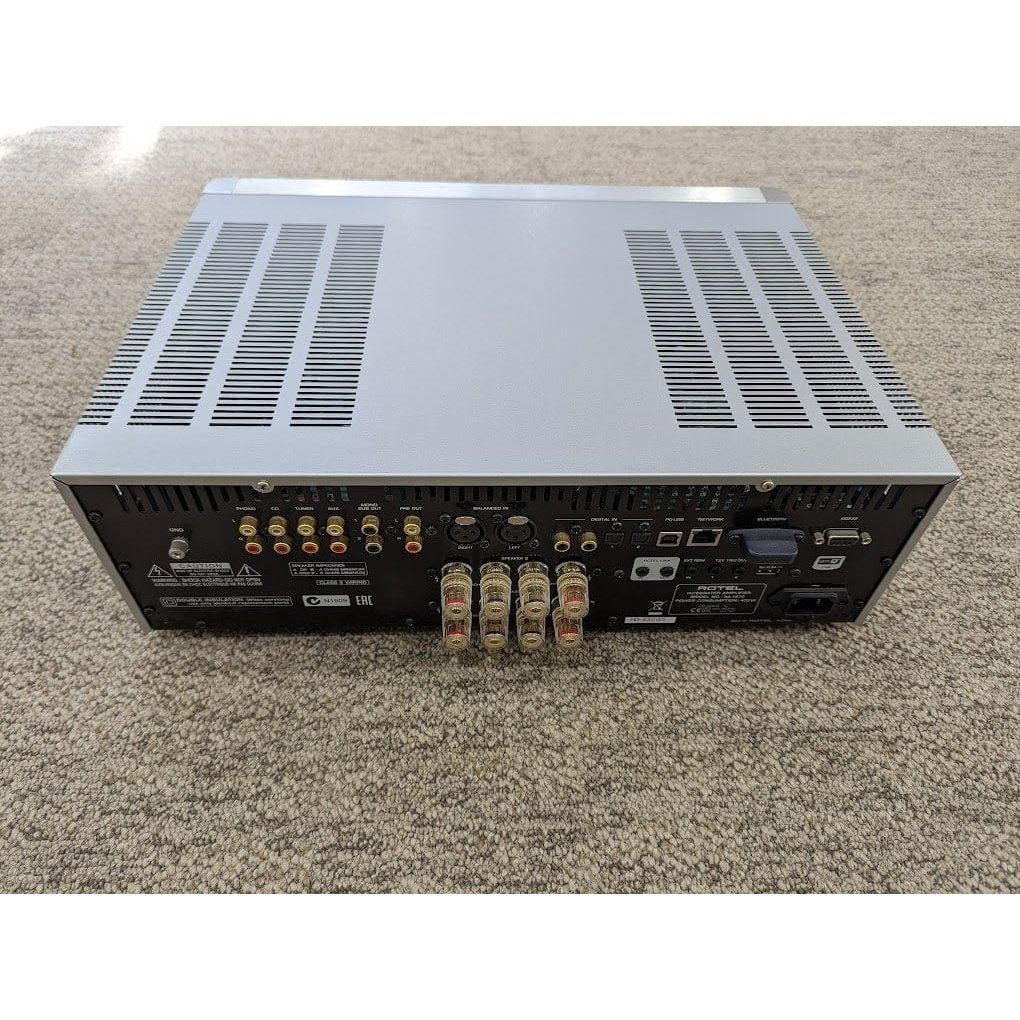

• Repacked, and hardly used display RA-1572. This unit has spent more time back in it's box, and at the back of a warehouse than anywhere else.
• The unit is great, practically new. The box is a little scuffed, but it's going to get thrown away eventually anyway.

Original Box: Yes - Shipping Included

Serial Number: FR017498301005068

Product Information:

As typical of Rotel amplifiers, the RA-1572’s circuitry draws on a high capacity power supply based on a Rotel custom designed and in-house manufactured oversized toroidal transformer. In addition to providing an abundance of voltage and current for all operating stages, the transformer’s toroidal shape helps prevent stray radiation patterns from corrupting audio signals as they pass through adjacent circuit stages.

Subsequent power supply segments built with tight-tolerance parts including T-Network capacitors provide the exact voltage and current requirements to ensure stress-free signal reproduction.

The RA-1572’s input section is substantially more flexible than that found in most integrated amplifiers. In recognition of the predominance of digital sources available today, the RA-1572 has a built-in state of the art 32-bit/768kHz AKM digital-to-analog converter (DAC) and analog stages of the highest quality. The DAC and surrounding circuitry supports a vast array of source inputs including DSD capable PC-USB (32-bit/384kHz). A front panel USB input is provided for easy connection of a wide variety of music storage devices including Apple iPods, iPhones, and iPads. The Bluetooth input supports aptX for superior performance with compatible devices. In addition, two each coaxial (RCA) and optical (TOSlink) inputs provide easy connections for LPCM music sources including popular streaming devices with up to 24-bit word lengths sampled at 192 kHz. Importantly, it is possible to fix the level and set an auto-on option with digital inputs for use with devices that provide their own volume control for convenient “hands-off” use. Analog inputs include a pair of balanced XLR connectors in addition to conventional RCA jacks.

The Class AB output stage uses discrete devices to ensure precise reproduction of all signals regardless of origin with virtually any loudspeaker. The power output, conservatively rated at a robust 120 watts per channel into 8 ohms, is substantial as it is a continuous “both channels driven simultaneously” rating fully in keeping with real-world requirements and Rotel’s tradition of providing extraordinary value. A mono subwoofer output is also provided.

User conveniences include two 12-volt triggers to control on/off operation of other components, a highly visible VFD display for set-up, internet-based software updates, as well as RS232 and IP control capabilities.

SPECIFICATIONS

CONTINUOUS POWER OUTPUT
120W/Ch (All channels driven, 8Ω)
TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.03% FREQUENCY RESPONSE
Line Level Inputs: 10Hz – 100kHz ±0.5dB
Digital Inputs: 10Hz – 90kHz ±2dB
Phono Input: 20Hz – 20kHz ±0.5dB
S/N RATIO (IHF “A” Weighted)
Line Level Inputs: 100dB
Digital Inputs: 100dBPhono Input: 80dB

DIMENSIONS (W × H × D)
431 × 144 × 358mm
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
400W
STANDBY POWER CONSUMPTION
<0.5W NET WEIGHT
13kg (29lbs.)

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)
<0.03% DAMPING FACTOR
300
SPEAKER IMPEDANCE
4Ω minimum
INPUT SENSITIVITY
Line Level Inputs (RCA): 270mV
Line Level Inputs (XLR): 440mV
Phono Input (MM): 2.1mV
INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
INPUT OVERLOAD
Line Level Inputs (RCA): 4V
Line Level Inputs (XLR): 5.5V
Phono Input: 32mV
PREOUT LEVEL
1.5V

OUTPUT IMPEDANCE
470Ω
TONE CONTROLS
±10dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 32/384)*
*Driver installation required
DSD and DoP support
