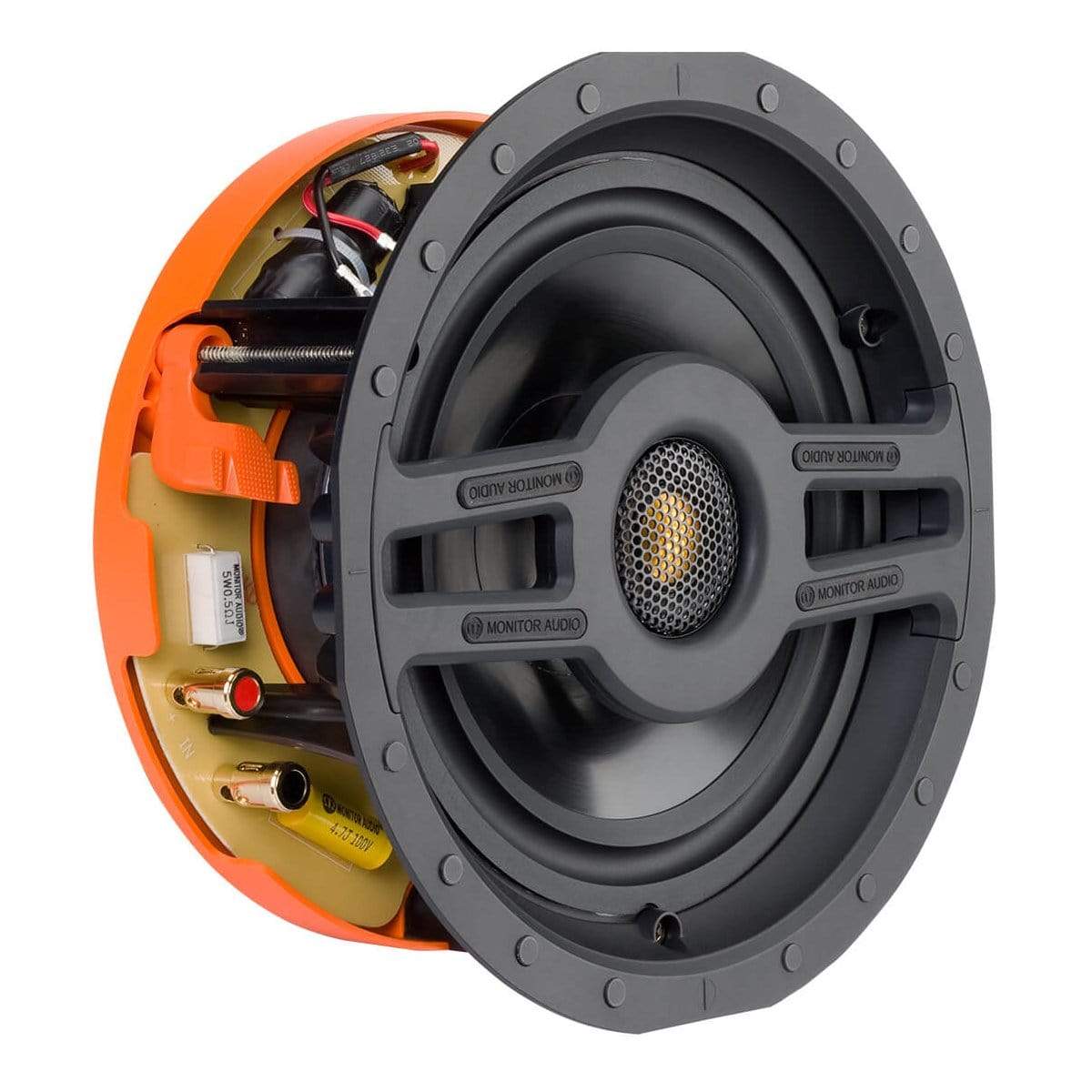

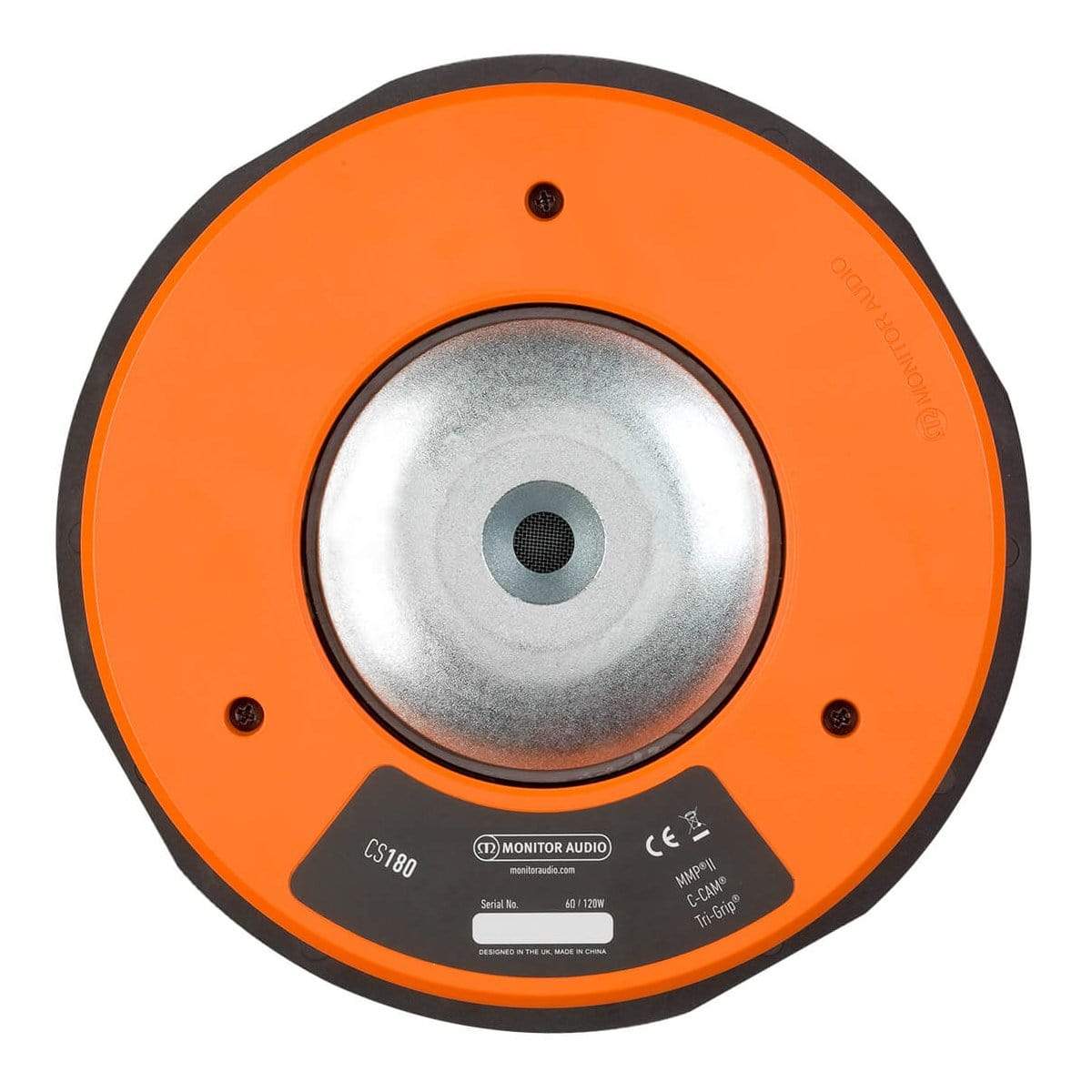

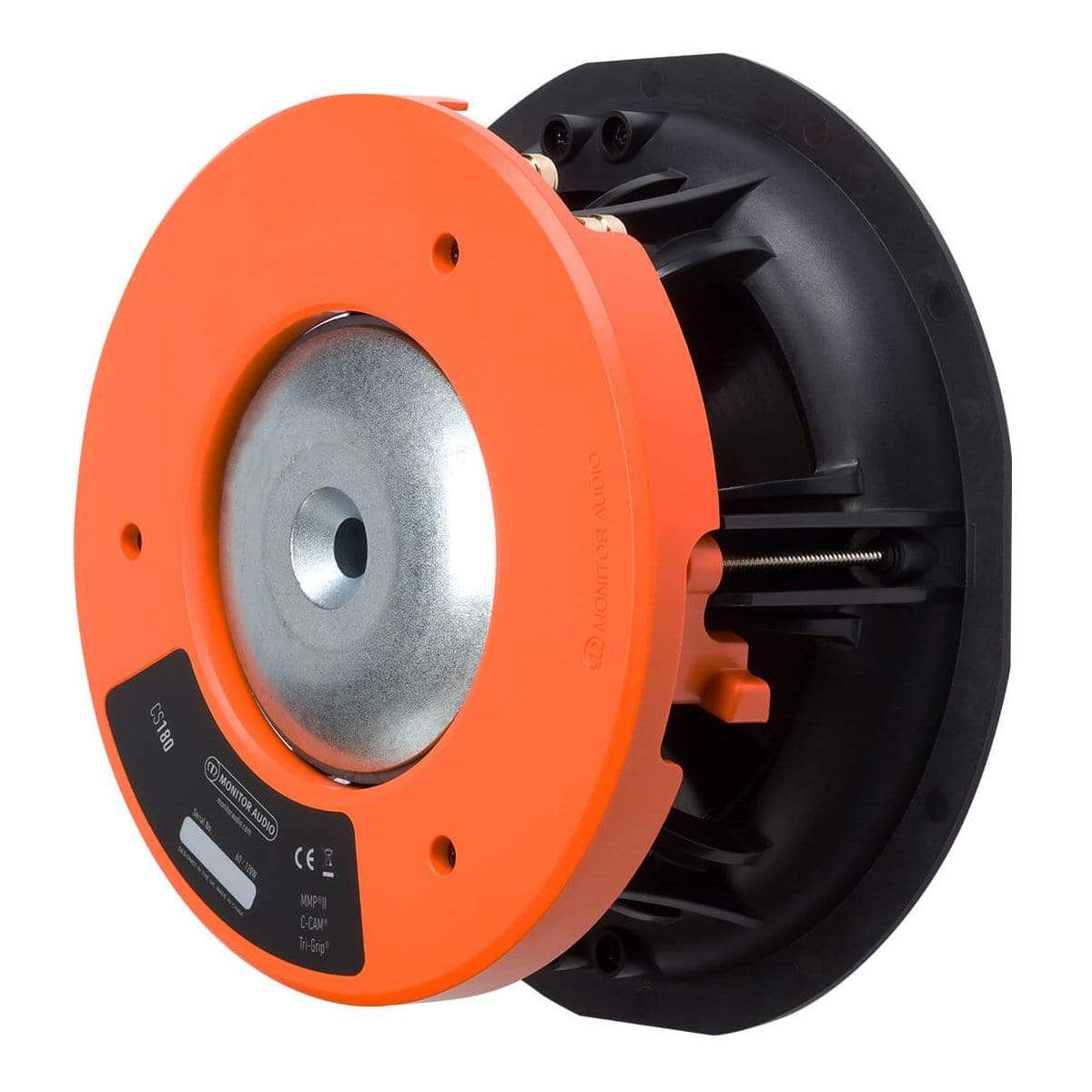

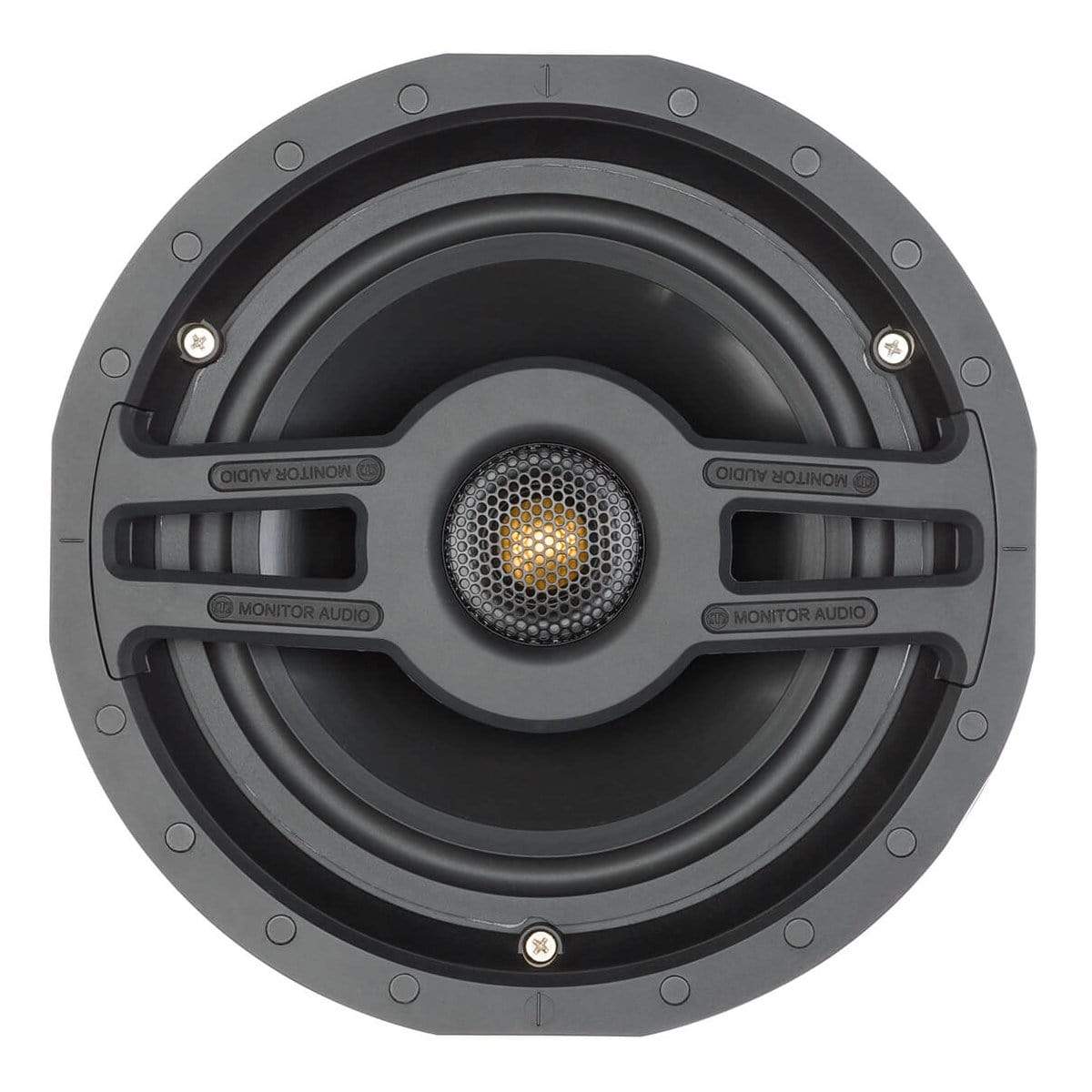

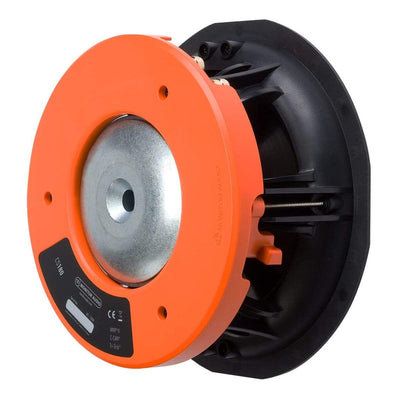

Monitor Audio CS180 In-Ceiling Speaker

Model: CS180 | Warranty: 5 Years | Product Type: In-Ceiling Speakers
Monitor Audio Monitor Audio CS180 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CS180 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CS180 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CS180 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CS180 In-Ceiling Speaker In-Ceiling Speakers
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment
  • $296.00
  • Save $33

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment

Key Information

  • Sensitivity (1W @ 1M): 90 dB
  • Cut-Out Diameter: 213 mm
  • Mounting Depth: 99.4 mm
  • Power Handling (RMS): 120 Ws
  • Nominal Impedance: 6 ohms
  • Driver Size: 8 "
  • Solds As: Single Speaker

The CS180 in-ceiling model marries our 8-inch MMP IIdriver with the CWT family’s pivoting C-CAM Gold Dome tweeter.

Offering superlative dynamic delivery in a super-discreet format, the CS180 will deliver fabulous full-range sound with stealthy versatility.

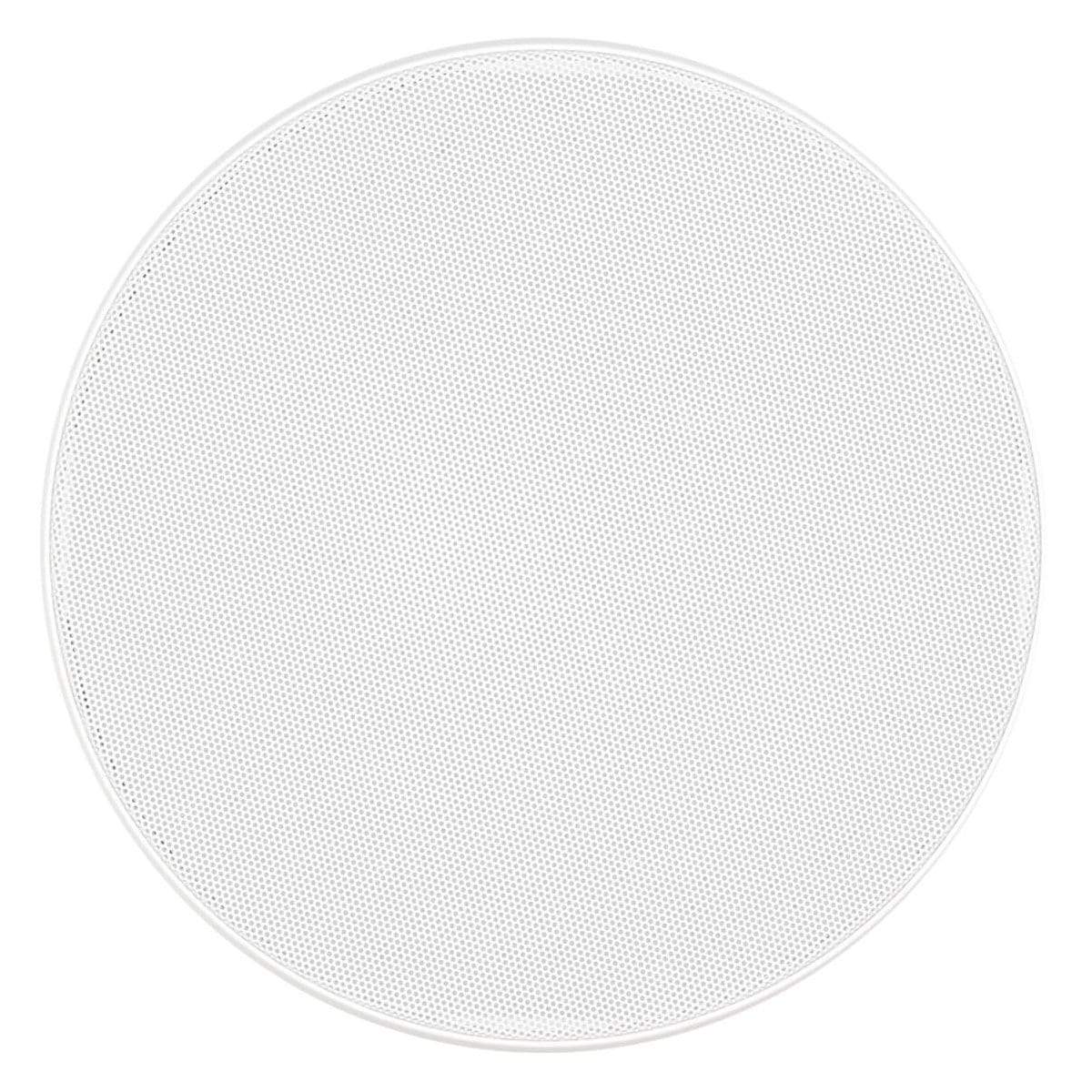

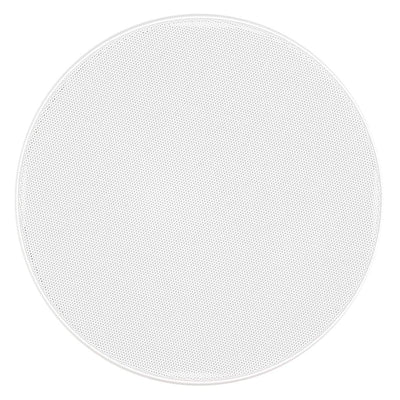

Please specify a round or square grille option when ordering.

Specifications

Frequency Response: 48 Hz – 30 kHz

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 90 dB

Maximum SPL: 110.6 dBA

Power Handling (RMS): 120 W

Recommended Amplifier Requirements: 30 – 120 W

Drive Unit Complement: 1 x 8" MMP IIcone bass driver.

1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration: 2-way

Overall Dimensions (Including Grille (H x W)): Round: 251.7 mm (915/16")

Square: 246.7 x 246.7 mm (911/16 x 911/16")

Mounting Depth: 99.4 mm (315/16”)

Cut-Out Hole Diameter: 213 mm (83/8”)

Fixing Type: 3 position Tri-Grip dog fixings

Connection: Gold plated ‘push’ type terminals

Grille Attachment: Magnetic

Construction Material: Mineral filled ABS, RoHS compliant

Weight: 2.72 kg (6 lb)

Pre-Construction Bracket: CB6 Pre-Construction Bracket (Purple)

Back Box: CCBOX-R | CMBOX-R
