Monitor Audio  /  In-Ceiling Speakers

CS160

RRP $279.00 $251.00 Save 10%
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Key Information

  • Sensitivity (1W @ 1M): 88 dB
  • Cut-Out Diameter: 170 mm
  • Mounting Depth: 99 mm
  • Power Handling (RMS): 70 Ws
  • Nominal Impedance: 6 ohms
  • Driver Size: 6 "
  • Sold As: Single Speaker

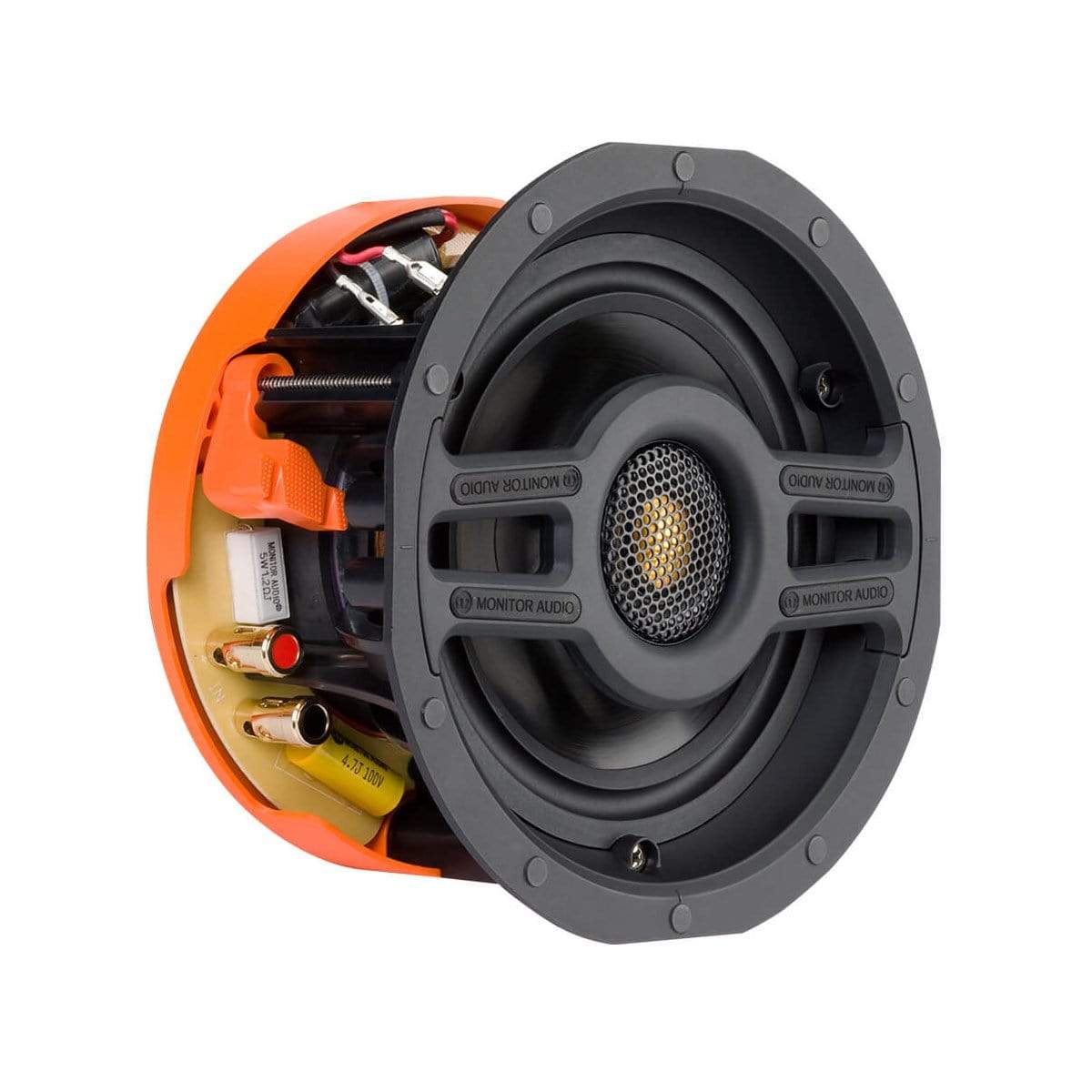

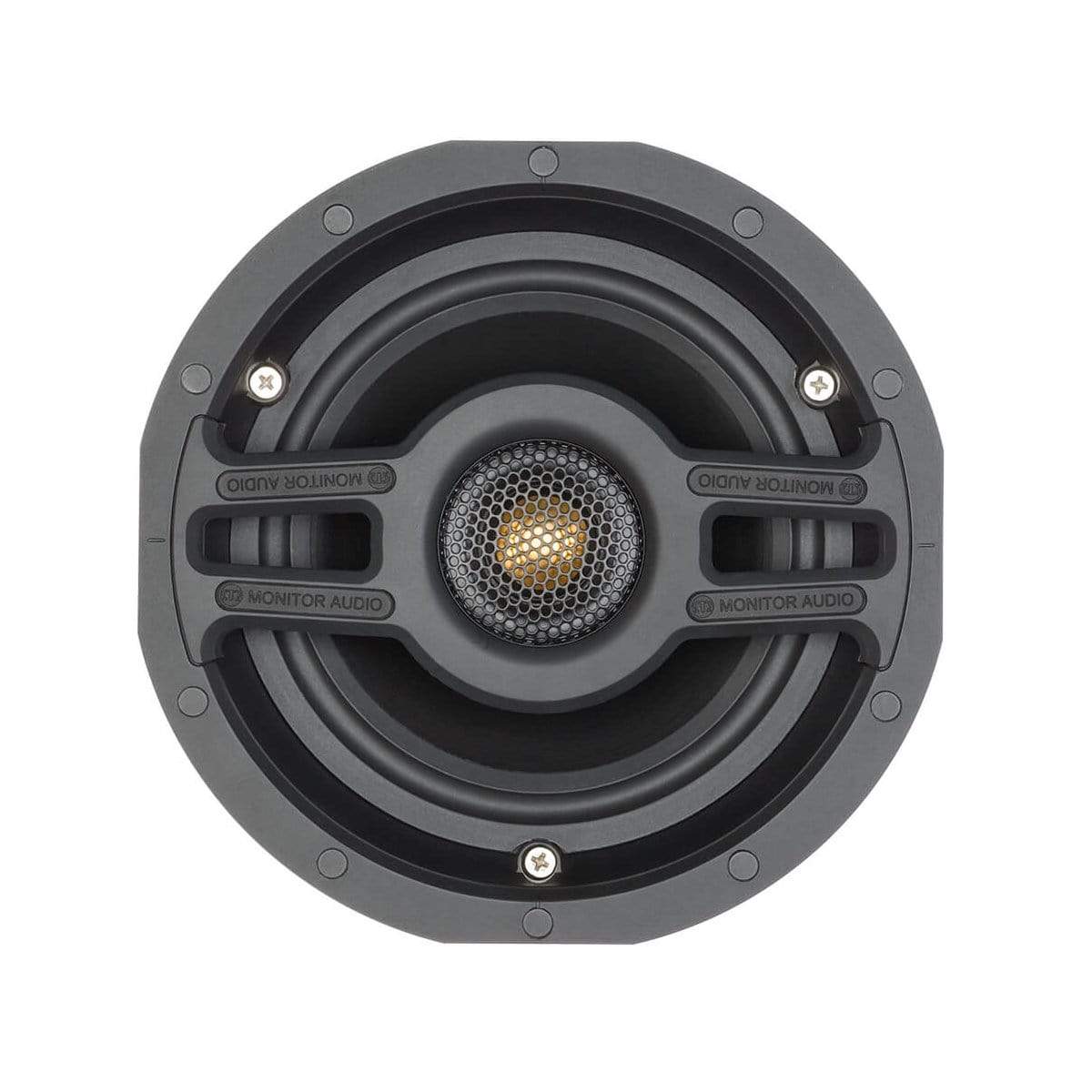

The CS160 in-ceiling model couples a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.

Delivering great imaging and dynamics from a brilliantly compact design, the CS160 is perfect for high performance, ultra-discreet custom-installed systems.

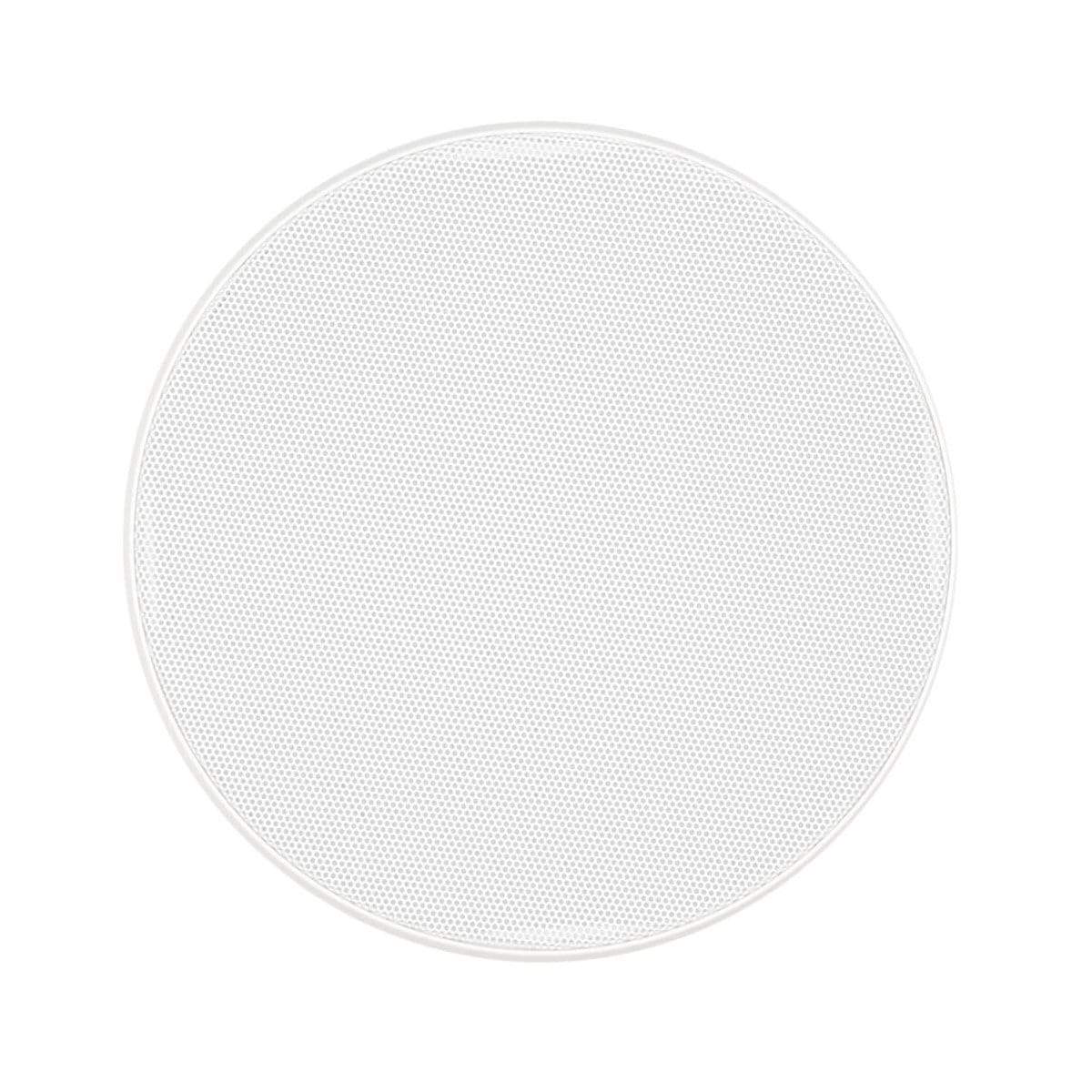

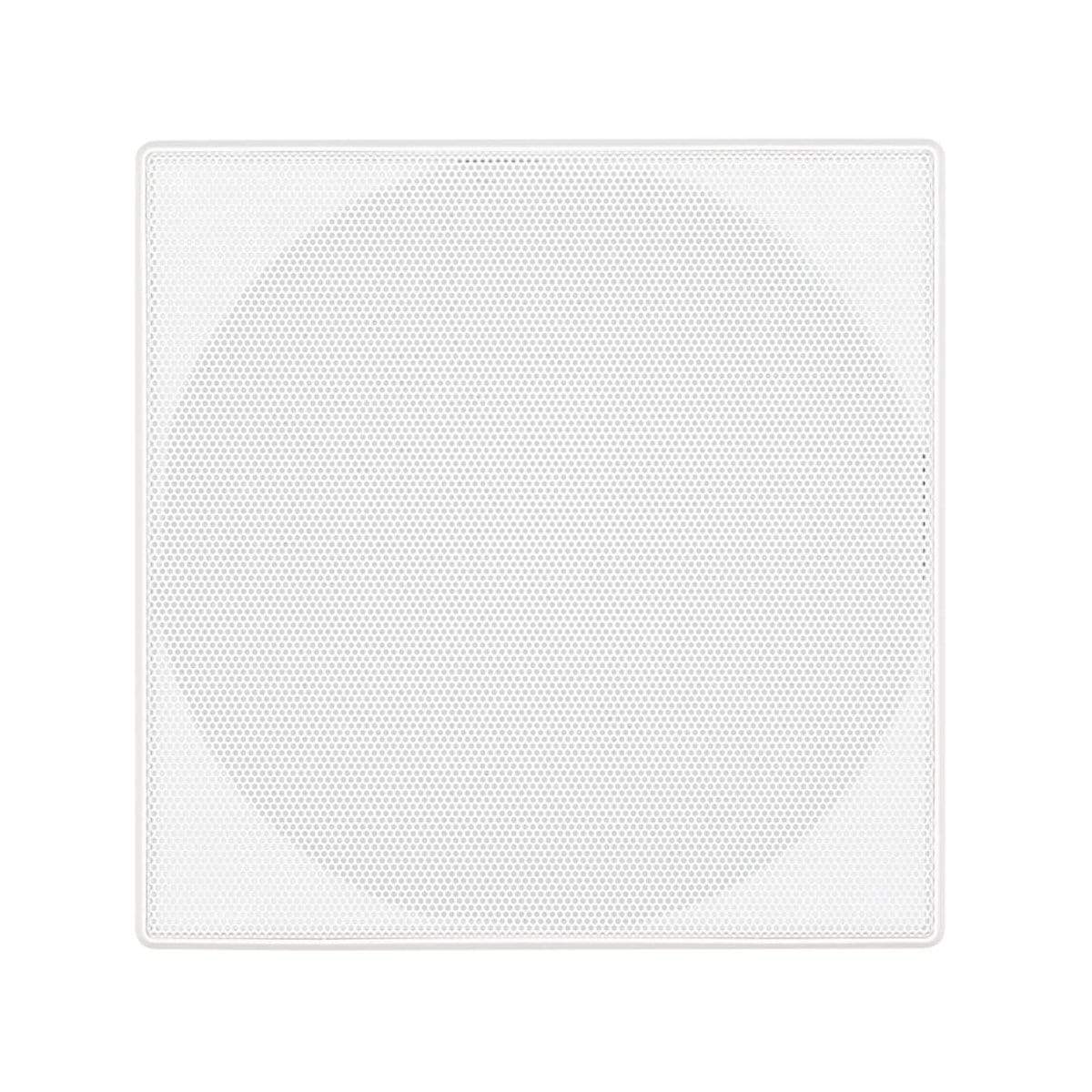

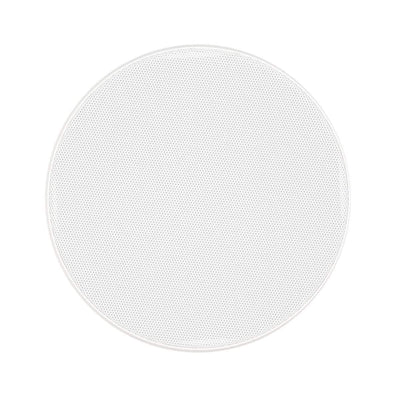

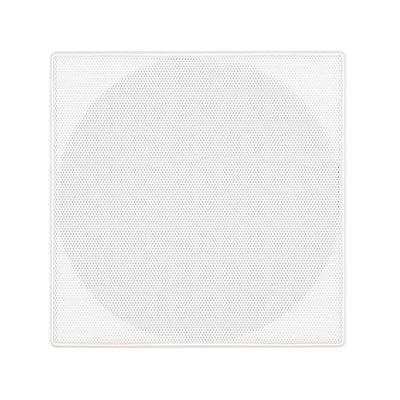

Please specify a round or square grille option when ordering.

Specifications

Frequency Response: 60 Hz – 30 kHz

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 88 dB

Maximum SPL: 107.2 dBA

Power Handling (RMS): 70 W

Recommended Amplifier Requirements: 15 – 70 W

Drive Unit Complement: 1 x 6" MMP IIcone bass driver.

1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter

Acoustic Configuration: 2-way

Overall Dimensions (Including Grille (H x W)): Round: 204.2 mm (81/16")

Square: 199.2 x 199.2 mm (713/16 x 713/16")

Mounting Depth: 99 mm (37/8”)

Cut-Out Hole Diameter: 170 mm (611/16”)

Fixing Type: 3 position Tri-Grip dog fixings

Connection: Gold plated ‘push’ type terminals

Grille Attachment: Magnetic

Construction Material: Mineral filled ABS, RoHS compliant

Weight: 2.10 kg (4 lb 10 oz)

Pre-Construction Bracket: CB5 Pre-Construction Bracket (Blue)

Back Box: CCBOX-R | CMBOX-R
