- Sensitivity (1W @ 1M): 85 dB
- Cut-Out Diameter: 149 mm
- Mounting Depth:9 9 mm
- Power Handling (RMS): 50 Ws
- Nominal Impedance: 6 ohms
- Driver Size: 4 "
- Sold As: Single Speaker

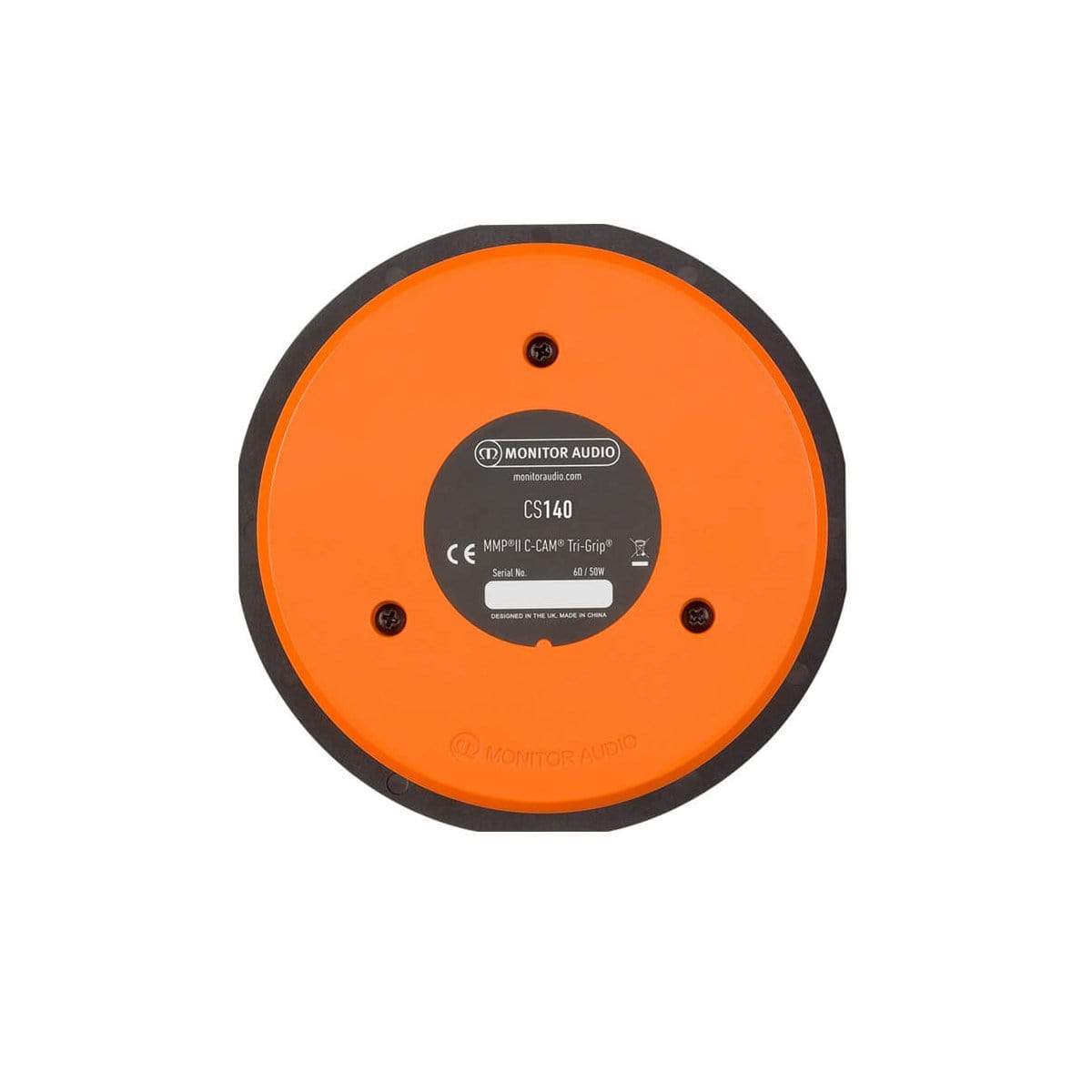

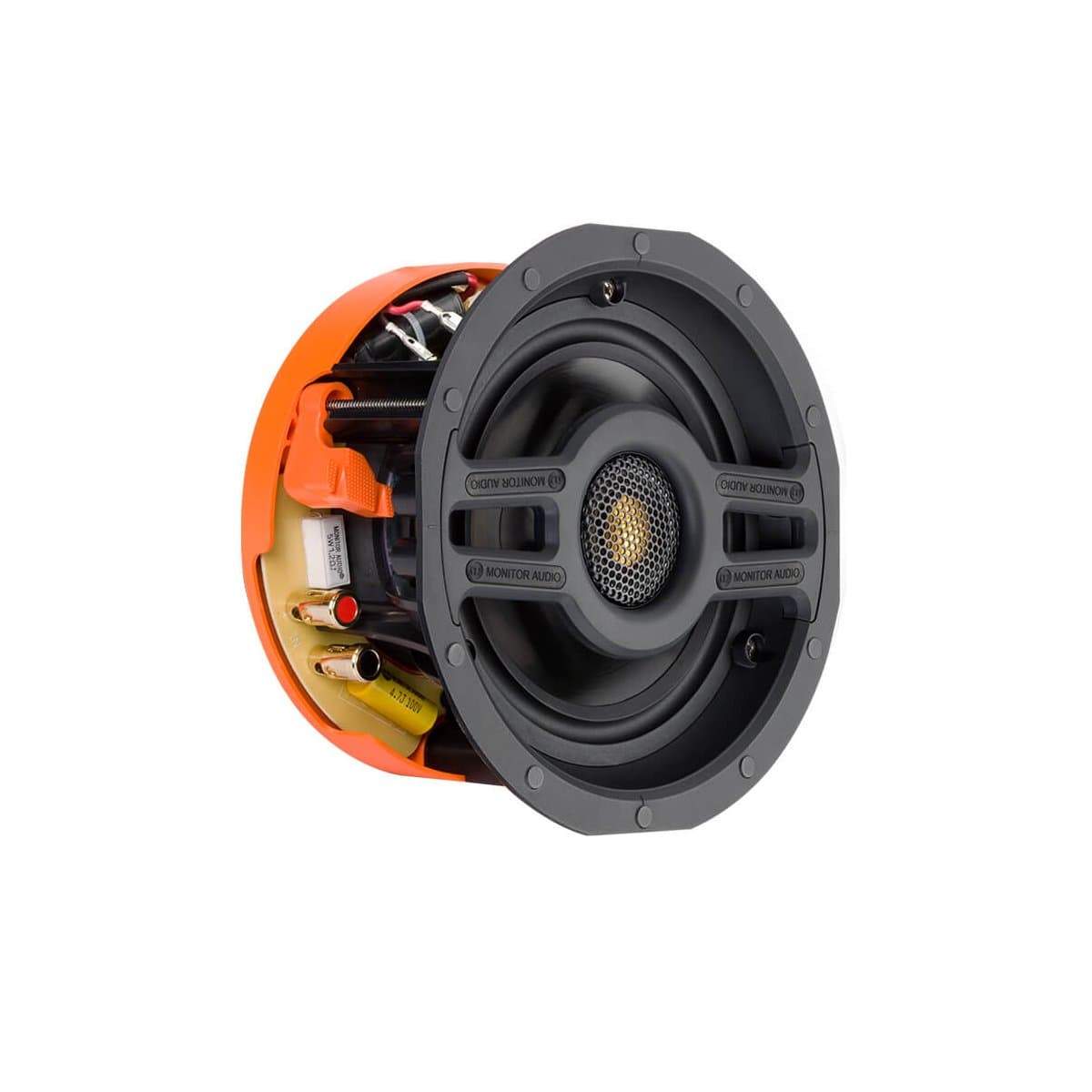

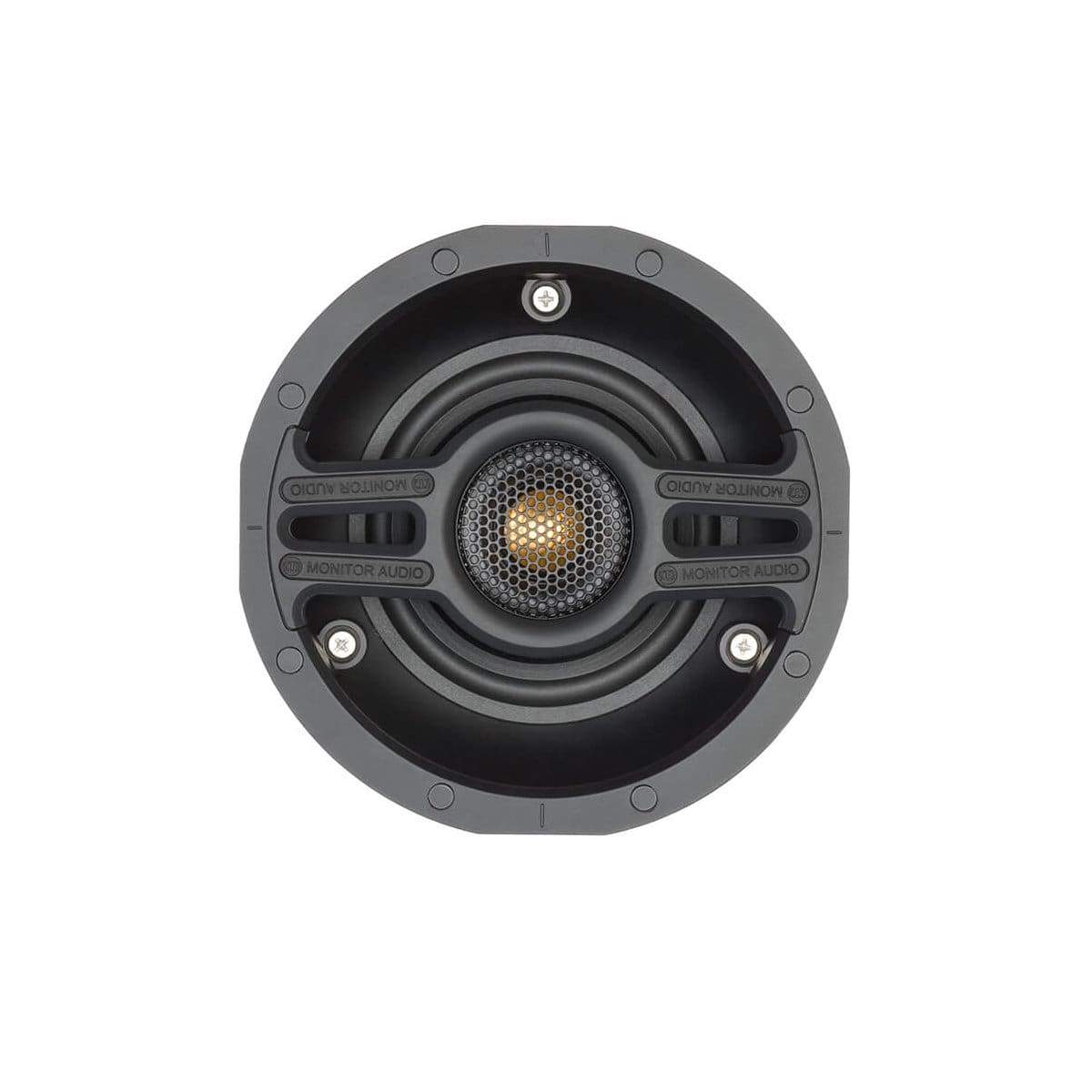

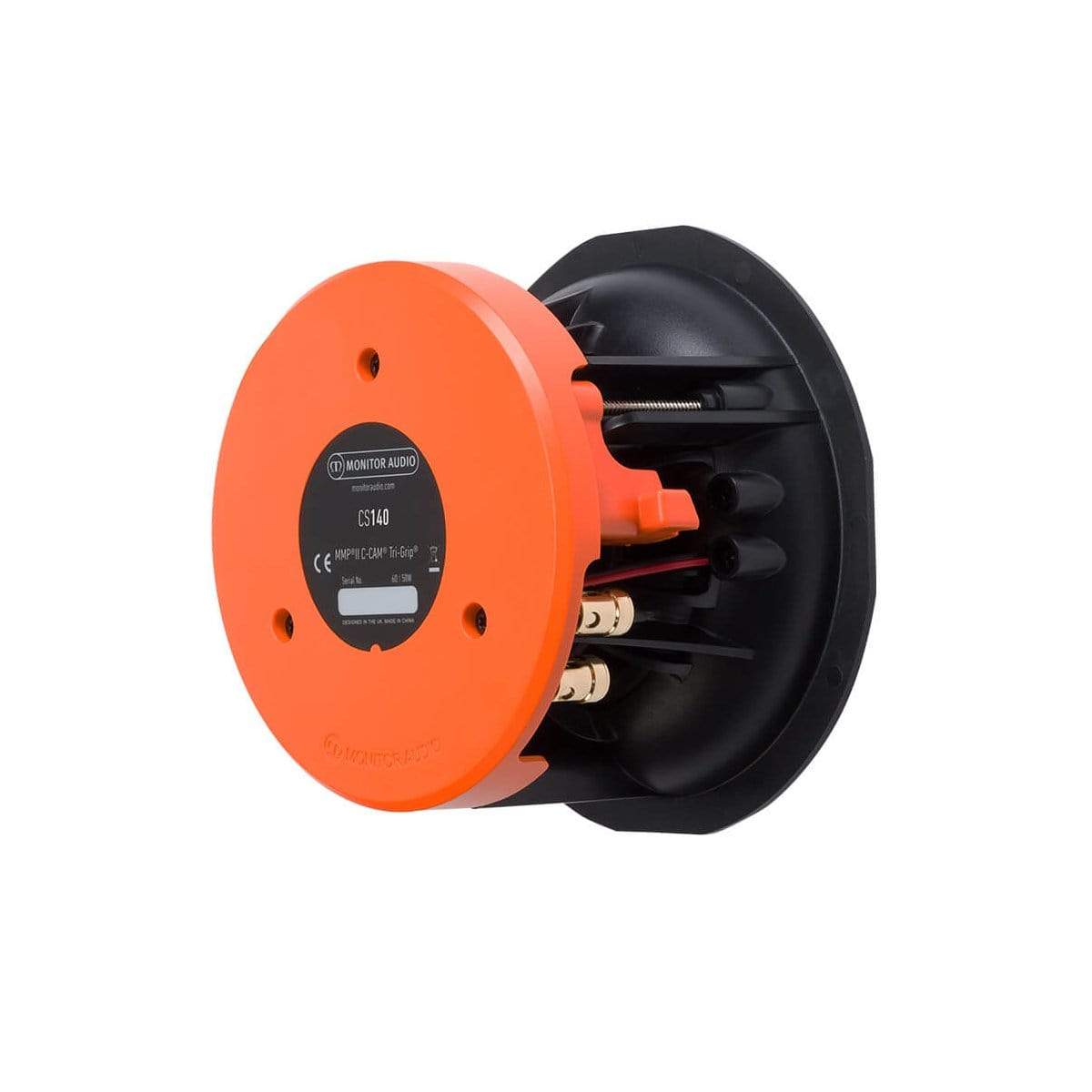

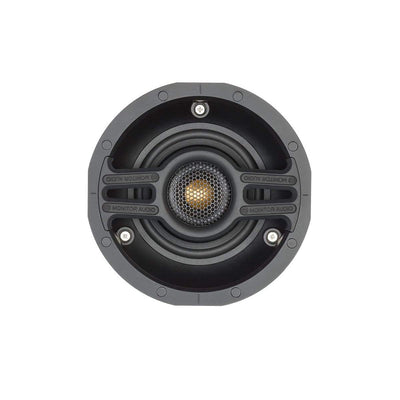

The CS140 in-ceiling model features a proprietary 4-inch MMP II cone and a pivoting version of our acclaimed C-CAM Gold Dome tweeter.

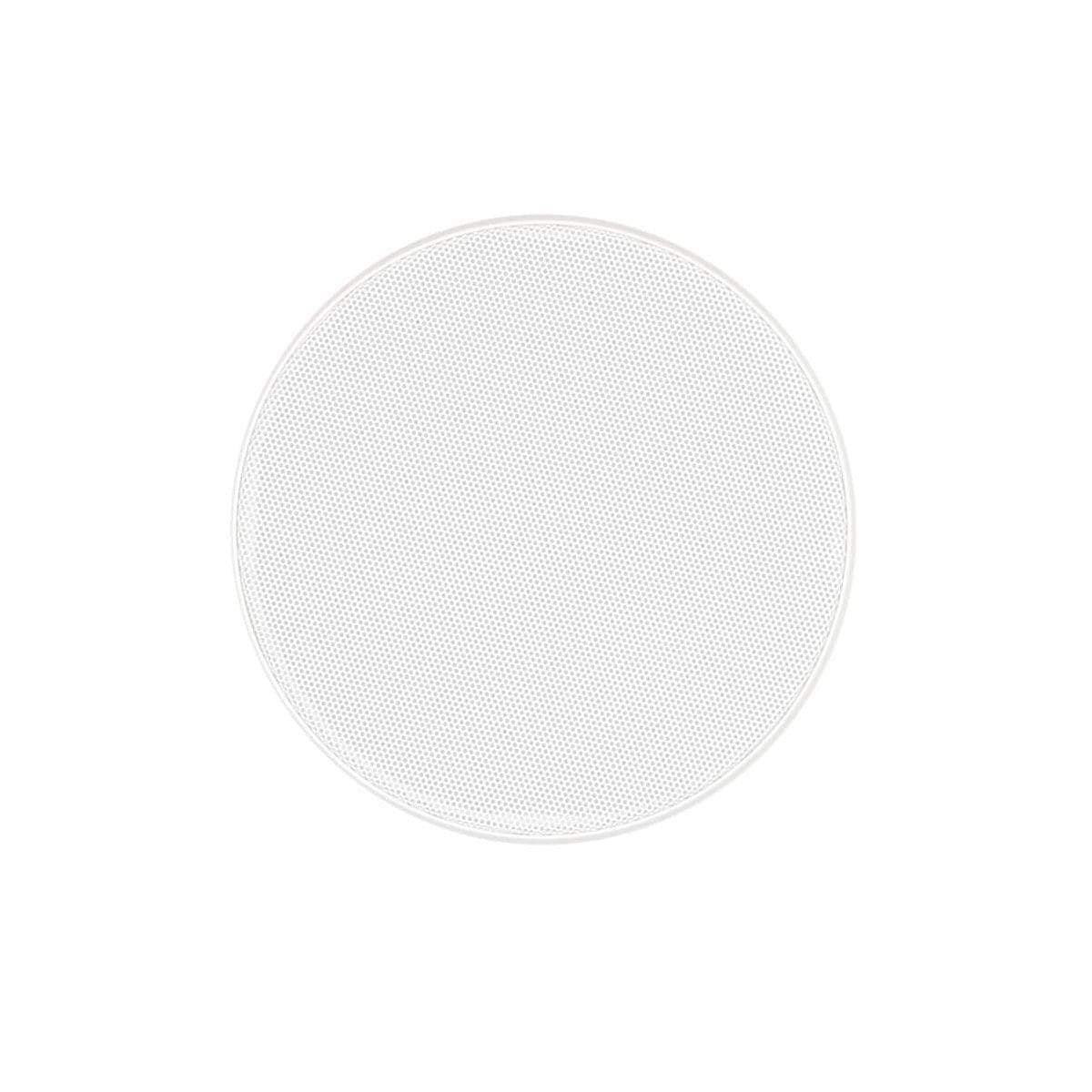

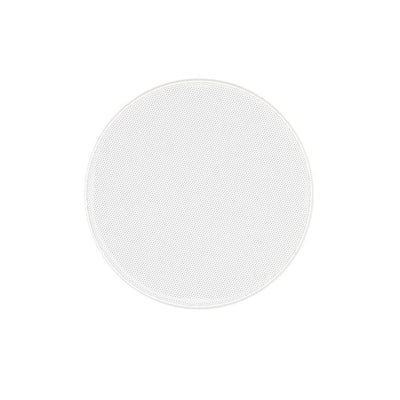

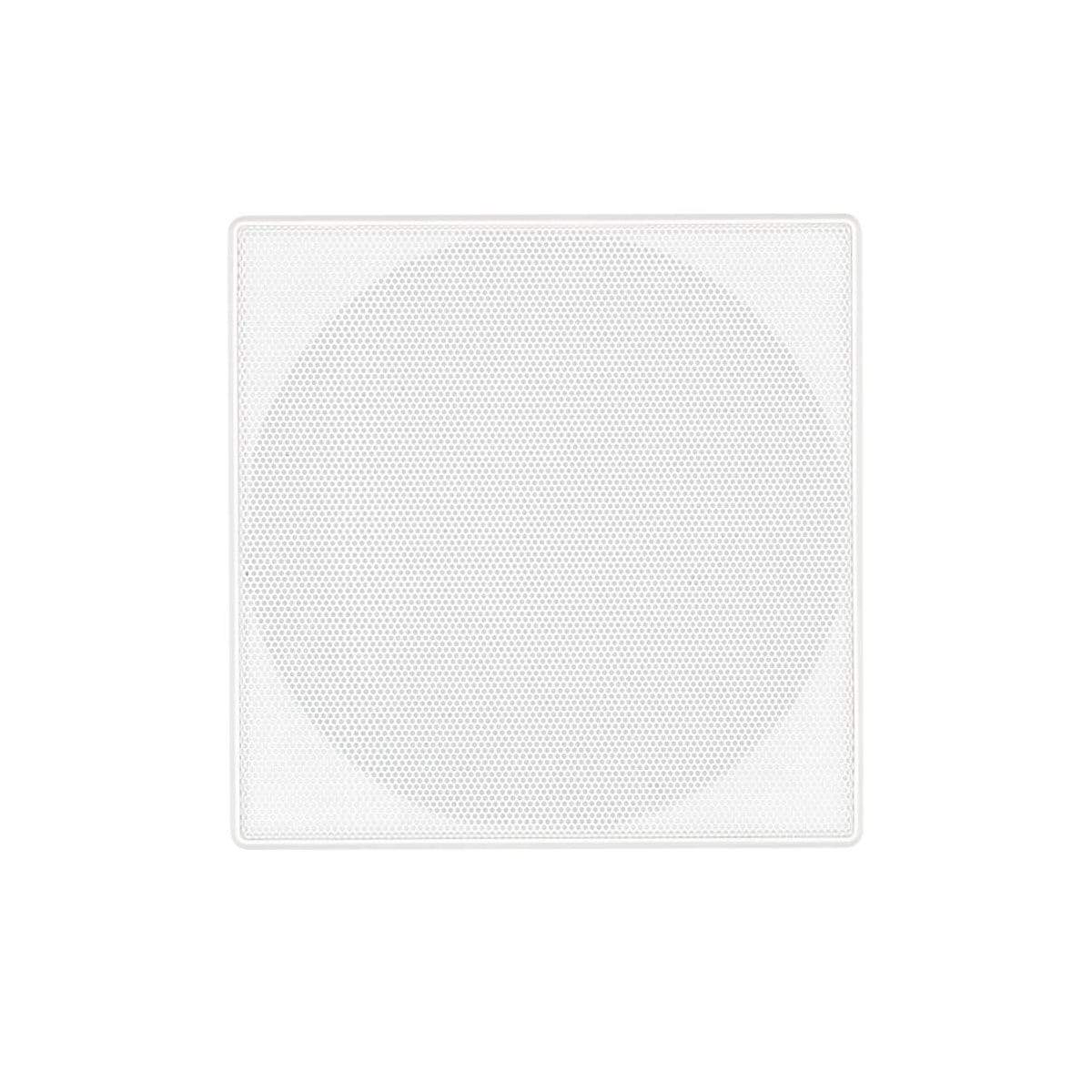

Engineered for excellent detail resolution and complete with either round or square grilles, the CS140 will deliver great sound with super-discreet aesthetics.
Please specify a round or square grille option when ordering.
Frequency Response: 75 Hz – 30 kHz
Nominal Impedance: 6 ohms
Sensitivity (1W@1M): 85 dB
Maximum SPL: 102.8 dBA
Power Handling (RMS): 50 W
Recommended Amplifier Requirements: 10 – 50 W
Drive Unit Complement: 1 x 4" MMP IIcone bass driver.
1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
Acoustic Configuration: 2-way
Overall Dimensions (Including Grille (H x W)): Round: 180.2 mm (71/8")
Square: 176.7 x 176.7 mm (615/16 x 615/16")
Mounting Depth: 98.6 mm (37/8")
Cut-Out Hole Diameter: 149 mm (57/8")
Fixing Type: 3 position Tri-Grip dog fixings
Connection: Gold plated ‘push’ type terminals
Grille Attachment: Magnetic
Construction Material: Mineral filled ABS, RoHS compliant
Weight: 1.18 kg (2 lb 10 oz)
Pre-Construction Bracket: CB4 Pre-Construction Bracket (Pink)
Back Box: CCBOX-R
