Monitor Audio CP-WT380 In-Wall Speaker

Key Information

• Sensitivity (1W @ 1M):89 dB
• Mounting Depth:99 mm
• Power Handling (RMS):120 Ws
• Nominal Impedance:6 ohms
• Driver Size:8 "
• Cut-Out Width:269 mm
• Cut-Out Height:438 mm
• Sold As: Singe Speaker

Alongside a pivoting C-CAM  tweeter, the CP-WT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.

Technology

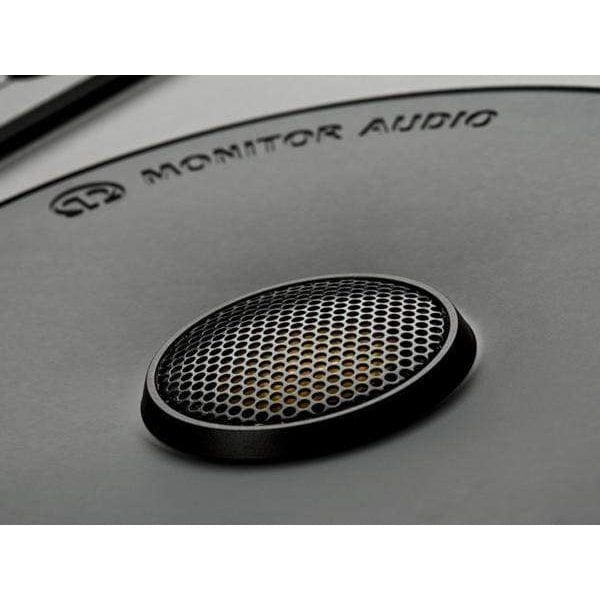

• Pivoting C-CAM Gold Dome tweeter.
• C-CAM bass driver featuring Rigid Surface Technology ( RST).
• High overall efficiency.
• High frequency level adjustment (+/-3 dB).
• Boundary compensation controls.
• Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

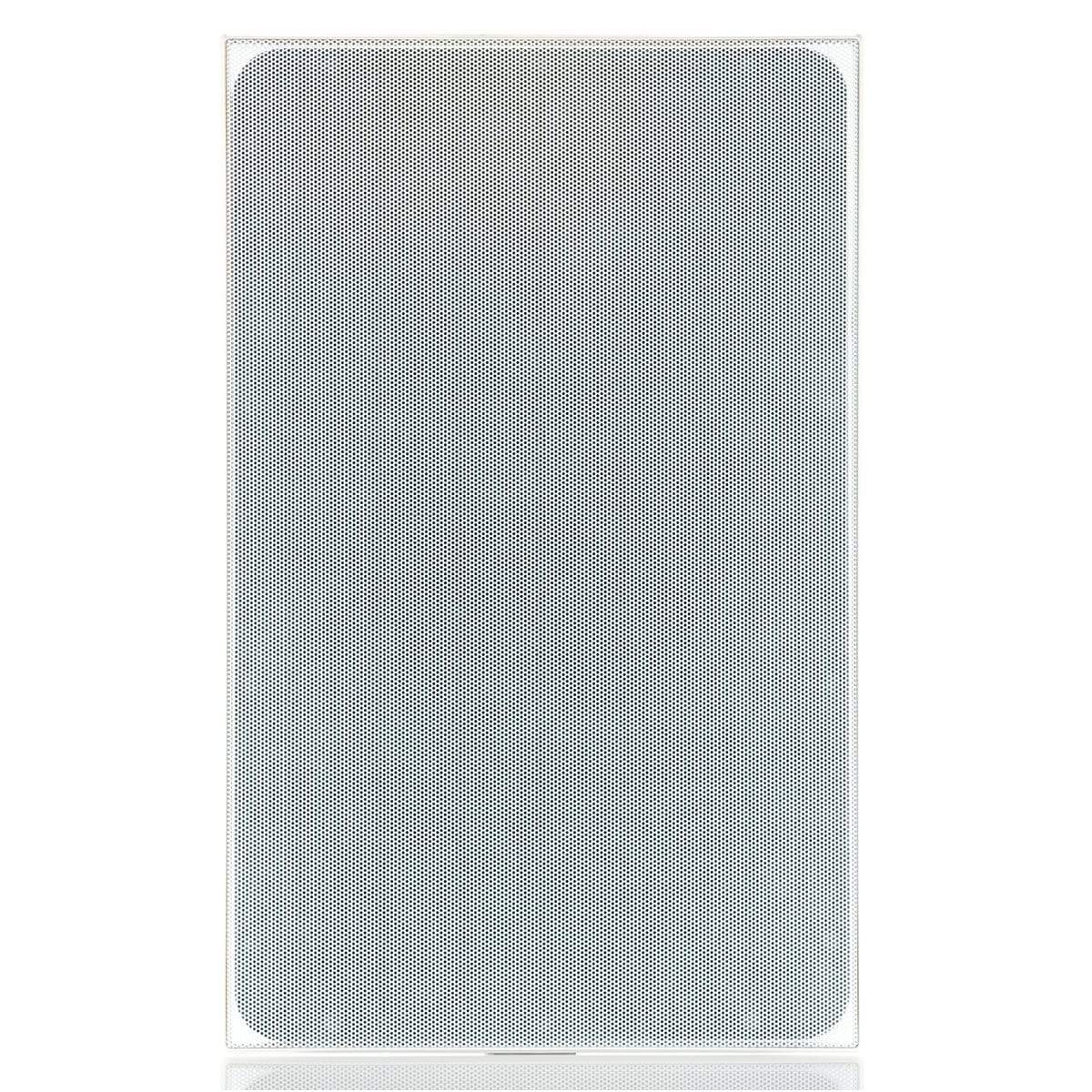

• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Specifications

Frequency Response: 50 Hz – 25 kHz

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 89 dB

Maximum SPL: 109.6 dBA

Power Handling (RMS): 120 W

Recommended Amplifier Requirements: 30 – 120 W

Crossover Frequency: 2.5 kHz @ 12 dB / Octave

Drive Unit Complement (2-Way): 8" C-CAM RST cone bass driver and 1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB) and Boundary Compensation Switch

Overall Dimensions (H x W x D): 472.5 x 303.5 mm

Overall Depth (Including Grille): 106 mm

Cut-Out Dimensions: 438 x 269 mm

Mounting Depth: 99 mm

Fixing Type: 6 position Tri-Grip dog leg fixings

Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight: 4.95 kg

Pre-Construction Bracket: WB10 Pre-Construction Bracket (Light Brown)

Sold As: Single Unit
