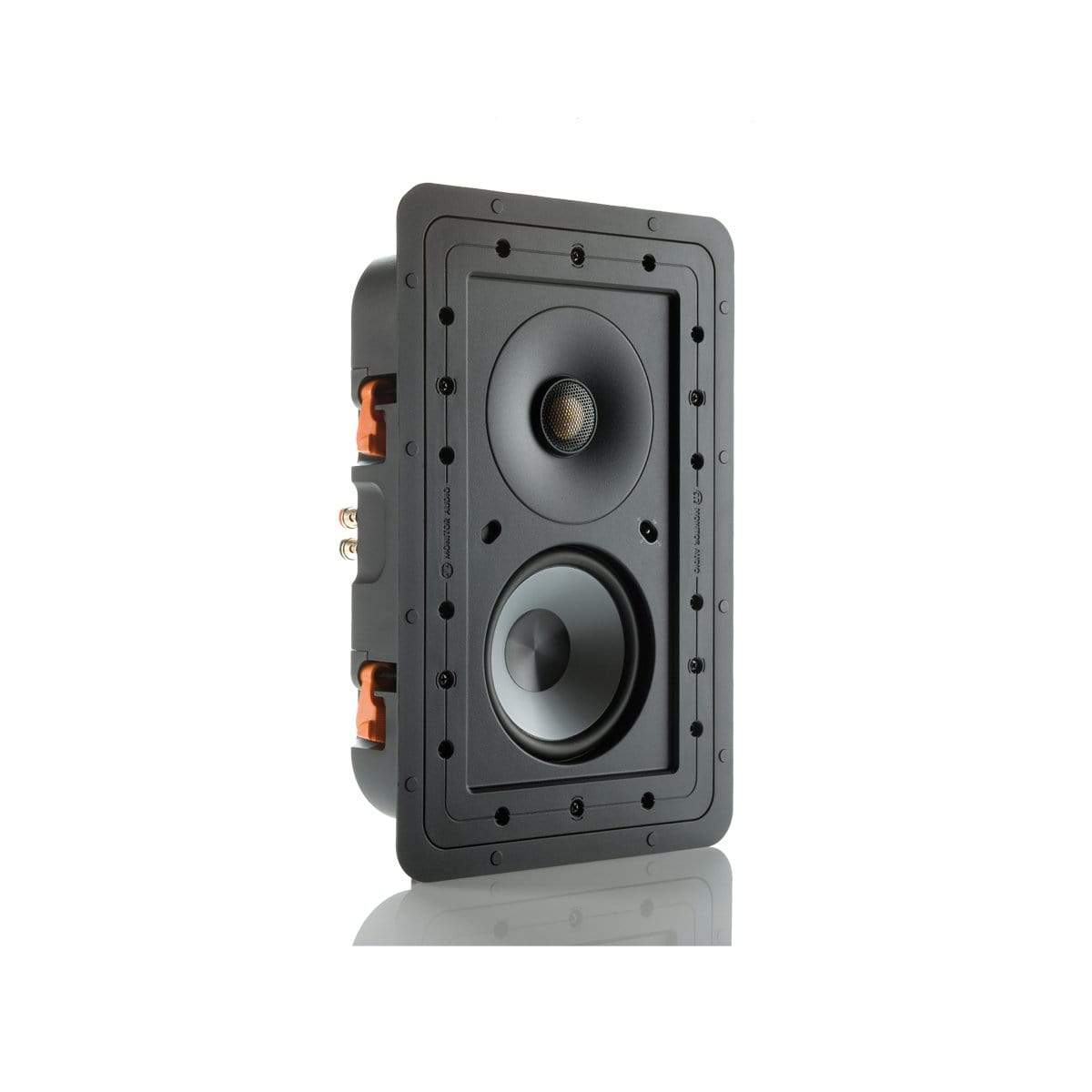

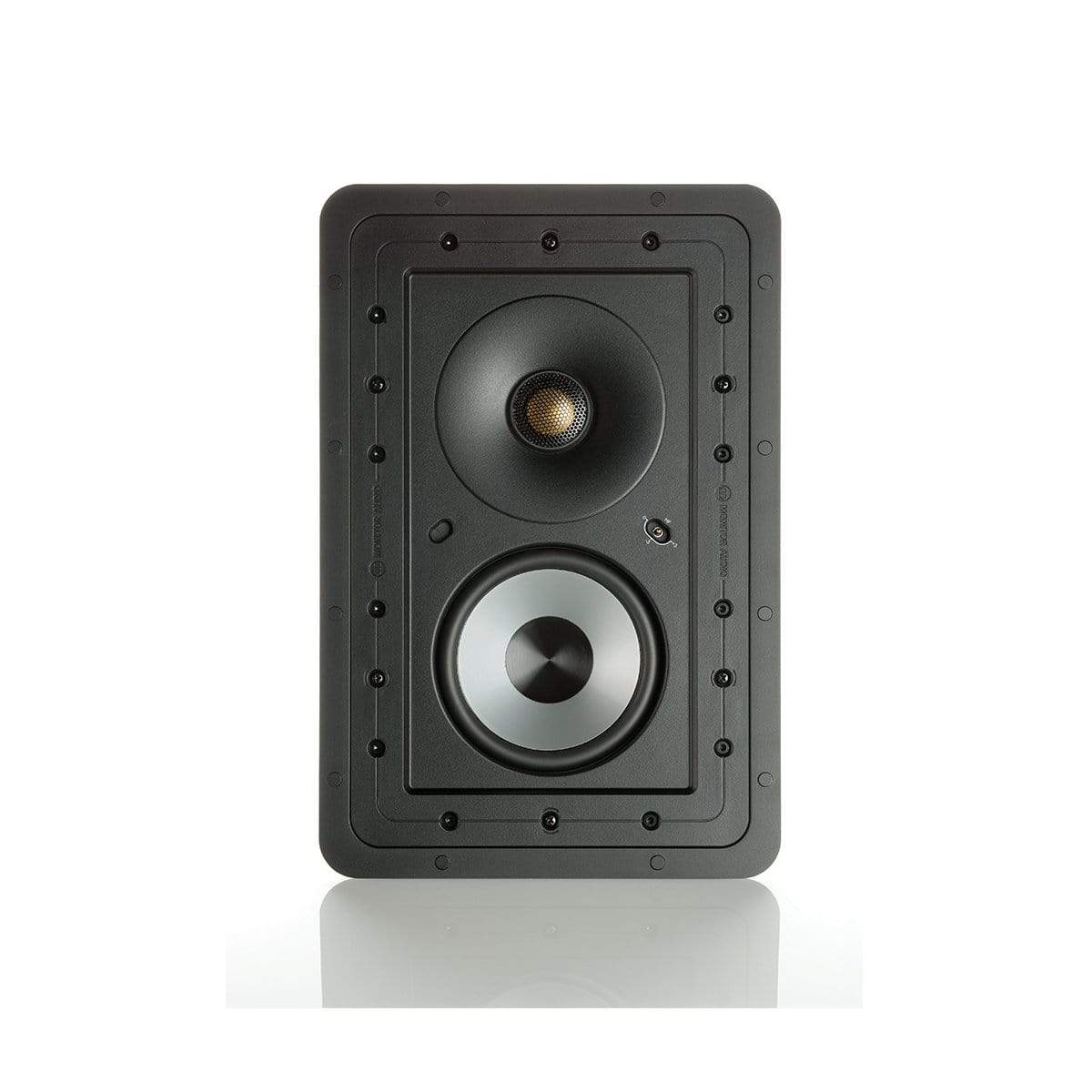

Monitor Audio CP-WT150 In-Wall Speaker

Key Information

• Sensitivity (1W @ 1M):85 dB
• Mounting Depth:96 mm
• Power Handling (RMS):50 Ws
• Nominal Impedance:6 ohms
• Driver Size:5 "
• Cut-Out Width:207 mm
• Cut-Out Height:326 mm
• Sold As: Individual Speaker

Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-WT150 in-wall model features a 5" MMP II bass driver, high frequency level adjustment (+3 dB / 0 dB / -3 dB) and a pivoting C-CAM tweeter.

Technology

• Pivoting C-CAM Gold Dome tweeter and< MMP II bass driver.
• High overall efficiency.
• High frequency level adjustment (+/-3 dB).
• Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

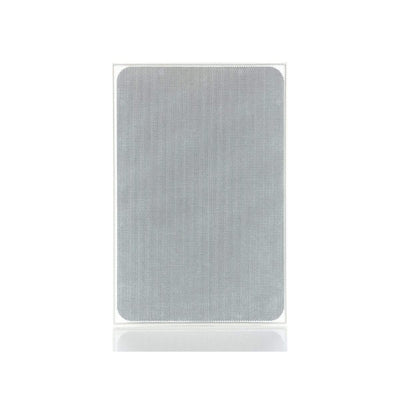

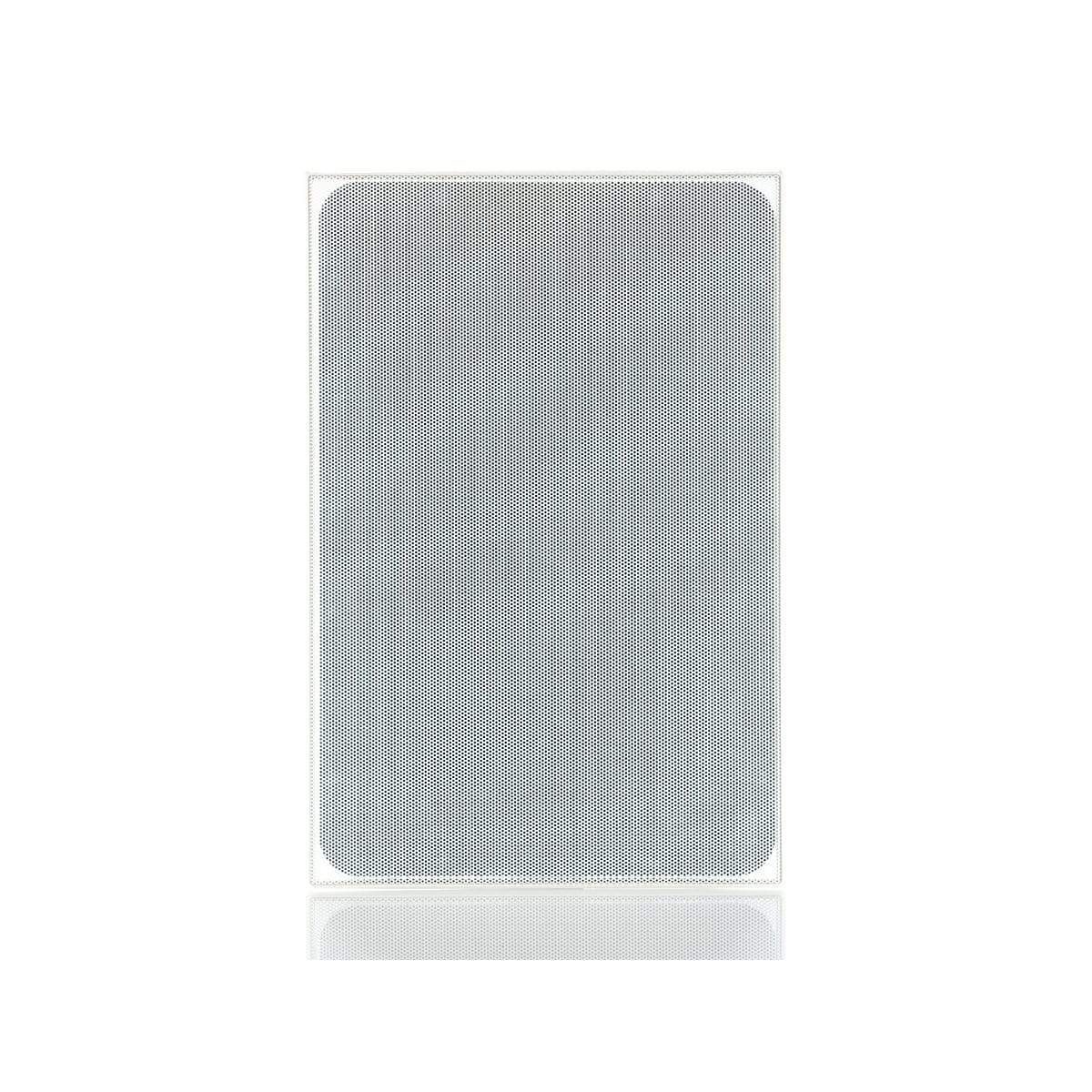

• Magnetic and easily removable steel grille.
• Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
• Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Specifications

Frequency Response: 75 Hz - 25 kHz

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 85 dB

Maximum SPL: 102.8 dBA

Power Handling (RMS): 50 W

Recommended Amplifier Requirements: 20 - 50 W

Crossover Frequency: 2.8 kHz @ 12 dB / Octave

Drive Unit Complement:

2-Way
5" MMP II cone bass driver
1" C-CAM Gold Dome tweeter

Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Dimensions (H x W x D): 360.5 x 242 mm

Overall Depth (Including Grille): 102 mm

Cut-Out Dimensions: 326 x 207 mm

Mounting Depth: 96 mm

Fixing Type: 6 position Tri-Grip dog leg fixings

Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)

Connection: Gold plated 'push' type terminals

Weight: 2.65 kg
