Monitor Audio CP-CT380 In-Ceiling Speaker

Model: | Warranty: 5 Years | Product Type: In-Ceiling Speakers
Monitor Audio Monitor Audio CP-CT380 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CP-CT380 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CP-CT380 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CP-CT380 In-Ceiling Speaker In-Ceiling Speakers
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment
  • $548.00
  • Save $61

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment

Key Information

  • Sensitivity (1W @ 1M): 89 dB
  • Cut-Out Diameter: 274 mm
  • Mounting Depth: 181 mm
  • Power Handling (RMS): 120 Ws
  • Nominal Impedance: 6 ohms
  • Driver Size: 8 "
  • Sold As: Single Speaker

Alongside a pivoting C-CAM tweeter, the CP-CT380 model introduces a powerful 8" C-CAM bass driver featuring the Rigid Surface Technology (RST) cone surface employed by our range-topping home audio speaker systems.

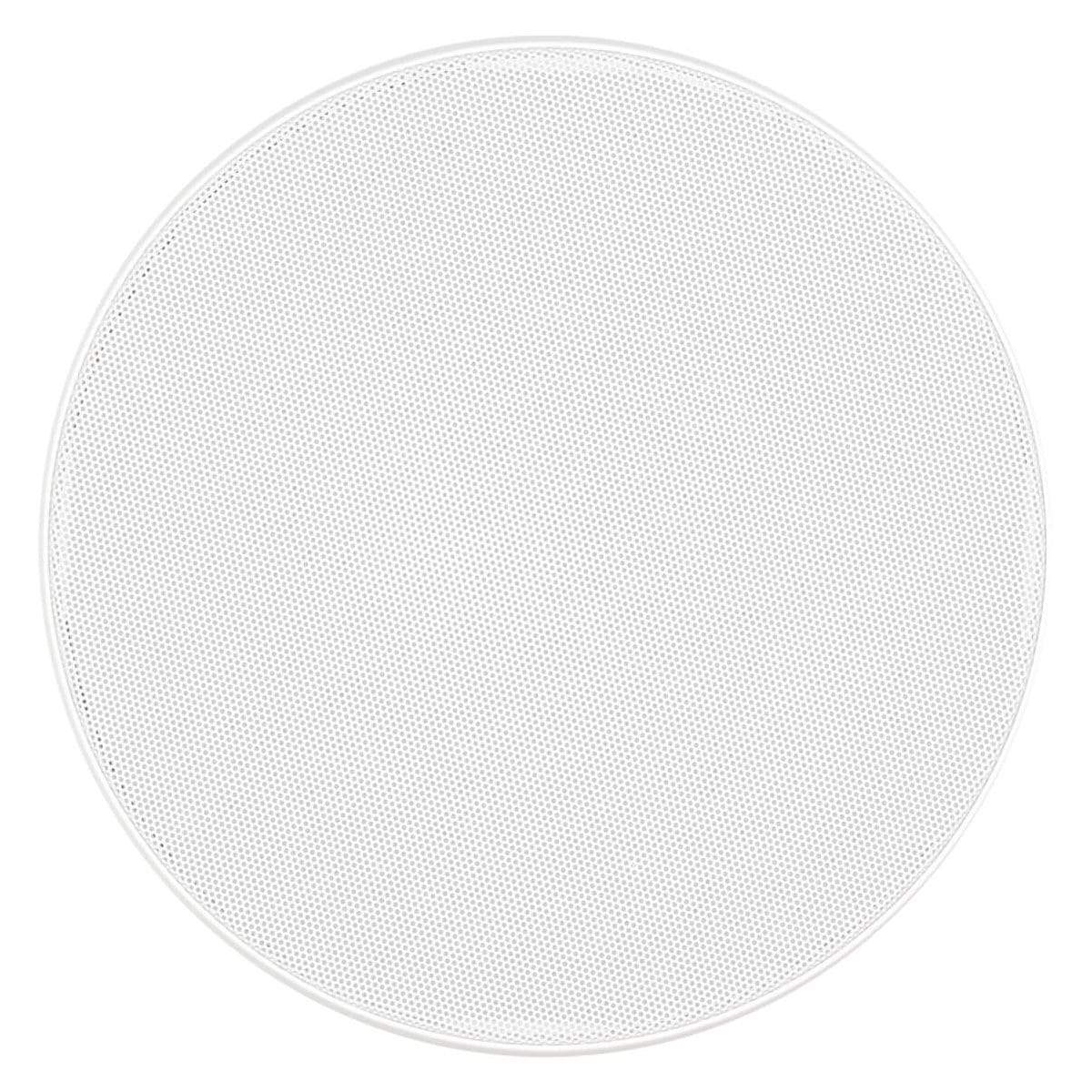

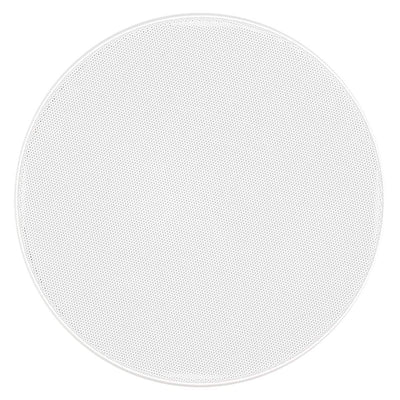

Optional square grille can be used with this model.

TECHNOLOGY

  • Pivoting C-CAM gold dome tweeter.
  • C-CAM bass driver featuring Rigid Surface Technology (RST).
  • High overall efficiency.
  • High frequency level adjustment (+/-3dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

Specifications

Frequency Response: 50 Hz - 25 kHz

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 89 dB

Maximum SPL: 109.6 dBA

Power Handling (RMS): 120 W

Recommended Amplifier Requirements: 30 - 120 W

Crossover Frequency: 2.5 kHz @ 12dB / Octave

Drive Unit Complement: 2-Way

8" C-CAMRST cone bass driver
1"  C-CAM pivoting Gold Dome tweeter

Adjustment Controls: HF Level Switch

(+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille): 309 mm (123/16")

Overall Depth (Including Grille): 187 mm (7 3/8")

Cut-Out Hole Diameter: 274 mm (1013/16")

Mounting Depth: 181 mm (71/8")

Optional Square Grille - Outer Dimensions: 309 x 309 mm (123/16")

Fixing Type: 3 position Tri-Grip dog leg fixings

Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight: 3.74 kg (8 lb 4 oz)

Connection: Gold plated 'push' type terminals

Pre-Construction Bracket: CB10 Pre-Construction Bracket (Light Brown)
