Monitor Audio CP-CT150 In-Ceiling Speaker

Model: CP-CT150 | Warranty: 5 Years | Product Type: In-Ceiling Speakers
Monitor Audio Monitor Audio CP-CT150 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CP-CT150 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CP-CT150 In-Ceiling Speaker In-Ceiling Speakers
Monitor Audio Monitor Audio CP-CT150 In-Ceiling Speaker In-Ceiling Speakers
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment
  • $278.00
  • Save $31

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment

Key Information

  • Sensitivity (1W @ 1M): 85 dB
  • Cut-Out Diameter: 212 mm
  • Mounting Depth: 151 mm
  • Power Handling (RMS): 50 Ws
  • Nominal Impedance: 6 ohms
  • Driver Size: 5 "
  • Sold As: Single Speaker

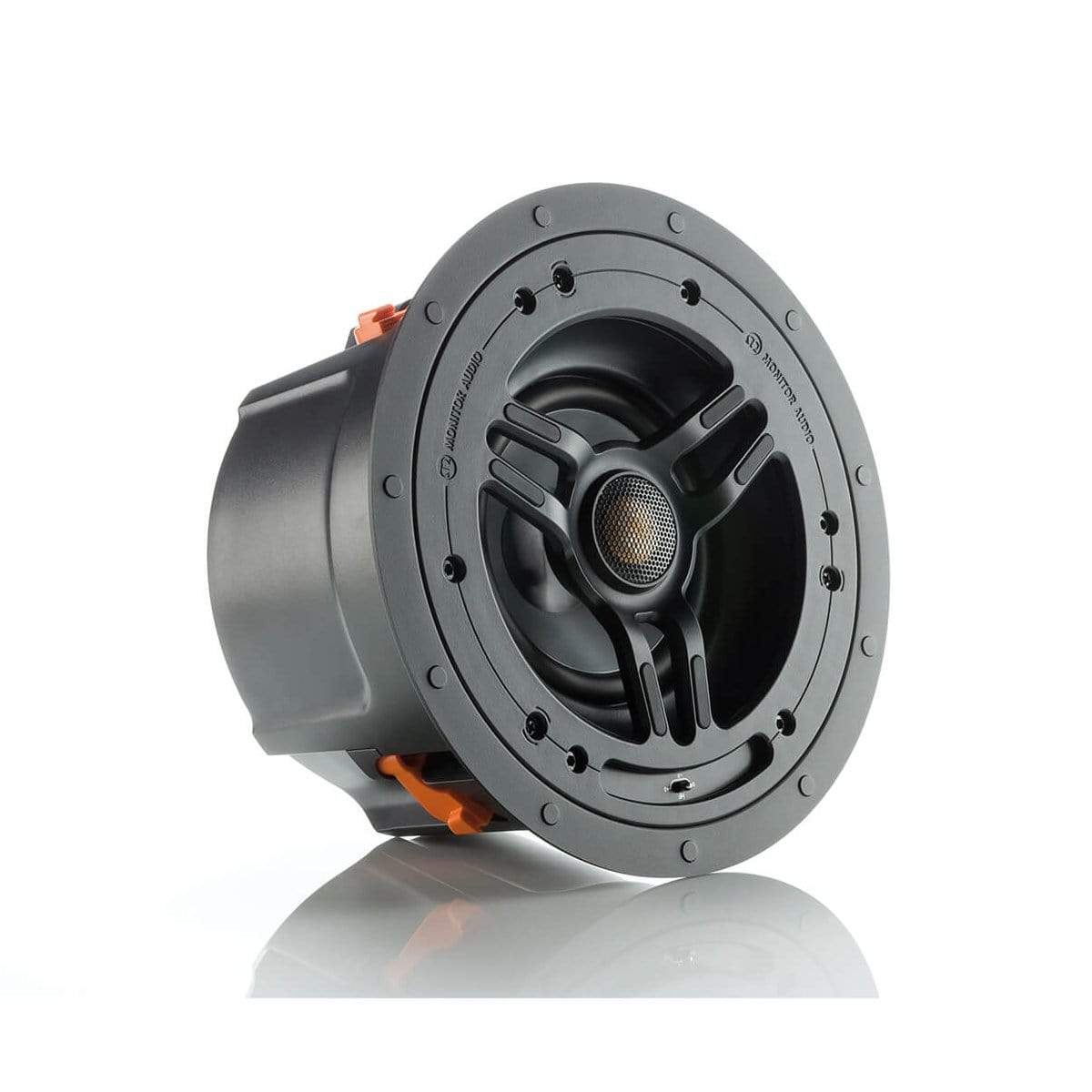

Offering high impact audio and discreet trimless design for smaller environments the entry-level CP-CT150 in-ceiling model features a 5" MMP II bass driver, high frequency level adjustment (+3 dB / 0 dB / -3 dB) and a pivoting C-CAM tweeter.

Optional square or premium grille can be used with this model.

TECHNOLOGY

  • Pivoting C-CAM Gold Dome tweeter and MMP II bass driver.
  • High overall efficiency.
  • High frequency level adjustment (+/-3 dB).
  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

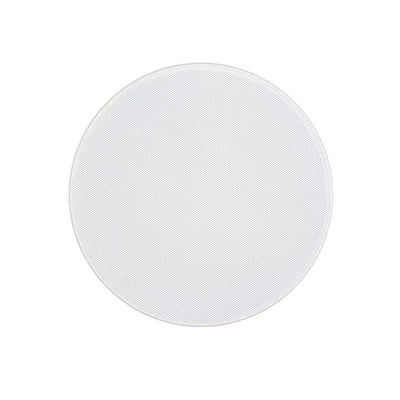

  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.



Specifications

Frequency Response: 75 Hz - 25 kHz

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 85 dB

Maximum SPL: 102.8 dBA

Power Handling (RMS): 50 W

Recommended Amplifier Requirements: 20 - 50 W

Crossover Frequency: 2.8 kHz @ 12 dB / Octave

Drive Unit Complement: 2-Way

5" MMP II cone bass driver
1" C-CAM pivoting Gold Dome tweeter



Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille): 250 mm (913/16")

Overall Depth (Including Grille): 155 mm (61/8")

Cut-Out Hole Diameter: 212 mm (83/8")

Mounting Depth: 151 mm (515/16")

Optional Square Grille - Outer Dimensions: 249 x 249 mm (913/16")

Fixing Type: 3 position Tri-Grip dog leg fixings

Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight: 2.14 kg (4 lb 12 oz)

Connection: Gold plated 'push' type terminals

Pre-Construction Bracket: CB6-Pre-Construction Bracket (Purple)

Back Box: CCBOX-L
