Key Information
- Sensitivity (1W @ 1M):88.5 dB
- Cut-Out Diameter:211 mm
- Mounting Depth:150 mm
- Power Handling (RMS):85 Ws
- Nominal Impedance:6 ohms
- Driver Size:6.5 "
- Sold As: Single Speaker
Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound.

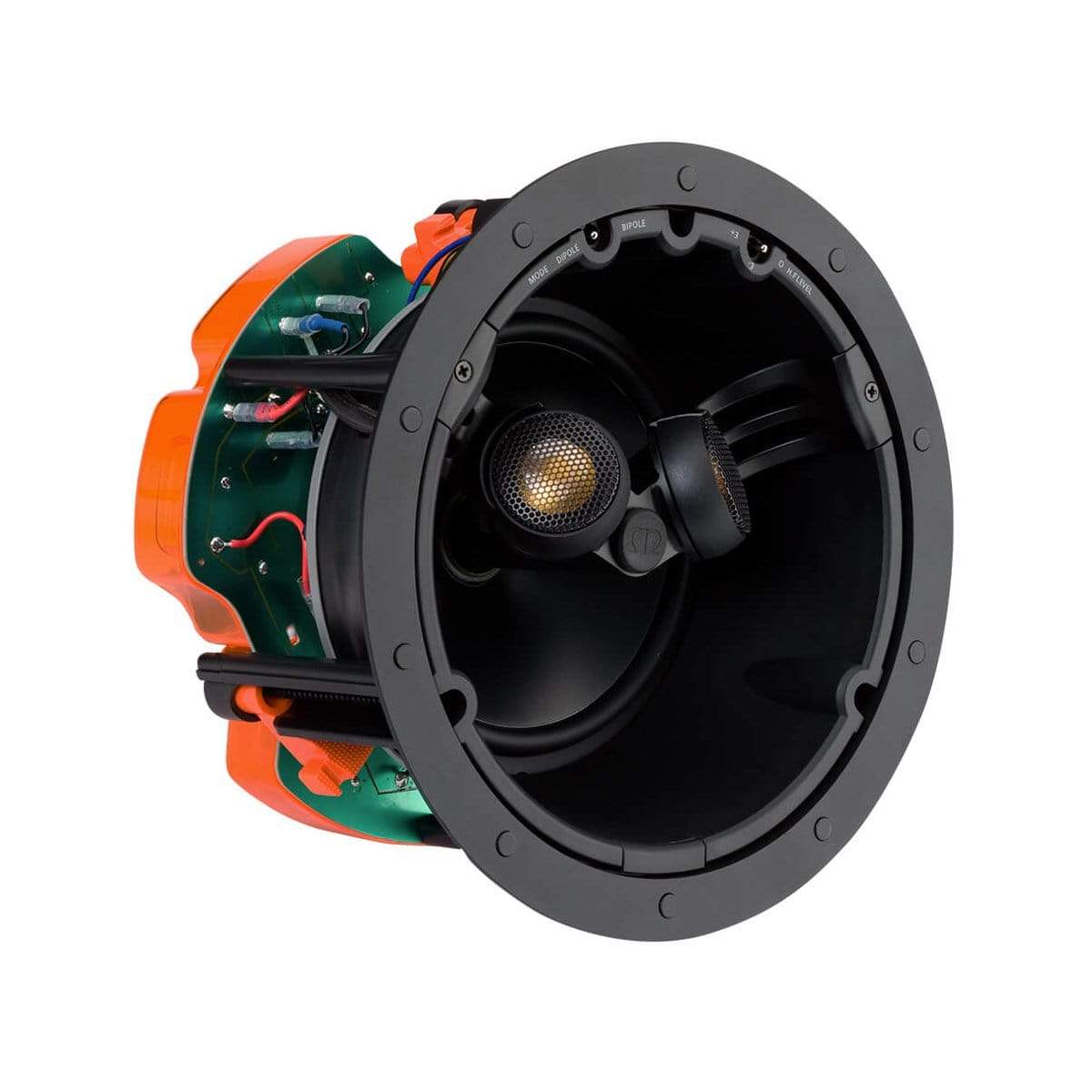

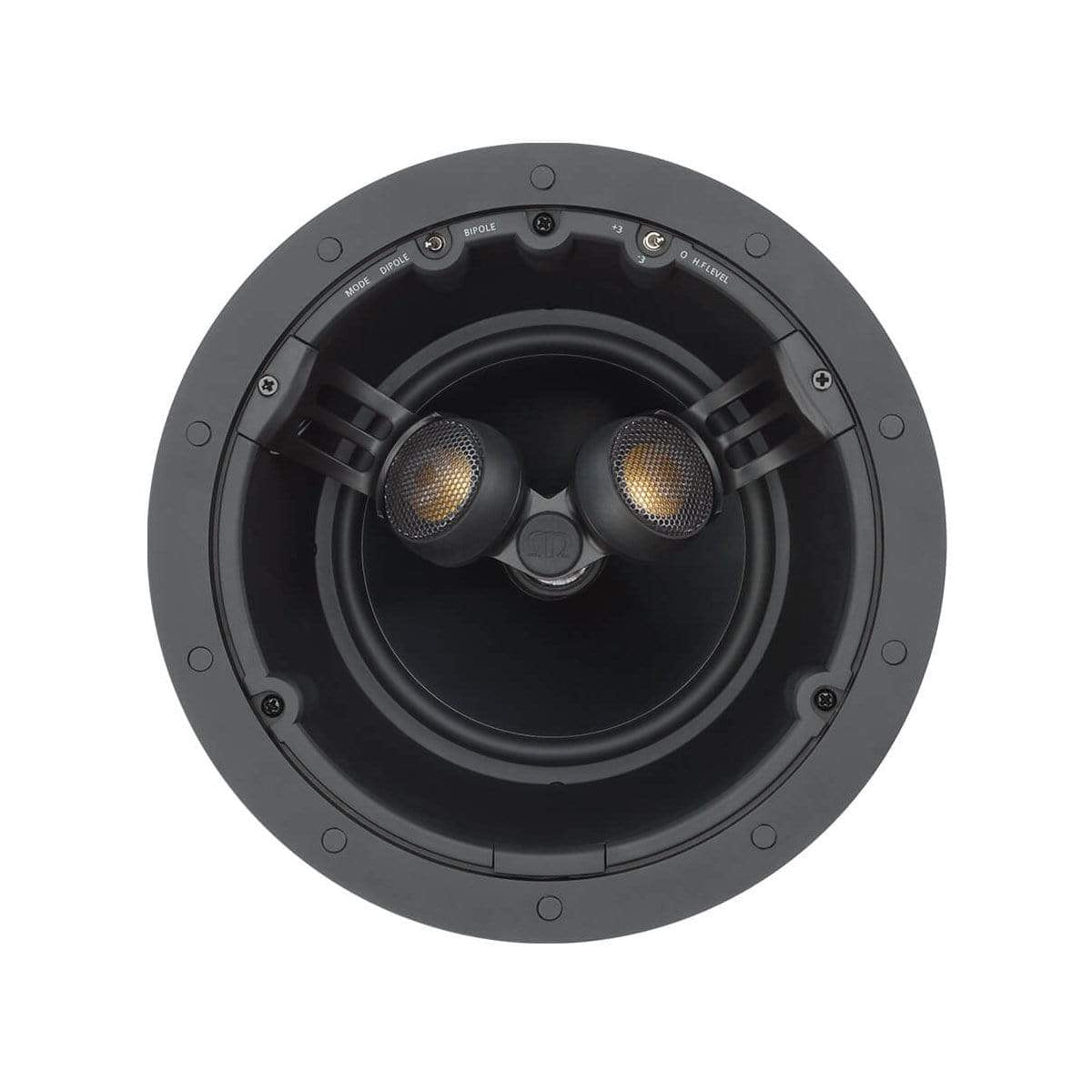

Incorporates a 6 1/2 inch C-CAM bass driver and dual 1-inch C-CAM Gold Dome tweeters mounted at a precise fixed-angle for optimised performance.

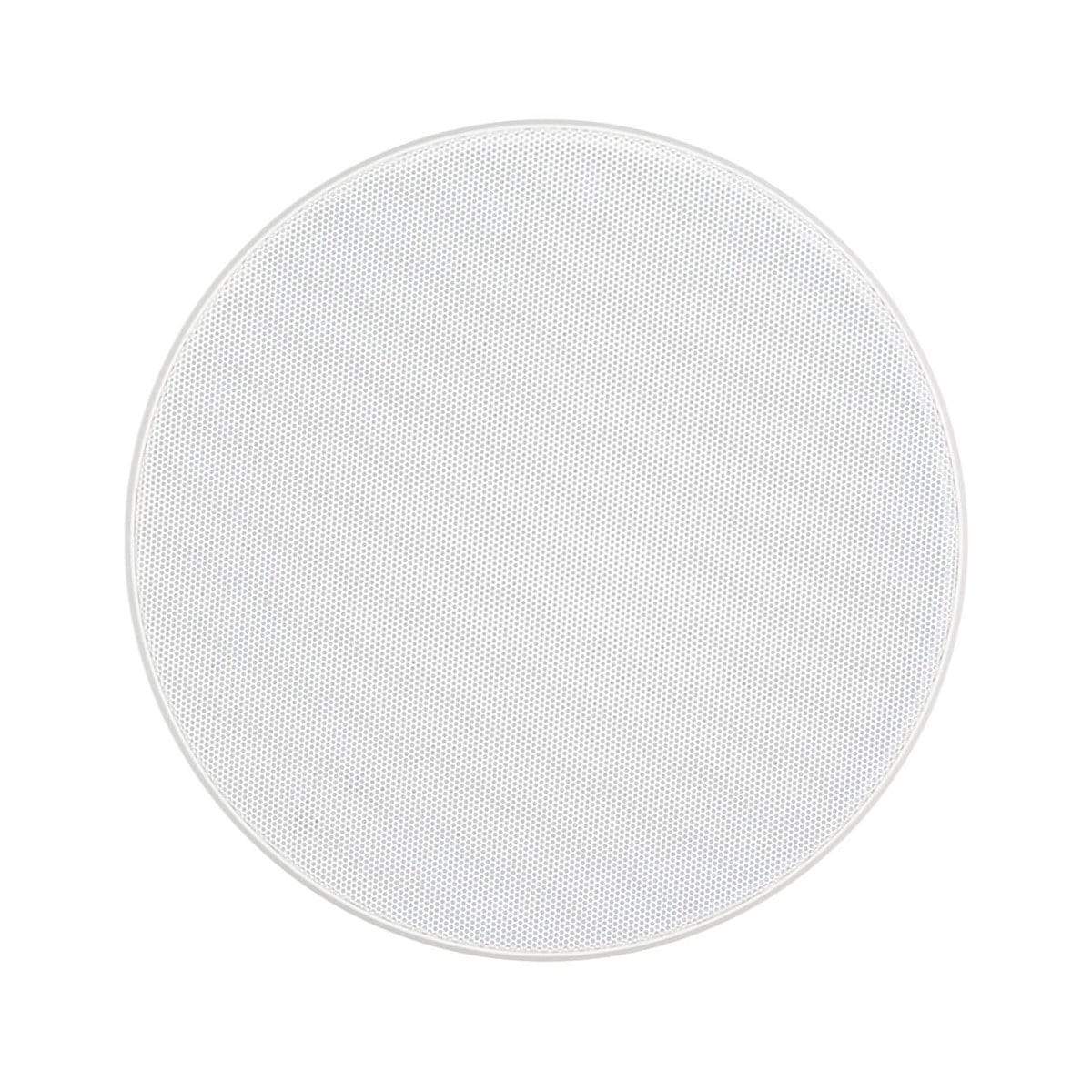

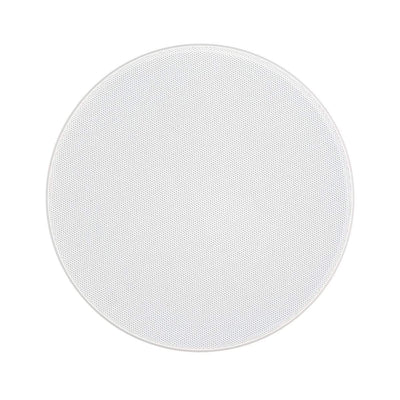

Optional square or premium grille can be used with this model.
Specifications
Frequency Response: 60 Hz – 30 kHz
Nominal Impedance: 6 ohms
Sensitivity (1W@1M): 88.5 dB
Maximum SPL: 108 dBA
Power Handling (RMS): 85 W
Recommended Amplifier Requirements: 20 – 85 W
Drive Unit Complement: 6 1/2" C-CAM cone bass driver
2 x 1” C-CAM fixed angle Gold Dome tweeters
Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
Bipole / Dipole Switch
Overall Diameter (Including Grille): 250 mm (913/16")
Overall Depth (Including Grille): 154 mm (61/16")
Mounting Depth: 150 mm (57/8")
Cut-Out Hole Diameter: 211 mm (81/4")
Optional Square Grille - Outer Dimensions: 249 x 249 mm (9 3/16")
Fixing Type: 3 position Tri-Grip dog fixings
Construction Material: Mineral filled ABS, RoHS compliant
Weight: 2.08 kg (4 lb 10 oz)
Pre-Construction Bracket: CB6 Pre-Construction Bracket (Purple)
Back Box: CCBOX-L | CMBOX-R
