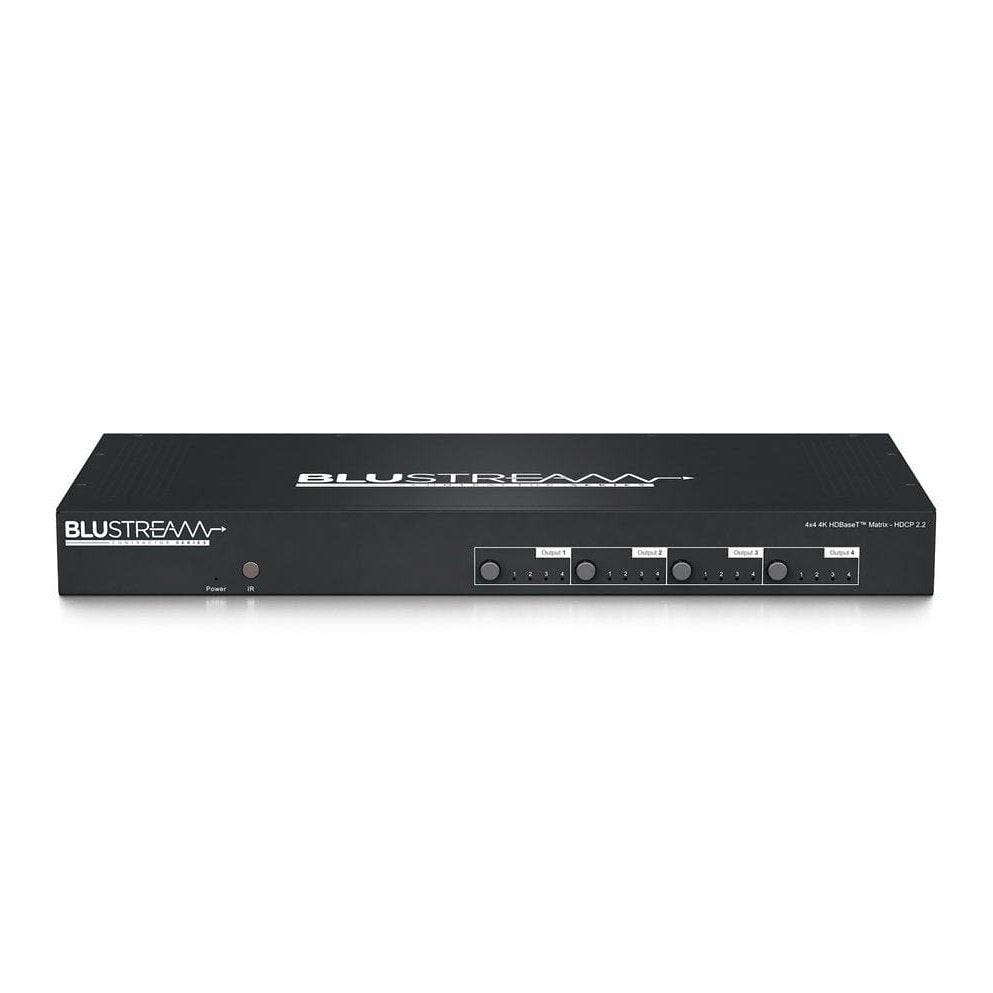

Blustream C44-KIT Contractor 4x4 HDBaseT™ Matrix Kit

Contractor 4x4 HDBaseT™ Matrix Kit - 70m (4K up to 40m), Bi-directional IR, PoC, Simultaneous HDMI / HDBaseT™ on Output 1, RS-232 & TCP/IP Control, HDCP 2.2 Compliant, Web GUI, Includes 4 x HEX70B-RX HDBaseT™ Receivers

The Contractor 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.

The C44-KIT is a 4K HDCP 2.2 matrix package, delivering HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1 and a web browser interface module for control and configuration of the matrix.

The C44-KIT is supplied with 4 x HEX70B-RX receivers.

Features

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs

• Output 1 features simultaneous HDMI and HDBaseT™ output

• Extends HDMI up to a distance of 70m over single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports 3D signal display

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• Web interface module for control and configuration of matrix

• Supports bi-directional IR on all HDBaseT outputs

• Supplied with Blustream IR Receivers and Emitters

• Control via front panel, IR, RS-232 and TCP/IP

• Supports PoC (Power over Cable) to supplied HDBaseT™ receivers

• 3rd Party drivers available for major control brands

• 1U Design for 19" rack mount integration - mounting kit included

• Advanced EDID management

• HDCP 2.2 compliant

• Supplied with 4 x HEX70B-RX receivers

Box Contents

1 x C44
4 x HEX70B-RX
1 x Rack Mounting Kit
4 x Mounting Kit for HEX70B-RX
1 x 24V/3.5A Power Supply
1 x IR Remote Control
4 x IR Emitters
5 x IR Receivers
1 x Quick Reference Guide
