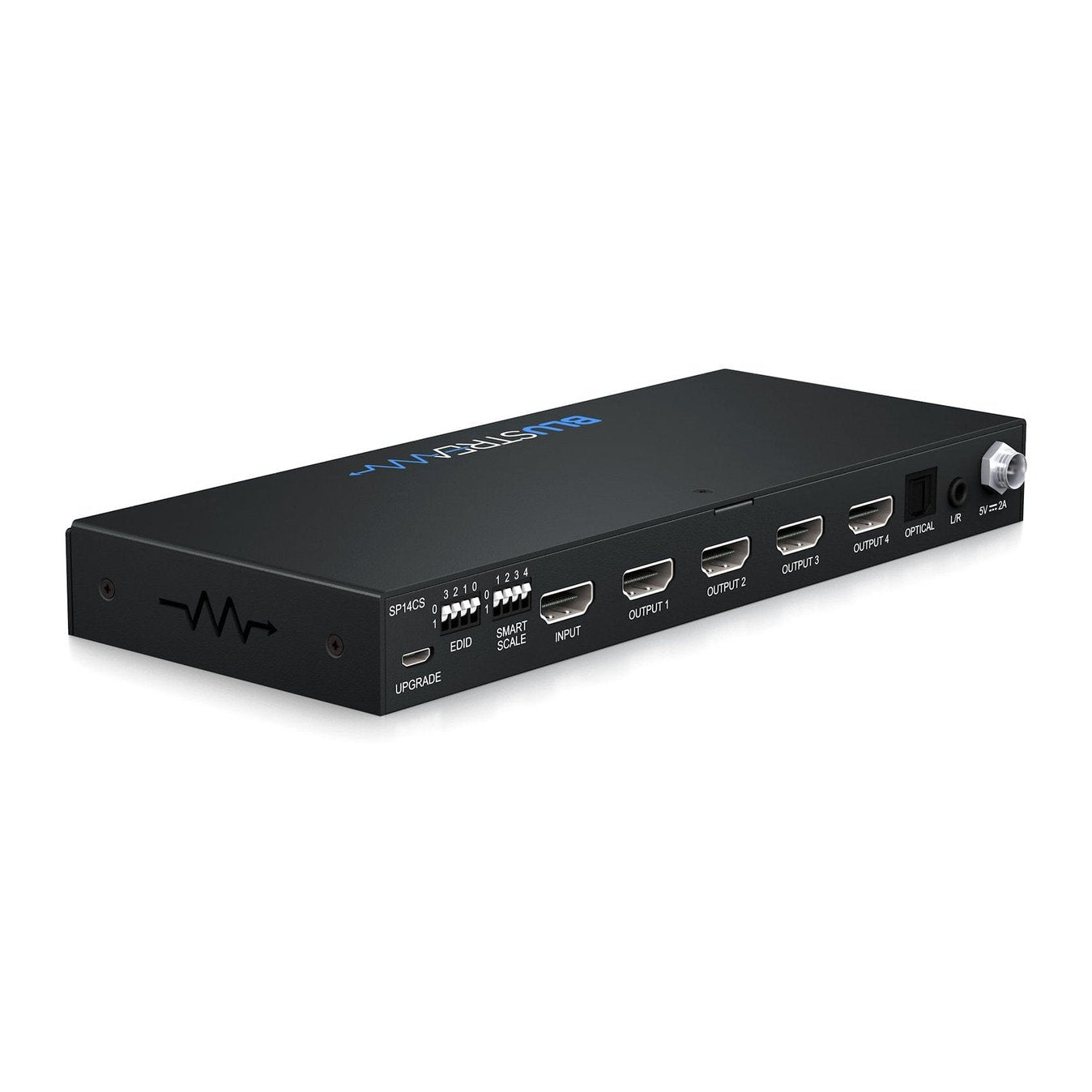

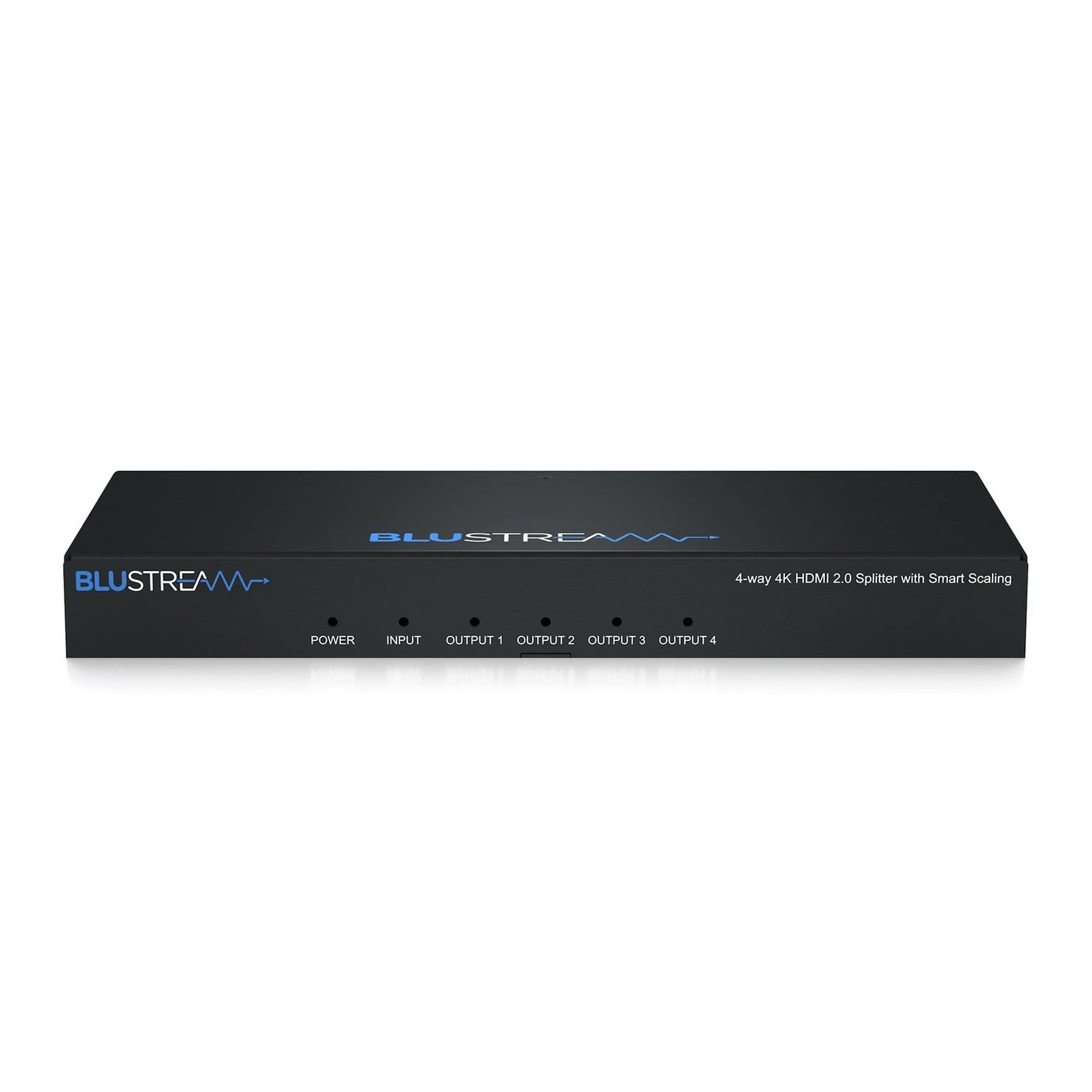

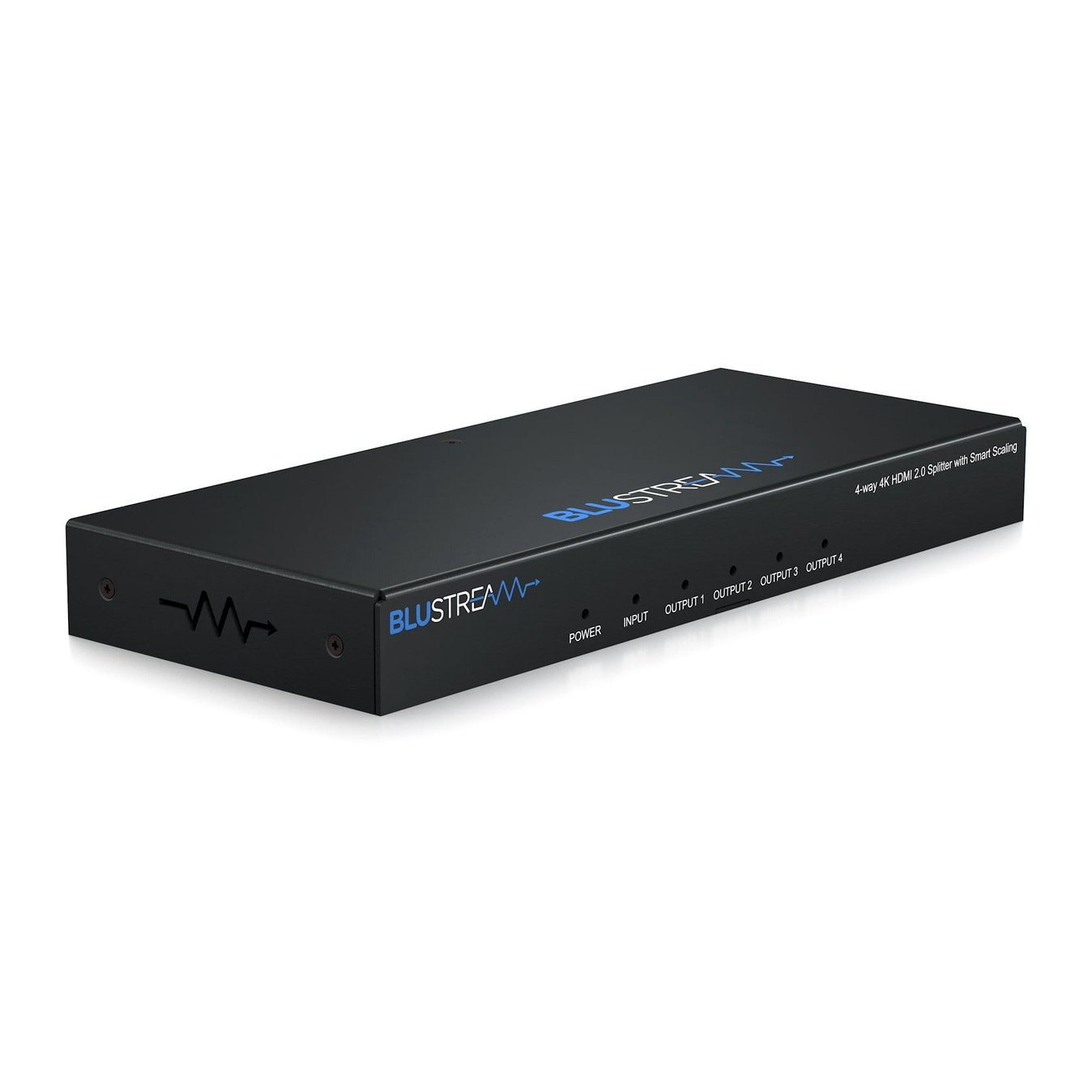

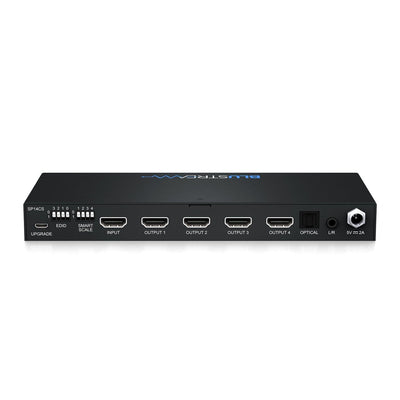

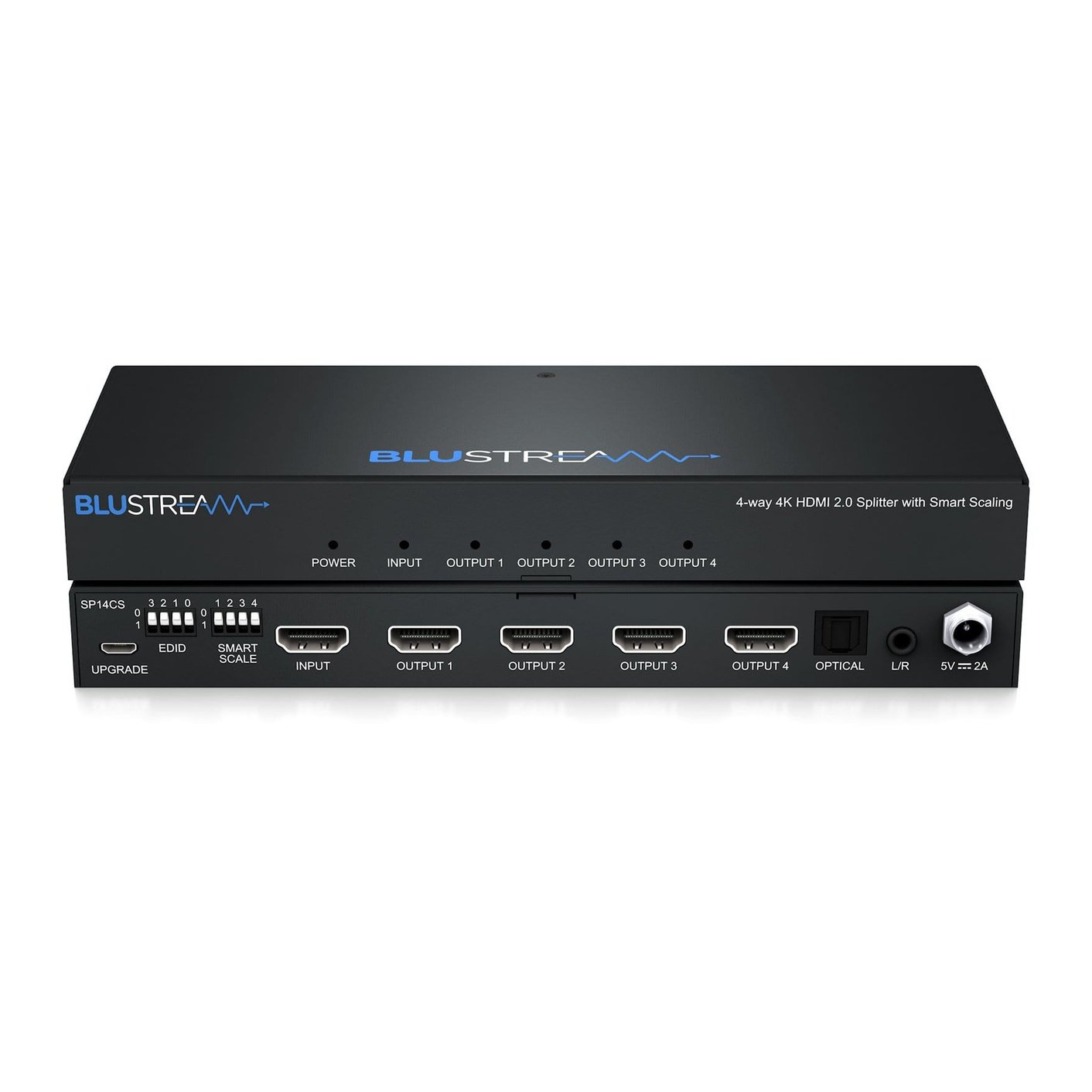

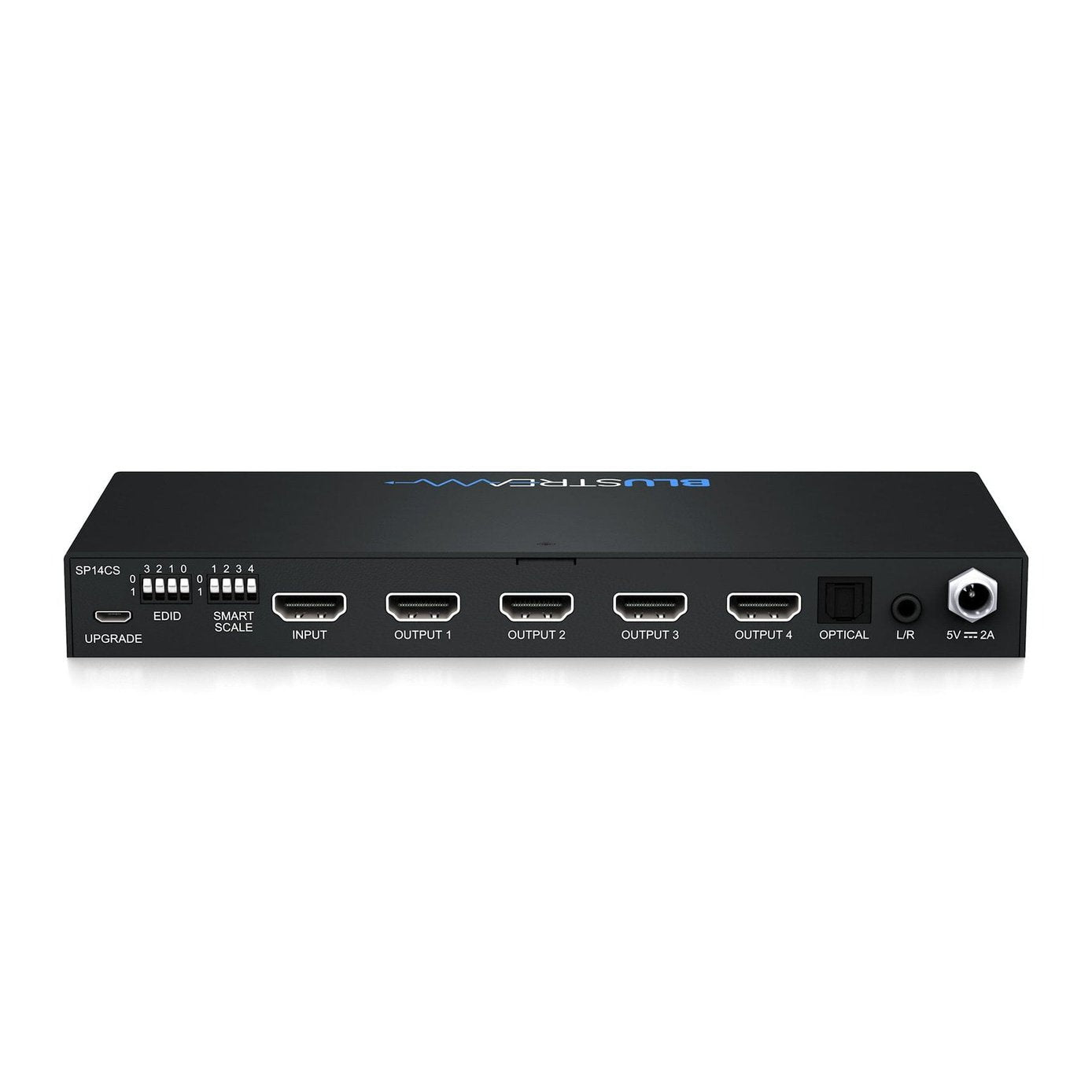

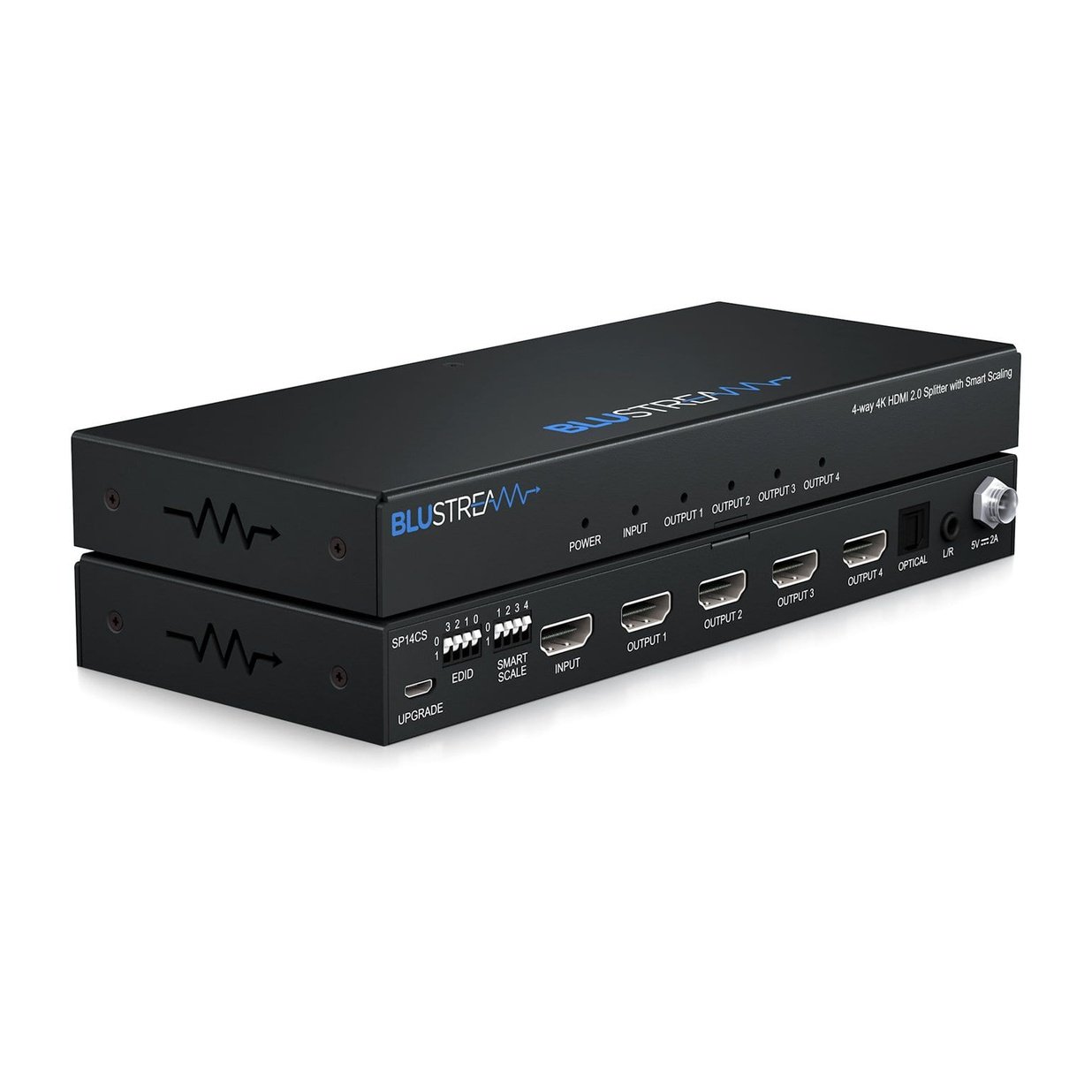

Blustream SP14CS 4-Way 4K HDMI Splitter with Smart Scaling, Audio Breakout and EDID Management

Description

Our SP14CS 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneous outputs with both digital (S/PDIF) and analogue audio breakout.

The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.

Box Contents

1x SP14CS
1x 5V/2A DC power supply
1x Mounting Kit
1x Quick Reference Guide

Key Features

• Features 1x HDMI input that is replicated to 4x HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
• Advanced EDID management
• HDCP 2.2 Support

Specifications

• Video Input Connectors: 1x HDMI Type A
• Video Output Connectors: 4x HDMI Type A
• EDID: 4-PIN DIP switch
• Smart Scale: 4-PIN DIP switch
• Audio Output Connectors: 1x Digital (Optical), 1x Analogue audio L/R (3.5mm stereo Jack)
• Dimensions (W x D x H): 203mm x 84mm x 23mm , without feet
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/2A DC
