Blustream HEX100CSKIT 100M HDBASET CSC Extender Kit

HDBaseT™ CSC Extender Set Supporting HDMI2.0 4K60Hz4:4:4 up to 70m (1080p up to 100m), Bi-directional IR & RS-232, EDID Management, HDMI Loop-Out, Audio Breakout, Bi-directional PoH (PoE), HDCP2.2

The HEX100CS-KIT HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 100m (4K to 70m).

The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.

The Receiver features simultaneous analogue stereo and digital coax audio breakout.

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Video down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K
  • 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out.
• Supports 4K 60Hz 4:4:4 UHD video up to 70m
• Extends HDMI 1080p video up to 100m
• Features 1x HDMI loop-out on HEX100CS-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:Xtransmissions
• HDMI re-clocking on the HDBaseT™ Receiver tohelp solve HDMI HDCP, compatibility and handshaking issues
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Supports bi-directional RS-232 pass through
• Supports bi-directional IR pass through
• Supplied with Blustream 5V IR receiver and emitter
• Advanced EDID management
• HDCP2.2 compliant

Specifications

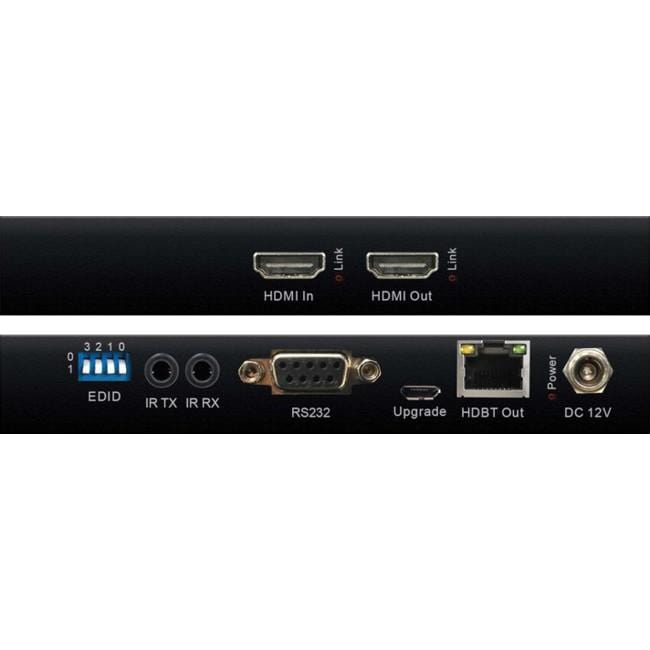

• HEX100CS-TX transmitter

  • Video Input Connectors: 1x HDMI Type A, female
  • Video Output Connectors: 1x HDBaseT™RJ45 connector, 1x HDMI Type A, female
  • RS-232 serial port: 1x DB-9 female
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • EDID DIP switch: 4-pin

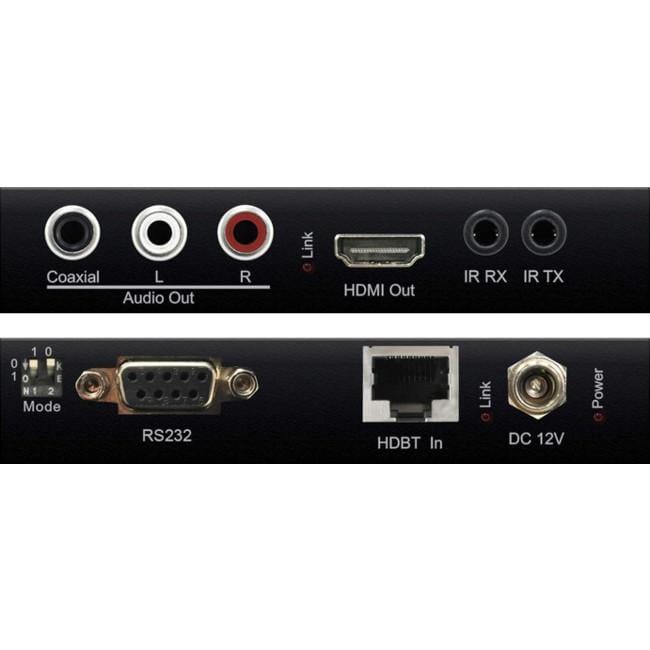

• HEX100CS-RX receiver
  • Video Input Connectors: 1x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1x HDMI Type A, female
  • RS-232 serial port: 1x DB-9 female
  • IR Input ports: 1x 3.5mm stereo jack
  • IR Output ports: 1x 3.5mm mono jack
  • Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)

• Power Supply: 12V / 2A DC, screw type connector
• Power Consumption: 12.7W
• Transmitter Dimensions (WxDxH): 143 x 134 x 22mm (without connections)
• Transmitter Dimensions (WxDxH): 143 x 141 x 22mm (withconnections)
• Receiver Dimensions (WxDxH): 113 x 124 x 22mm (withoutconnections)
• Receiver Dimensions (WxDxH): 113 x 138 x 22mm (with connections)
• Ind. Extender Weight: 0.35kg (excluding accessories)
• Carton / Box Dimensions (WxDxH): TBCmm
• Shipping Weight: 1.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting kits included

Box Contents

• 1x HEX100CS-TX

• 1x HEX100CS-RX

• 2x Mounting brackets

• 1x 12V / 2A power supply

• 1x IR emitter

• 1x IR receiver

• 1x Quick Reference Guide
