Blustream CAT100AU 100M Digital Audio Extender

Model: CAT100AU | Warranty: 3 Years | Product Type: AV Extenders
Blustream Blustream CAT100AU 100M Digital Audio Extender AV Extenders
  • Local ShippingProduct Sent From Australia
  • Free ShippingFast Free Australian Shipping
  • Australian WarrantyLocal Australian Warranty
  • Secure ShoppingSecure Online Payment
  • $259.00

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Apple Pay
  • Bitcoin
  • Ethereum
  • Local ShippingProduct Sent From Australia
  • Free ShippingFast Free Australian Shipping
  • Australian WarrantyLocal Australian Warranty
  • Secure ShoppingSecure Online Payment

The CAT100AU Audio over CAT 5/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to100m).

This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output.

Ideal way to avoid Lip Sync in an installation

Key Features

  • Extend optical and coaxial digital audio signals up to distances of 300m over a single CAT cable
  • Both optical and coaxial digital can be distributed at the same time
  • Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left/right audio output
  • Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and192kHz up to 24-bit resolution
  • Ultra low jitter and high fidelity design
  • CAT100AU supports distances of up to: 192kHz - 100m, 96kHz - 150m, ≤48kHz - 300m

Specifications

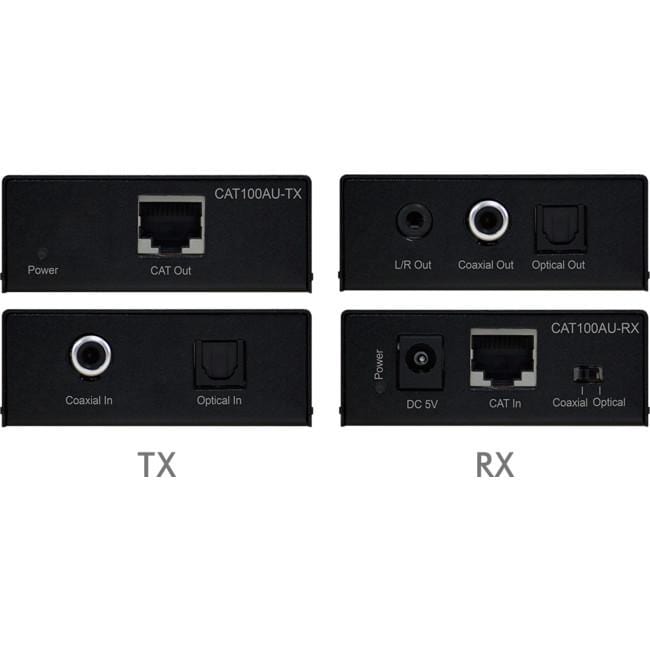

  • CAT100AU-TX - Transmitter

    • Audio Input Connectors: 1x Optical (SPDIF) &1x RCA (SPDIF)

    • Output Connectors: 1x RJ45

  • CAT100AU-RX - Receiver

    • Input Connectors: 1x RJ45 & 5V/1A DC

    • Output Connectors: 1x Optical (SPDIF), 1x RCA (SPDIF) & 1x Analogue left/right - 3.5mm stereo audio jack

  • Casing Dimensions (WxDxH): 69x64x24mm

  • Dimensions including connections (WxDxH): 76x64x28mm

  • Shipping Weight: 0.4kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature : -4°F to 140°F (-20°Cto 60°C)

  • Power Supply: 5V/1A DC





Box Contents

1 x CAT100AU-TX
1 x CAT100AU-RX
1 x 5V/1A DC power supply
1 x Mounting kit
1 x User manual
