Name: AC Infinity AIRPLATE S1 AV Cabinet Cooling System with 80mm Fan
Brand: AC Infinity
SKU: AI-CFS80BA
Price: 85.0 AUD
Availability: OutOfStock
Rating: 4.4 (23 reviews)

AC Infinity AC Infinity AIRPLATE S1 AV Cabinet Cooling System - 80mm Fan Component Cooling

$85.00

Quantity

[{"id":43549900079362,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"AI-CFS80BA","requires_shipping":true,"taxable":true,"featured_image":{"id":38826884071682,"product_id":7944103002370,"position":1,"created_at":"2023-02-01T19:43:24+11:00","updated_at":"2023-02-01T19:43:24+11:00","alt":"AC Infinity AC Infinity AIRPLATE S1 AV Cabinet Cooling System - 80mm Fan Component Cooling","width":1200,"height":1200,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/ac-infinity-component-cooling-38826868244738.jpg?v=1675241004","variant_ids":[43549900079362]},"available":false,"name":"AC Infinity AIRPLATE S1 AV Cabinet Cooling System with 80mm Fan - Black","public_title":"Black","options":["Black"],"price":8500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"AC Infinity AC Infinity AIRPLATE S1 AV Cabinet Cooling System - 80mm Fan Component Cooling","id":31422887035138,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/ac-infinity-component-cooling-38826868244738.jpg?v=1675241004"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43549900112130,"title":"White","option1":"White","option2":null,"option3":null,"sku":"AI-CFS80WH","requires_shipping":true,"taxable":true,"featured_image":{"id":38826884694274,"product_id":7944103002370,"position":2,"created_at":"2023-02-01T19:43:32+11:00","updated_at":"2023-02-01T19:43:32+11:00","alt":"AC Infinity AC Infinity AIRPLATE S1 AV Cabinet Cooling System - 80mm Fan Component Cooling","width":1200,"height":1200,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/ac-infinity-component-cooling-38826868146434.jpg?v=1675241012","variant_ids":[43549900112130]},"available":false,"name":"AC Infinity AIRPLATE S1 AV Cabinet Cooling System with 80mm Fan - White","public_title":"White","options":["White"],"price":11900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"AC Infinity AC Infinity AIRPLATE S1 AV Cabinet Cooling System - 80mm Fan Component Cooling","id":31422887690498,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/ac-infinity-component-cooling-38826868146434.jpg?v=1675241012"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Buy now, pay later with:

Free Delivery Australia Wide

Local Australian Warranty

1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

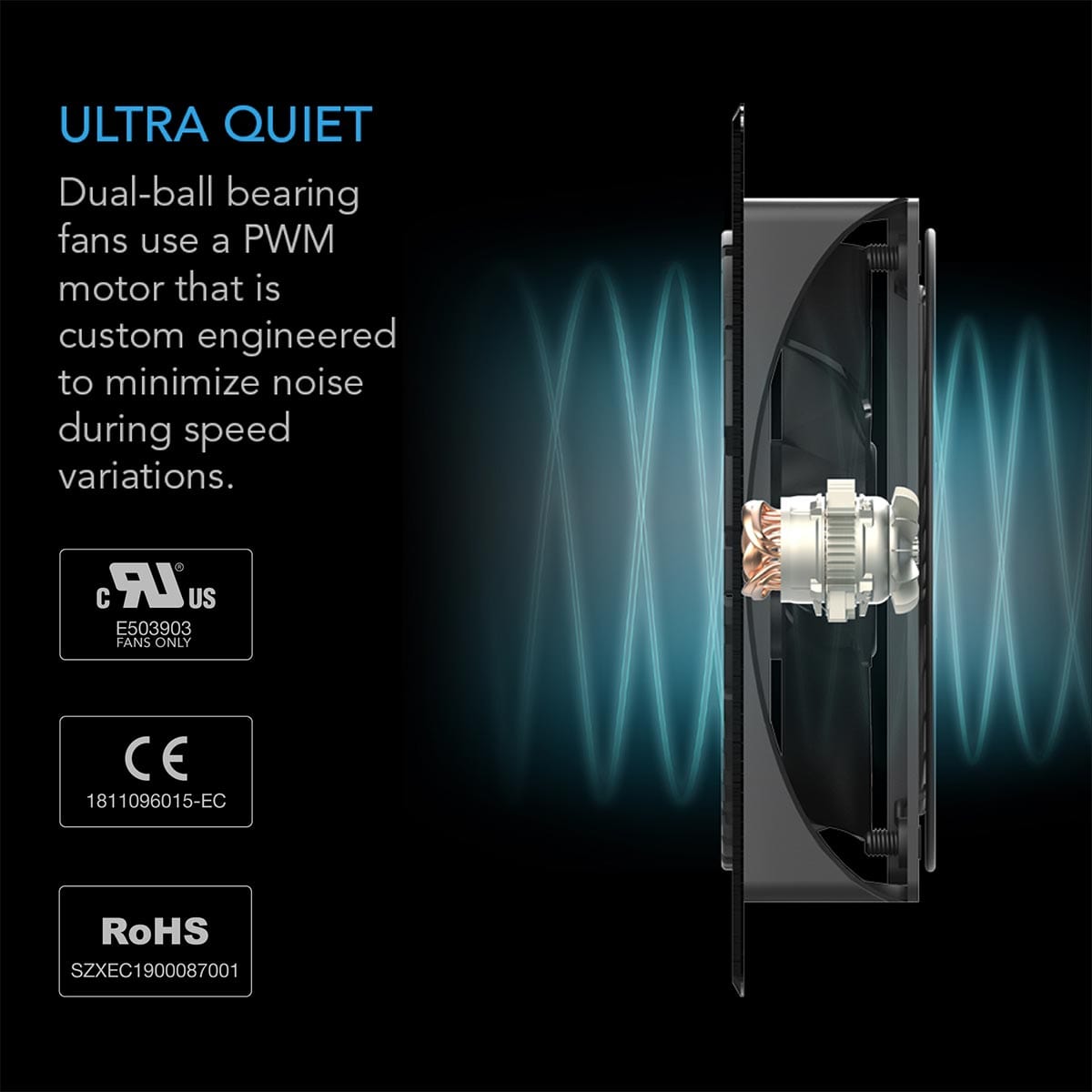

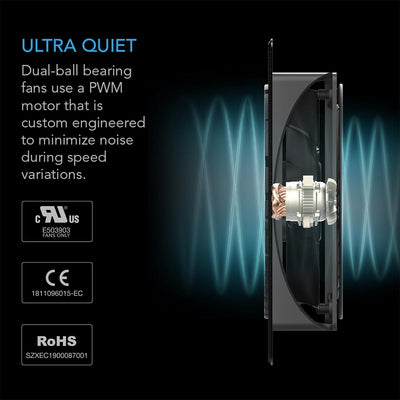

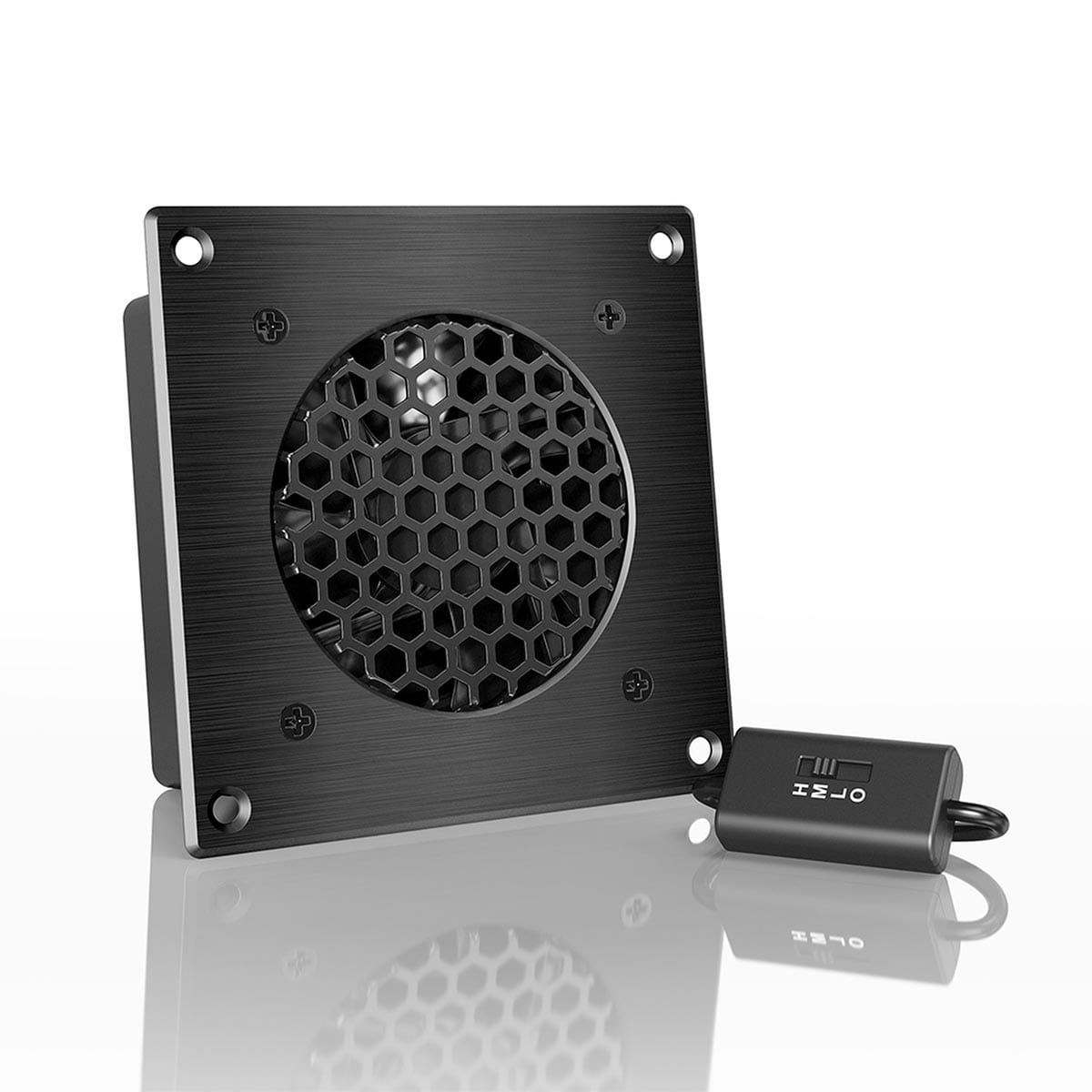

The ultra-quiet fan system is designed to cool home theatres, entertainment centres, and audio video cabinets. Features a speed controller and 6 foot power cord. Included fans use a custom motor engineered to minimise noise during speed variations and are certified by CE and RoHS.

Contains AC Infinity axial fans ACX-FD8025(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminium frame with a modern brushed black finish.

Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through an USB port or standard wall outlet.

Key Features

An ultra-quiet UL-certified fan system designed for cooling cabinets that requires minimal noise
Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels
Contains a CNC machined aluminium frame with a modern brushed black finish
Powered by wall outlet or USB port, included Turbo Adapter increases performance by 25%
Dimensions: 4.6 x 4.6 x 1.3 in.
Airflow: 26 CFM
Noise: 17 dBA
Bearings: Dual-Ball

Speed Controller and Boost Adapter

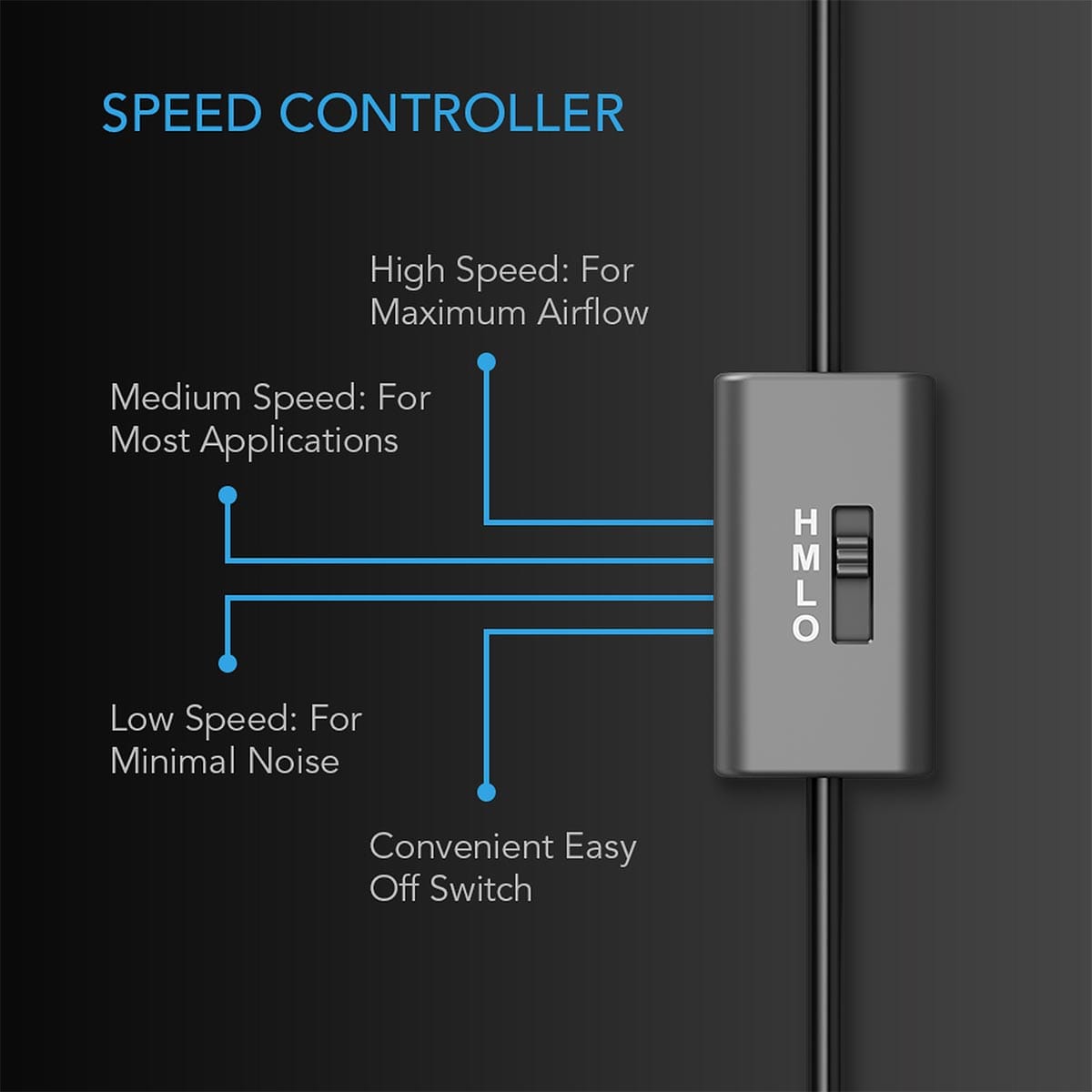

The in-line multi-speed controller with power switch allows setting the fan’s speed to optimal noise and airflow levels for various environments. The included Boost Adapter not only allows the fan to be powered through a wall outlet, but increases its performance by up to 25%.

Connecting Additional Units

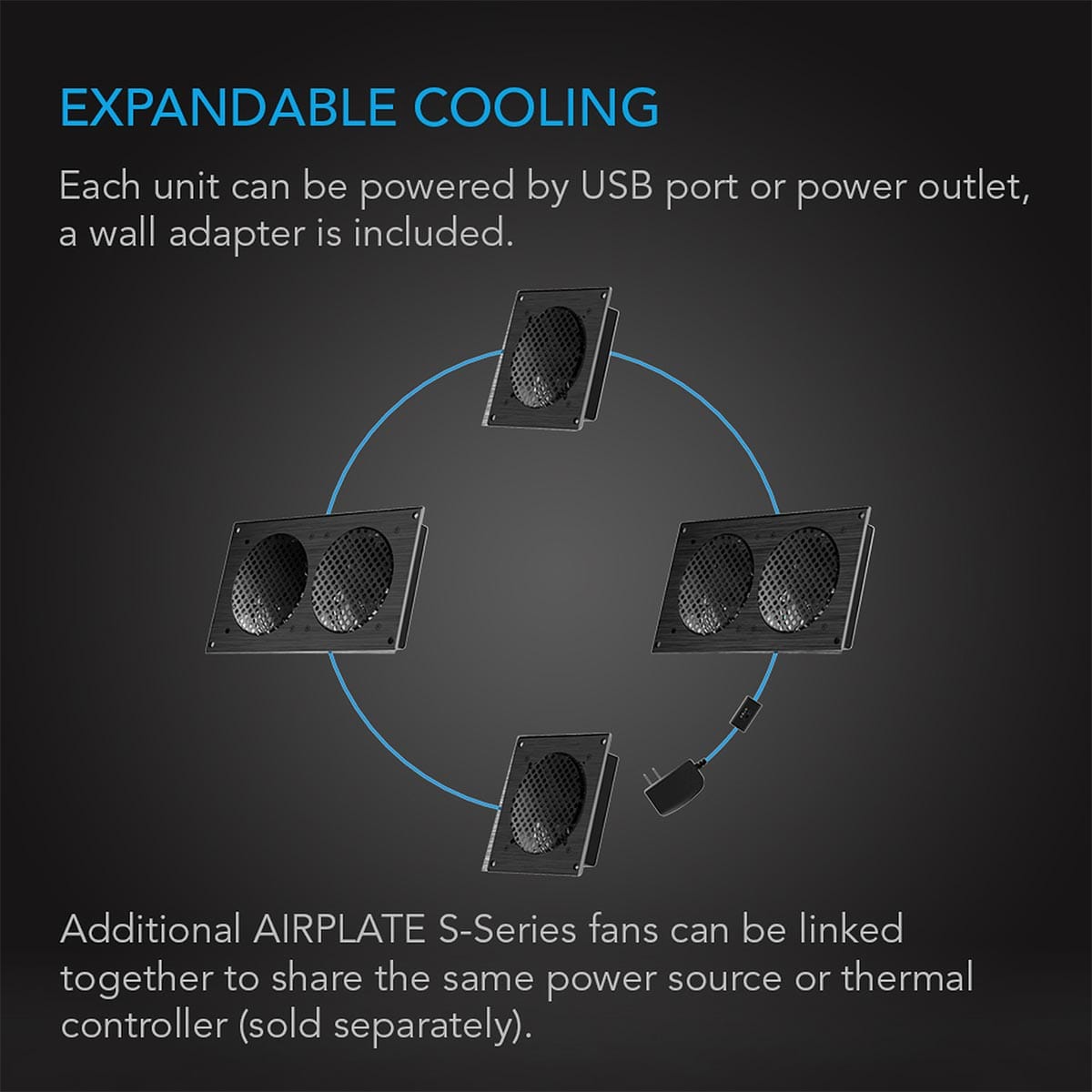

For cabinets that requires more airflow, each unit can be connected to additional AIRPLATE S and T series cabinet fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S7 contains two fans and AIRPLATE S9 contains three fans. All setups with more than four daisy-chained fans must have their inline speed controller set to high to prevent overload, e.g. two AIRPLATE S9 units daisy-chained together.

Applications

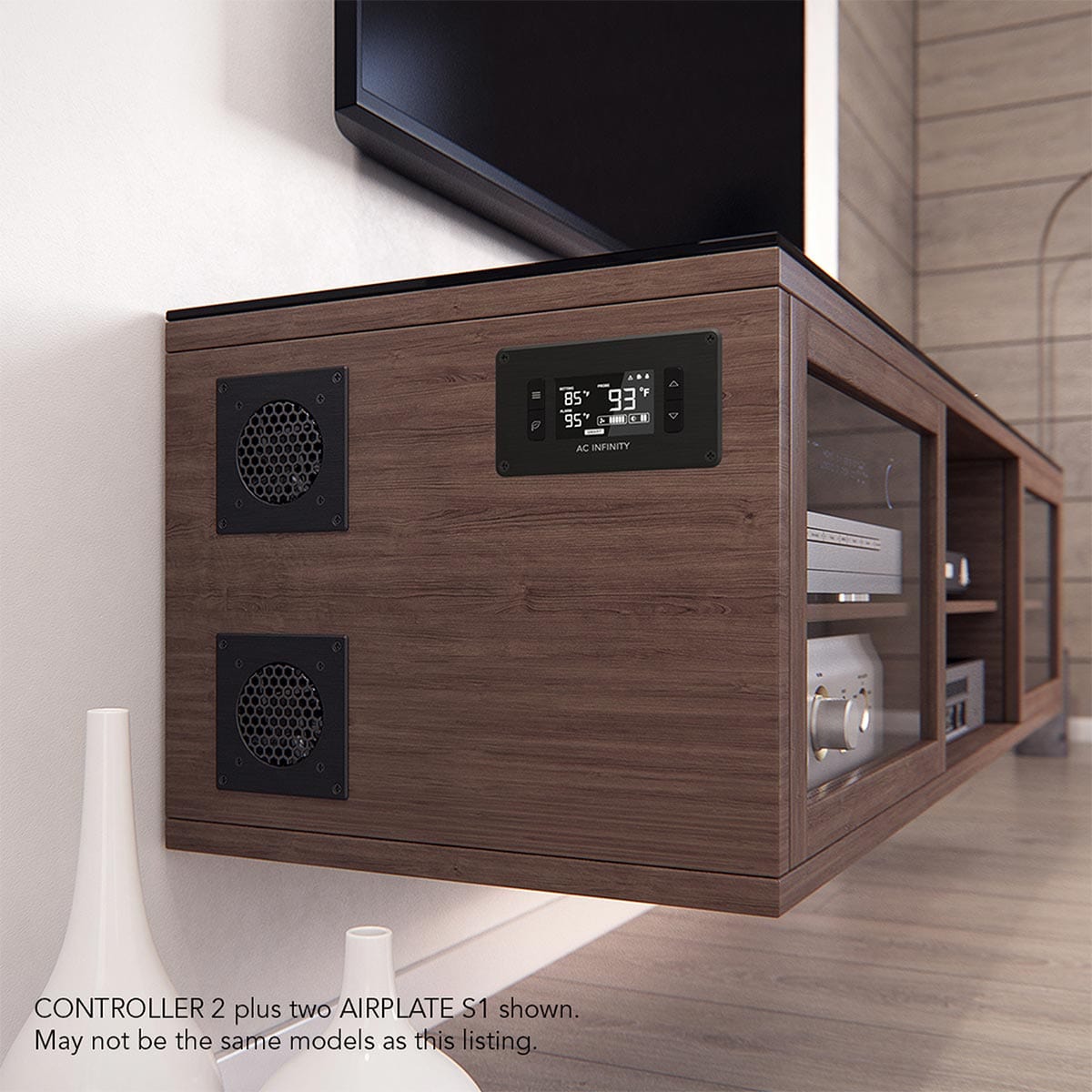

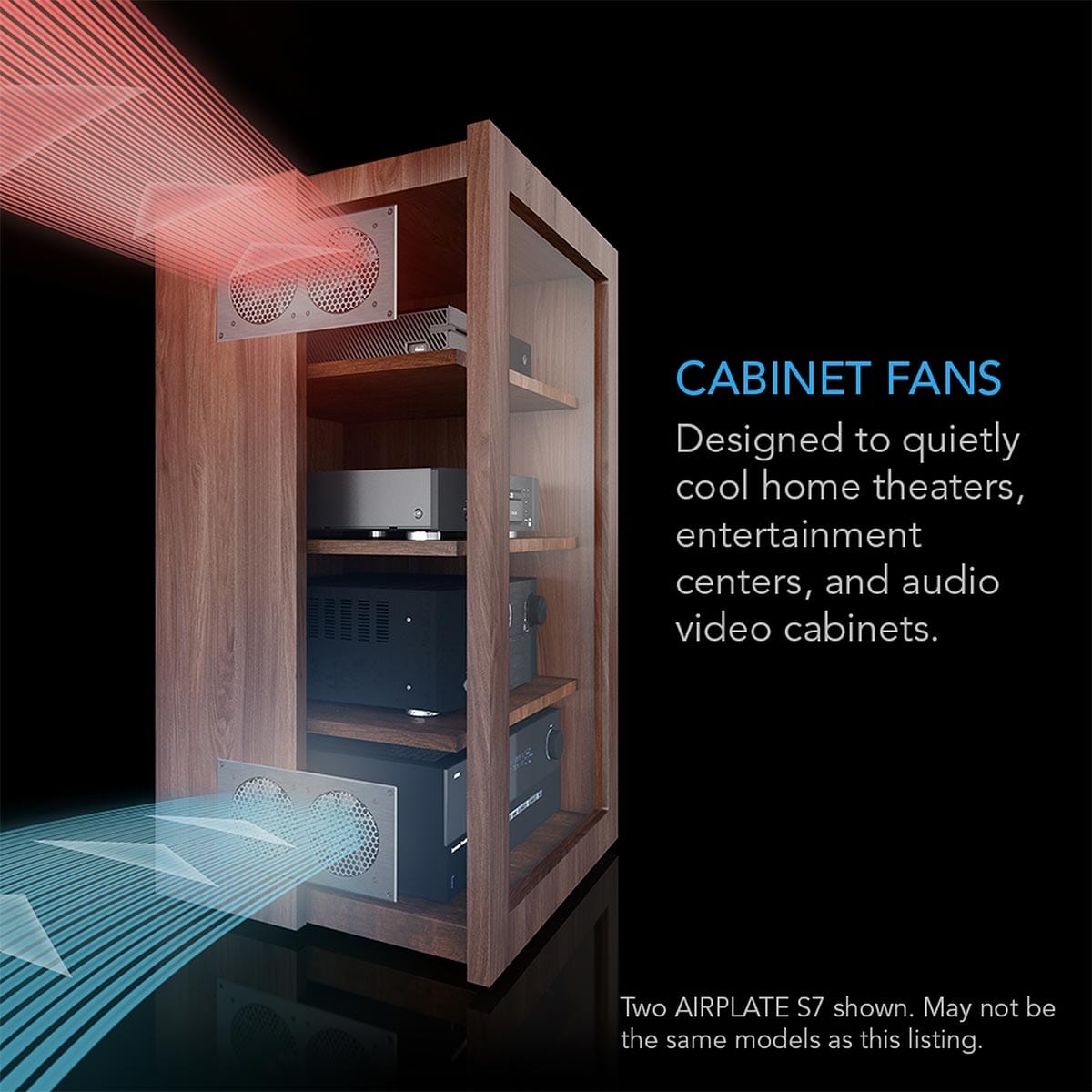

This ultra-quiet cooling system is popular in a variety of applications including home theatres, entertainment centres, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

Specifications

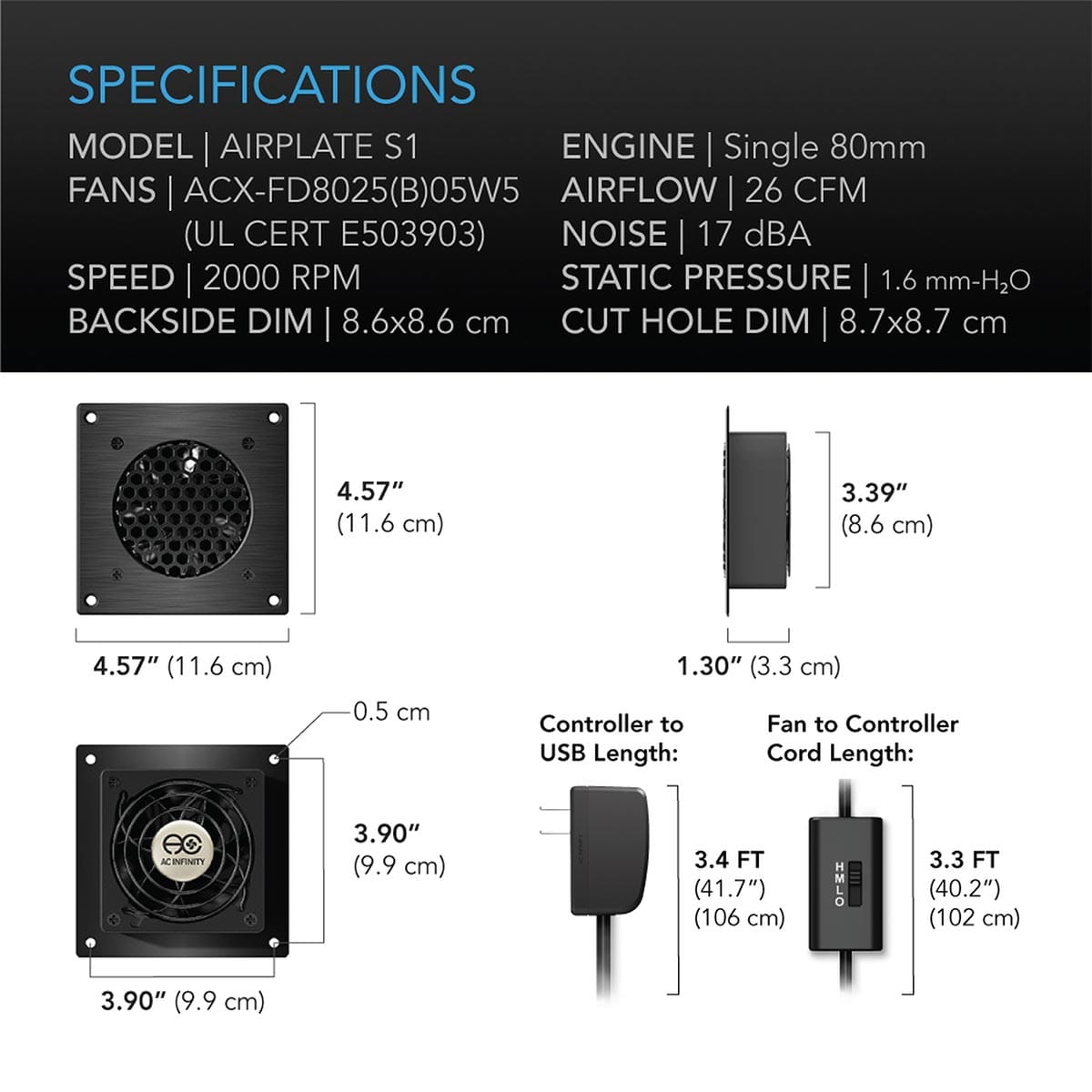

Product and Mounting Dimensions
Total Dimensions	11.6 x 11.6 x 3.3 cm (4.57 x 4.57 x 1.30 in.)
Backside Enclosure Dimensions	8.6 x 8.6 cm (3.39 x 3.39 in.)
Required Mounting Hole	8.7 x 8.7 cm (3.42 x 3.42 in.)
Hole to Hole Distance	9.9 x 9.9 cm (3.90 x 3.90 in.)
Screw Hole Size	Ø 0.5 cm (Ø 0.197 in.)
Cord Length	183 cm (6 Feet)

Product Performance and Technical Specs
Total Airflow	26 CFM
Total Noise	17 dBA
Static Pressure	1.6 mm-H2O
Operating Voltage	3 to 7 V DC
Power	1.1 W
Current	0.22 A
Wall Adapter Input	100 to 240 V AC
Operating Humidity	35 to 85% RH
Operating Temperature	0 to 158°F
Fan Bearings	Dual Ball
Mounting Positions	Horizontal or Vertical
L10 Life Expectancy	67,000 Hours
Fan Quality Approvals	UL, CE, RoHS
